SOLD Used Wemhoner Feed Through Laminating Press Line



USOLD sed Wemhoner Feed Through Laminating Press Line

Approximate replacement cost for the line: $1 100 000.

Application: Upgrading of plane wood based panel and blanks in through feed operation Pressing of MDF particleboard thin boards etc. with veneers finish foils HPL CPL etc.

Products: Furniture panels furniture elements flooring parquet interior doors worktops sandwich components thermal oil heated top and bottom platens.

Automated roller conveyor for the transfer of board stacks;

  • Southworth LS6-84 (60 x 120) 6 000# capacity scissor lift with powered roller conveyor top
  • Midwest Automation PF 2510 Panel Feeder automatic mechanical feeding of board stacks;
  • Wemhoner 70” Top and Bottom Panel Cleaning Brush
  • Hymmen 70” Top and Bottom Glue Spreader
  • automated knife edge disc conveyor system for transportation of glued panels between glue application process and layup station
  • laying station with automatic belt conveyor with light curtains
  • Split belt transfer conveyor with dual feeding belts before the loading process
  • Wemhoner 69” x 157” (5’ x 12’max working width) single opening feed through hot press.

Also includes a…

  • 3.5’ steel press platens (thermal oil heated)
  • (10) down-stroke hydraulic cylinders
  • (4) open/lift cylinders 130 PSI pressure throughout the platen area bottom maylar conveyor belt and top mylar film pad cycle times: 25-90 seconds

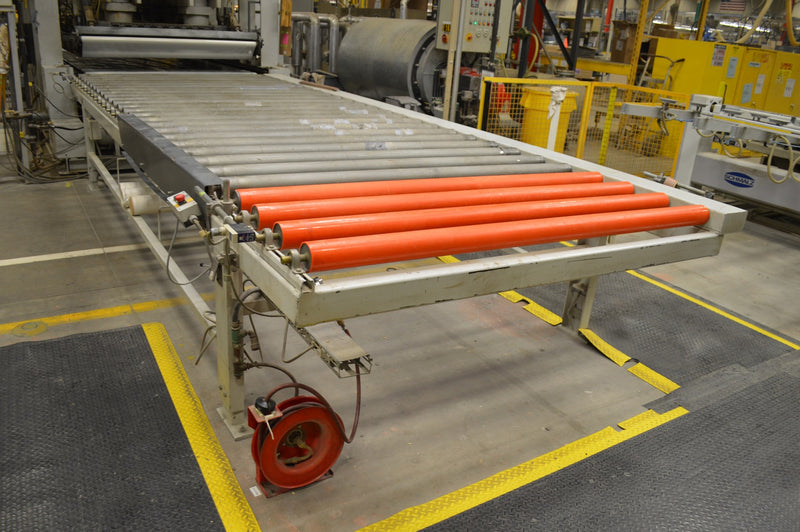

  • rear out-feed roller conveyor table
  • free standing operator control station
  • Simens simatic OP17 controller

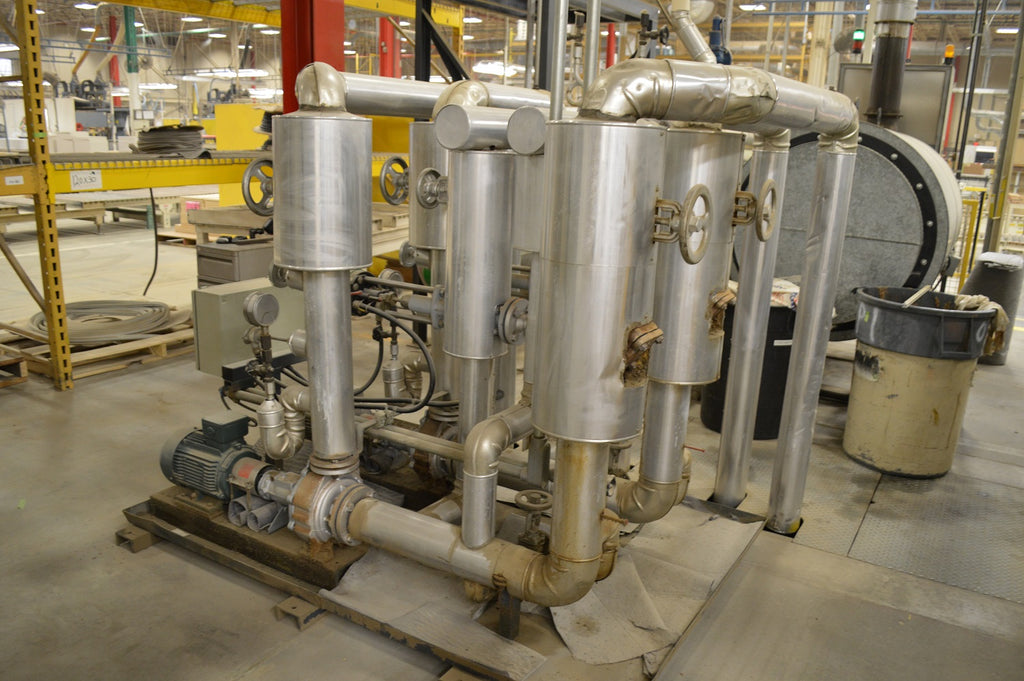

  • NESS Boiler natural gas powered and thermal fluid heating system.
