SOLD Used Four Head Moulder - Weinig Quattromat 23-P



SOLD Used Weinig Four Head Moulder - Quattromat 23-P
Year: 2001
Serial Number: 94902.

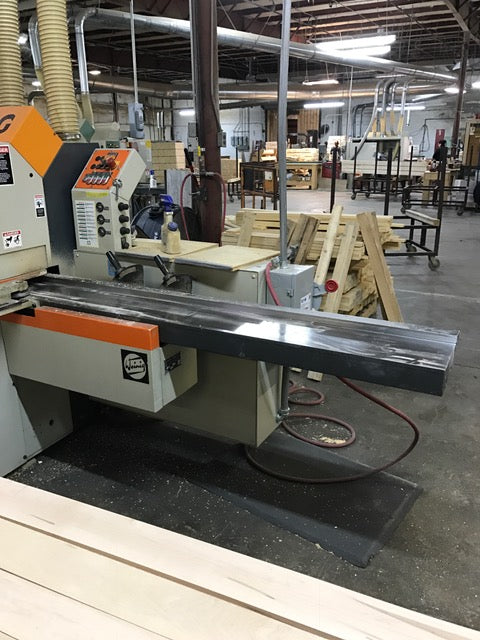

This used four-head moulder manufactured by Weinig is equipped with a six foot six inch long adjustable straightening infeed table with fence and comes with operating and parts manuals.

  • working capacity of 9-1/16" in width x 4-3/4" in thickness
  • 5.5 kW (7.5 HP) motor on the first bottom spindle
  • 7.5 kW (10 HP) motor on the right and left horizontal spindles
  • 11 kW (15 HP) motor on the top spindle
  • separate 2 HP feed motor delivering a feed rate of 26 F.P.M.

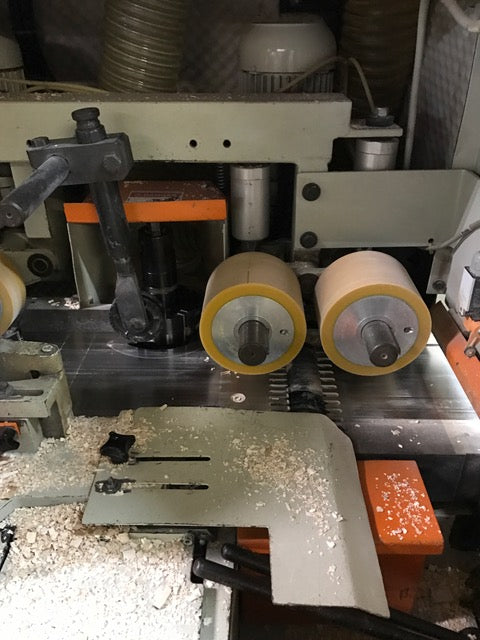

  • feed rollers opposite left spindle axially adjustable
  • lateral pressure roller opposite right spindle
  • telescopic; idle roller in infeed table
  • full sound and safety enclosure with one-point dust extraction connection
  • mechanical spindle brakes
  • electrical controls wired for AC 3/60/480 volt operation
  • radial and axial adjustments on all spindle with digital readouts.

Contact us today
Phone 678.642.9722
