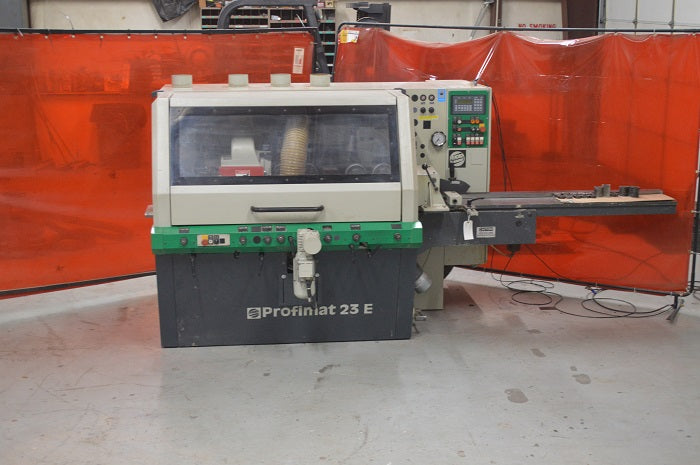

SOLD Used 5 Head Moulder with ATS Positioning System - Weinig Model P23E



SOLD Used Weinig 5 Head Moulder with ATS Positioning System - Model P23E

This used 5 head moulder manufactured by Weinig features a 6' x 6"infeed straightening table.

Technical Specifications:

  • (B-R-L-T-B)
  • working cap. 9-1/16 in. x 4-11/16 in.
  • Head Sequence: 15 HP right & left by 15 HP
  • top 15 HP and bottom 15 HP motor
  • Spindles: 1-1/2 in. w/ cutterhead speed of 6 000 RPM
  • mechanical readouts on all spindles
  • Feed System: Feed motor 3 HP
  • variable speed of 20-78 FPM
  • (1) powered feed roller at outfeed end on the machine
  • Infeed: straightening 6'6" table
  • side pressure roller mounted to infeed table
  • Features: central lubrication system
  • table inserts for right/left vertical spindles and manual waxilit pump
  • full sound and safety enclosure

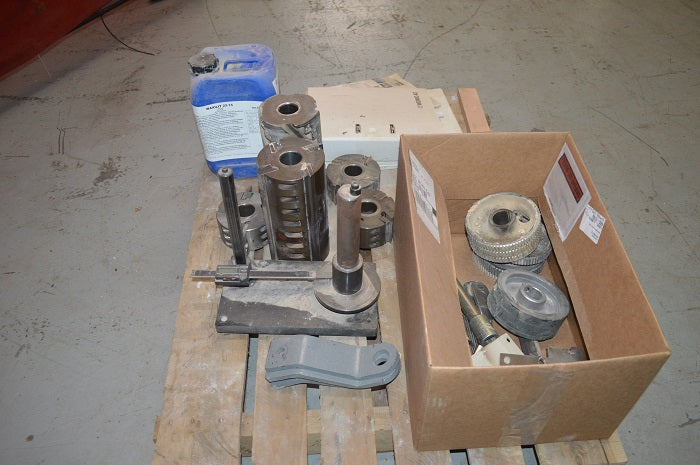

  • operator/spare parts manual
  • W/ ATS postioning system of moulder heads
  • 99 programs (workpiece dimensions) can be saved. In automatic mode
  • 2 spindle axes radially position on the programmed values (left; front-back and upper; high-low)
  • w/ ATS measuring stand

For additional information and shipping quotes...

Contact Stan at First Choice Industrial
Phone 678.642.9722
