SOLD Used CNC Controlled Drill and Dowel Inserting Machine - Weeke 060/12/NA



SOLD Used Weeke CNC Controlled Drill and Dowel Inserting Machine

This used CNC controlled drill and dowel inserting machine manufactured by Weeke can process up to 4 parts per set up by utilizing right right center left center and left positioning or the center stop can be retracted for working large panels 4 workpiece clamps activated by foot pedal hold piece at each station.

Technical Specifications:

  • Configured for use of pre-glued dowels (connect directly to water supply - not tanks)
  • Pneumatic control of center stop as well as left and right fences
  • Open end table design allows for machining of parts longer than 48" on limited basis
  • CNC positioning of the X Y and Z axes
  • Oversized digital AC servo motors
  • Maximum panel length: 49.2" Minimum panel length: .79"
  • Maximum panel width: 31.5"
  • Minimum panel width: 1.97"
  • Maximum panel thickness: 2.36"
  • Minimum panel thickness: .39"
  • Maximum panel length for active center stop: 23.5"
  • Horizontal drilling aggregated with (3) individually selectable spindles
  • (1) dowel injector (32 mm distance from drilling spindle)
  • Glue injector (currently water) with adjustable glue/water amount
  • Dowel size: 8 x 30/8 x 35 mm
  • Vibrating hopper for automatic dowel feeding

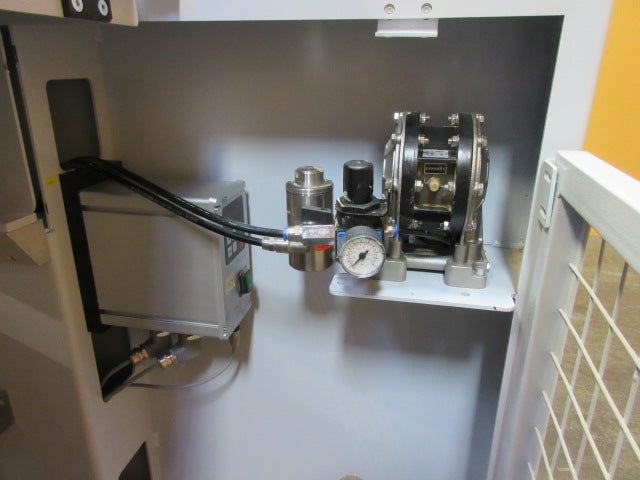

  • Low pressure pump for water/glue Microsoft Windows based control with WoodWop programming
  • Large 17" display Machine software bundle (preloaded on machine)
  • WoodWop ABDWork Tool Data Base Production List Software
  • Schuler MDE Basic Includes: manuals CD as well as PDF versions stored on machine containing operations and maintenance instructions
  • Drill shank diameter: 10 mm
  • Total length of drill bit: 70 mm
  • Amperage (nominal): 16/8 Amps @ 208/480 Volt Note
  • Voltage supplied must not fluctuate in excess of +/- 5% of its stated value
  • Multi-tap transformer for 208/230/460/480 volt operation
  • Compressed air requirement: 102 psi (7 Bar)
  • Dust extraction outlet: 80 mm Machine dimensions: 101" L x 50.6" W x 75.6" T
  • Machine weight: 2 645 lbs.

For additional information and shipping quotes...

Contact Stan at First Choice Industrial
Phone 678.642.9722
