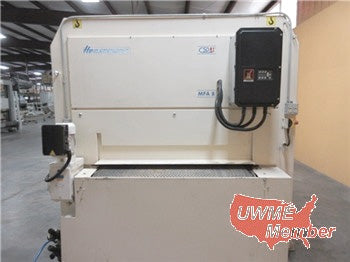

SOLD - Used Three Head Wide Belt Sander - Heesemann MFA-8-112 - 53 Inch
Year: 2004
List Price: $69 500.00
Condition: CLEANED/CHECKED
Machine Stock Number: 11515
Serial Number: 200404291
Description: Used Three Head Wide Belt Sander - Heesemann MFA-8-112 - 53 Inch capacity. Designed for whitewood sanding of veneered panels.
- 53" wide capacity
- 1/8" minimum to 5-1/2" maximum thickness capacity
- 3-head machine
- 1st HEAD: Cross sanding unit - CSD segmented pad with chevron belt 2-speed motor - 20/26 HP motor
- Abrasive belt size - 6" x 189"
- Sanding belt speed - 39/78 FPS
- Electronic braking
- 2nd HEAD: Wide belt sanding unit - CSD PLUS segmented pad with inverter controlled motor for sealer sanding
- Abrasive belt cleaning
- 53" x 103" abrasive belt size
- 29 HP motor
- Sanding belt speed - 6.5 to 65 FPS
- 3rd HEAD: Panel cleaning brush with 150 mm diameter brush
- 2.3 HP single speed motor on cleaning brush
- TFT color touch screen control
- 8.8 HP feed motor inverter controlled for feed speeds from 10 to 50 FPM
- 12 HP vacuum blower for vacuum bed
- 34.65" constant passline
- Dust collection requirements: 5 388 CFM
- Dust outlets: (3) 180 mm and (2) 140 mm diameter outlets
- Recommended main trunk size: 16"
- Electrical requirements: 120 full load amps on 480 volt
- Compressed air: 40 CFM @ 90 PSI
- Weight: 12 786 lbs
