SOLD Used RFS Radius Forming Clamp – Model Protech PI-7


Price:
$25,000

Description

SOLD Used RFS Radius Forming Clamp – Model Protech PI-7

Year: 2002
List Price: $25 000.00

Condition: ATFS

Machine Stock Number: 10961
Member Stock Number: CF070008676

Serial Number: HMC10961

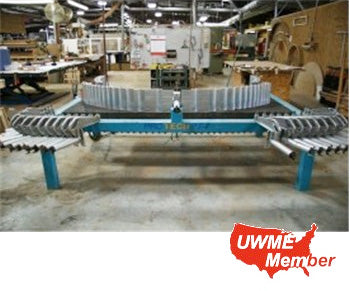

Description: Used RFS ProTech Model PT-7 Radius Forming Clamp. Fabricates curved laminates such as arched headers and radiused mouldings for windows and doors. utilizing a series of machined tails supporting dual sets of aluminum arms which are adjusted to define the pattern to be fabricated. Computerized set-up for parameters  (shape diameter springback etc) that geometrically define the pattern. used to set-up parameters with software guided calcuations for the exact position for each aluminum arm with computer generated printout to aid the operator in manually positioning the arms.

The laminates (veneers) are clamped to the form arms with a series of 32 specially designed pnuematic clamps.

Compressed air at presssures up to 150 PSI is connected to the clamp via a quick disconnect.

Specifications:

  • Maximum part length is 120"
  • Standard part height of 54"
  • Maximum Width: 7"
  • Maximum part thickness: 4-1/2"

Approx. Replacement cost $40 000
