SOLD/ARCHIVED - Used Holzma CNC Controlled Panel Saw - Model HPP-81-3800



SOLD - Used Panel Saw - Holzma HPP-81/3800 Optimat CNC Conrolled

List Price: $27 500.00
Condition: ATFS

Machine Stock Number: 7246CM
Member Stock Number: SZ020012304

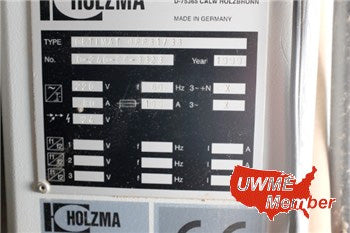

Serial Number: 0-240-06-3323

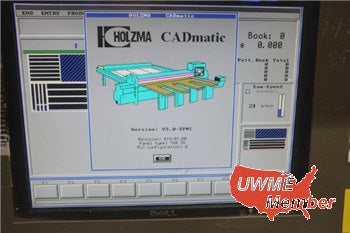

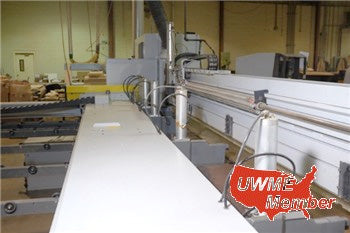

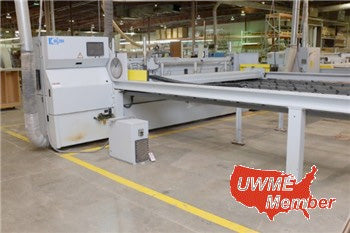

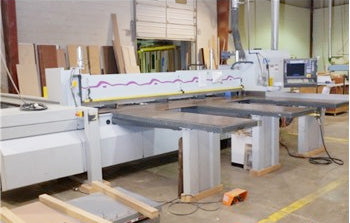

Description: Used Holzma Model HPP-81/3800 Optimat CNC Controlled Panel Saw; having a cutting length capacity of 149.6" (12 feet) and a cutting width capacity of 149.6" (12 feet); equipped with an 18 HP main saw arbor motor a 3 HP scoring saw arbor motor a separate variable speed feed motor delivering a saw carriage speed forward of 0 to 230 F.P.M.; reverse speed of 230 F.P.M. and a program fence speed of 262 F.P.M.; with electrical controls wired for AC 3/60/480 volt operation; with a Cadmatic 3.0 controller; with manual grooving capacity on line; with automatic side pressure device; with a clamp equipped program fence with AC Servo Drive with six (6) pneumatic clamps; with three front mounted air flotation tables of 85" in length x 25.5" in width; with dust collection outlets on the pressure beam (160 mm) and on the saw carriage (160 mm); with manual trim stops; with electrical controls wired for operation on AC 3/60/230 volts and with a transformer to run on 460 volts and with all related equipment.


For more information...


Phone: 678.642.9722 Email:
