SOLD Used Four Head Wide Belt Sander - Slipcon Model DDBB-1350



SOLD Used Four Head Wide Belt Sander - Slipcon Model DDBB-1350 - 52 Inch

Year: 2004

List Price: $34 500.00
Condition: ATFS

Machine Stock Number: 7208LC Member Stock Number: SK020011823

Serial Number: 10490

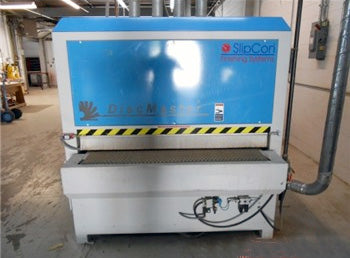

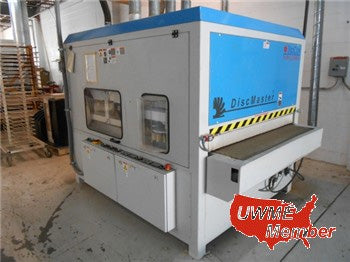

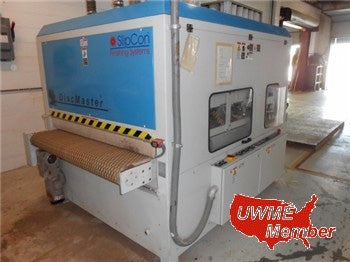

Description: Used Four Head Wide Belt Sander - Slipcon Model DDBB-1350 Four Head Finish Sanding Machine with a 52 Inch width capacity.  Electrical controls wired for AC 3/60/460 volt operation.

Minimum thickness of workpiece of 3mm Maximum thickness of 100mm

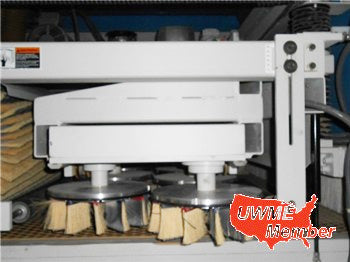

  • Equipped with rotating disc stations on the first and second heads
  • 1.5 kW motors at 30 to 300 R.P.M.
  • 0.37 kW oscillation motor operating at 40 R.P.M.
  • Two brush sanders on the third and fourth heads
  • 2.2 kW motors operating on 30 to 300 R.P.M.
  • diameter of the rolls at 12 inches/15.7 inches
  • automatic pneumatically-controlled centering of the feed belt
  • a separate variable speed feed motor delivering feed rates from 3 to 15m/min
  • motorized height adjustment of the sanding unit
  • easy pull-out of disc station on left and right for easy pad changing
  • height adjustment of disc station against sanding rollers
  • blowing device for cleaning work piece
  • antistatic brush
  • interface control to connect to finish line
  • separate variable speed adjustment for two piece sanding roller
  • electronic digital display for showing height of work piece
  • spring loaded hold down rollers
  • vacuum table complete with vacuum pump
  • four dust collection outlets of 140mm
  • emergency off switches including a safety device for panel over-thickness

For more information...
Phone: 678.642.9722
