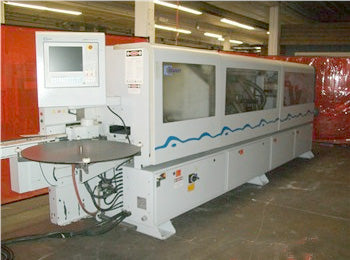

SOLD Used Brandt Automatic Edgebander – Model – Proline KDF-6602C



SOLD Used Brandt Automatic Edgebander – Model – Proline KDF-6602C

List Price: $47 500.00

Machine Stock Number: 7247
Member Stock Number: EB020012305

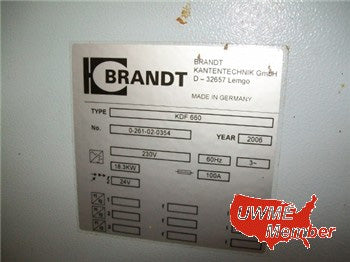

Serial Number: 0-261-02-0354

Description: Used Brandt Model KDF-6602C Profiline Automatic Edge Bander; equipped with a...

  • PC-20 program control with industrial PC (600 MhZ)
  • front side USB Port
  • memory256Mb RAM
  • 1 Gb flash card
  • 12.1" color 800 x 600 pixel active TFT screen and internal modem for diagnosticsmotorized top pressure beam for panel thickness adjustment
  • smooth upper pressure rollers
  • integrated electronic line control system
  • automatic feed track lubrication system
  • adjustable infeed fence
  • joint trimming unit for pre-trimming
  • (two [2] 3 HP motors with diamond cutterheads)
  • Quick Melt granulate glue application system
  • infrared radiant quartz heating unit between glue roller and pressure zone
  • program controlled positioning of the pressure zone (first roller driven and three idle rollers)
  • double motor end trimming unit with straight and chamfer capability with program controlled indexing from straight to bevel
  • flush trimming unit with two position vertical indexing and program controlled pneumatic indexing of the unit
  • fine trimming unit with DFC cutterhead technology
  • servo motor control for side copy positioning and to edge thickness for the unit and auto tilt
  • contour trimming unit (two 1/2 HP motors)
  • scraping unit with program controlled indexing; buffing unit
  • PVC post heater; electronic frequency changer for all trimming motors and with a sound and safety enclosure
  • separate feed motor delivering feed speeds of 36 to 52 F.P.M. (36 when using the contour trimming unit)
  • electrical controls wired for AC 3/60/230 volt operation
  • edge band thickness capacity of 0.0016" to 1/2"
  • edge band height capacity of 1/2" to 2-9/16"
  • panel thickness capacity of 5/16" to 2-3/8"

For more information...

Phone: 678.642.9722
