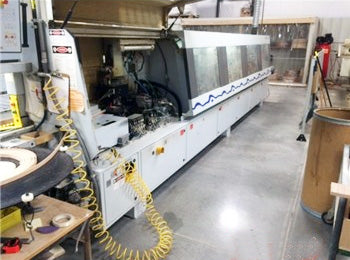

Used Brandt Automatic Edgebander – Model Optimat KD-99CF



Used Brandt Automatic Edgebander – Model Optimat KD-99CF

List Price: $29 500.00

Machine Stock Number: 7243
Member Stock Number: EB020012323

Serial Number: 0-261-02-8131

Description: Used Brandt Model KD-99 CF Optimat Automatic Edge Bander - and with all related equipment.and...

  • PC-16 Program Control with a passive matrix 7.4" color LCD screen
  • 8 Mb IDE Flash Disc 100 MhZ 486 DX4 hard drive
  • 8 Mb RAM and internal modem for remote diagnostic link
  • motorized upper pressure beam for all work stations
  • large coil table (800mm diameter)
  • two motor (3 H.P. each) Joint Trimming Unit with cutterheads
  • automatic magazine for strip and coil feeding program
  • controlled pressure zone (first roller driven and four idle pressure rollers
  • Quickmelt Gluing System QA-34 with large granulate hopper
  • automatic glue feed system
  • infrared heating unit between the glue roller and pressure zone
  • End Trimming Station (two 1 H.P. motors)
  • program controlled pneumatic indexing from straight to bevel
  • Fine Trimming Unit #1 (two 2 H.P. motors)
  • horizontal and vertical tracing wheels
  • program controlled pneumatic indexing
  • Fine Trimming Unit #2 (two 3/4 H.P. motors)
  • horizontal and vertical tracing wheels with digital "Quickset" system and program controlled pneumatic indexing
  • Contour Trimming Unit (four 1/2 H.P. motors) with program controlled indexing
  • scraping unit with quick change heads and program controlled indexing
  • oscillating jump buffing unit (two 1/3 H.P. motors)
  • electronic frequency changer for all trimming motors and brakes
  • safety and sound enclosure
  • 3 H.P. feed motor delivering a feed speed of 52 F.P.M.
  • electrical controls wired for operation on AC 3/60/230 volts
  • 0.0016" to 205/32" edgeband thickness
  • 1/2" to 2-3/8" edgeband height
  • panel thickness from 5/16" to 2-3/16"

    For more information...

    Phone: 678.642.9722
