Used Biesse Rover CNC Router – Model 24 FTS


Price:
$49,950

Description

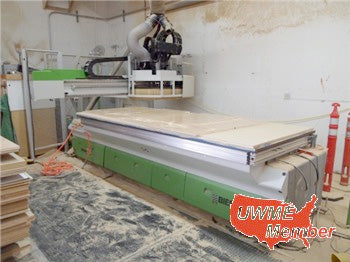

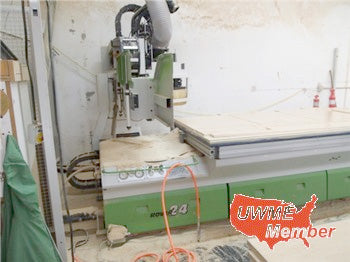

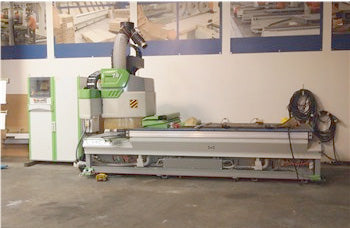

SOLD - Used 2001 Biesse Rover  CNC Router – Model 24 FTS

List Price: $49 950.00

Year: 2001

Condition: ATFS

Machine Stock Number: Biesse Rover 24 FTS
Member Stock Number: RC310010994

Description: Used 2001 Biesse Rover  4 ft x 10 ft CNC Router – Model 24 FTS

Working cap.:

  • X-Axis is 122" (3 100 mm)
  • Y-axis is 49" (1 250 mm)
  • Z-axis is 8.5"); max.

Programmable speed:

  • X- & Y-Axis is 3 937 IPM
  • Z-axis is 1 336 IPM

Work area:

  • Flat table designed for "Nested Base Manufacturing"
  • (2) independent working areas with double pop-up parts
  • locating pins for positioning of parts on the worktable
  • prepared for (optional) "quick fit" vacuum
  • outlets for optional clamping of small or awkward shaped parts
  • each work zone with (1) "quick connect"
  • vacuum outlet for custom vacuum fixtures.

Boring Head with:

  • (14) Independent vertical boring spindles with
  • (7) spindles on the Y-axis &
  • (7) spindles
  • X-axis
  •  inverter controlled variable spindle speed up to 4 000 RPM
  • (6) horizontal spindles (2+2) in the X-axis & (1+1) in the Y-axis; (1) 4' (100 mm) dia. grooving saw in X-axis.

Options included:

  • (1) 16 HP (12 kW) Liquid-cooled vertically mounted HSD electro-spindle router with HSK
  • F63 r inverter driven 1 000 - 20 000 RPM with max. torque from 12 000 - 20 000 RPM
  • (1) 6-position "Ride Along" Automatic tool changer for "on-the-fly" ATC.

    Window XP Operating system for real-time multitask processing; programs can be transferred via diskette or downloaded by wire; built-in 1 500 W air conditioner for constant temperature & dust-free environment.
