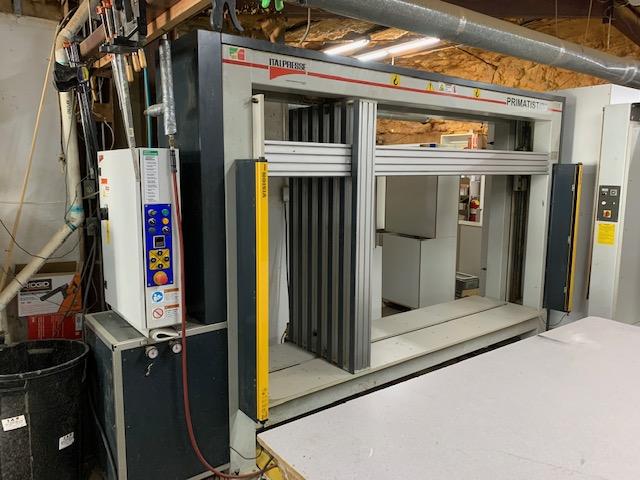

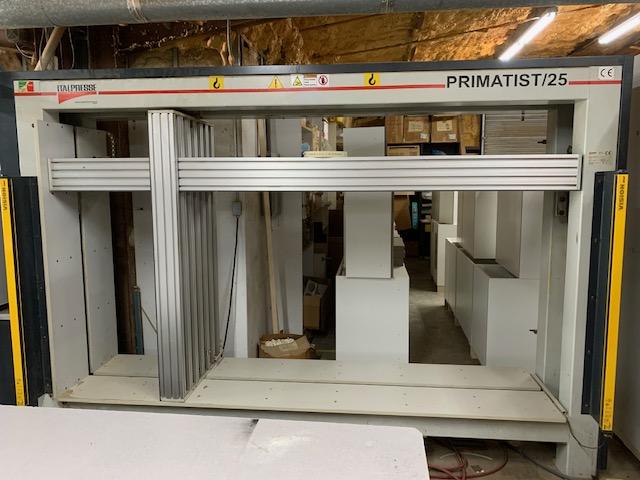

Primatist / 25-A Fully Automatic Case Clamp
Max. cabinet height ……………………. 1300 mm. (51”)
Min. cabinet height ……………………… 250 mm. (9.85”)
Max. cabinet length ……………………… 2,500 mm. (98”)
Min. cabinet length ………………………. 250 mm. (9.85”)
Max. cabinet depth ………………………. 700 mm. (27.5”)
Working height …………………………….. 400 mm. (15.75”)
Total installed power …………………….. 1.5 kw
Features:
- Horizontal and vertical interlaced beams constructed of thick high tensile aircraft grade aluminum profiles for maximum rigidity and are faced with thick PVC profiles.
- Set-up free operation – motorized positioning and clamping of both pressure beams
- Two speed simultaneous movement of the beams for fast closing with automatic slow down prior to making contact with the cabinet.
- Manual and full automatic modes – one touch push button controlled cycle activation in automatic with selector to choose between vertical clamping first then horizontal.
- Clamping timer with automatic opening sequence.
- Clamping beam spindles are driven by hydraulic motors with independent adjustment of the horizontal and vertical clamping pressure allowing for a wide range of clamping pressure settings and a smooth, accurate buildup pressure and long operational life.
- Safety metal screens installed on rear side with a safety light barrier protecting the front of the machine for maximum operator safety when working in full automatic mode.
- U.L. approved electrical components
- 230 volts, 3 phase, 60 cycle
