Description

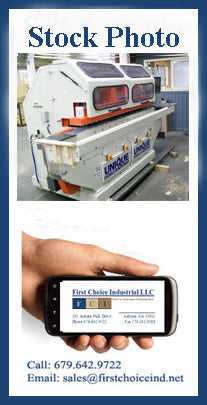

SOLD Used Unique Shape and Sand Machine - Model 3250
This used shape and sand machine manufactured by Unique features a 6" maximum cutting diameter and 7" sanding diameter .
Technical Specifications:
- (2) 10 HP direct drive
- Himmel shaping heads
- Variable speed 5000 to 9000 RPM
- Reversible 1-1/4" diameter spindles
- 8" stack height
- Six position turrets on shaper stations
- Jump cope
- (2) 1 HP profile sanding heads
- Variable speed 400 to 2 000 RPM with 1" diameter spindles (reversible)
- (6) air jets per sanding station to minimize dust build up
- Horizontal and vertical digital position indicators for sanding heads
- 2 HP variable speed feed 0 to 35 FPM
- Heavy duty 6" wide feed chain with rubber feed track pads
- (5) staggered rows of rubber wheel hold down rollers
- 6" maximum cutter diameter
- 7" maximum sander diameter 2-1/2" maximum material thickness capacity
- (2) dia. 5" dust outlets
-
(2) 4" dia. outlets
-
Dust Collection: Requires 3 200 CFM Compressed air requirements: 90 PSI 1.5 CFM
- Machine weight: 5 550 lbs.
