SOLD Used Special SCM CNC Door Line Line

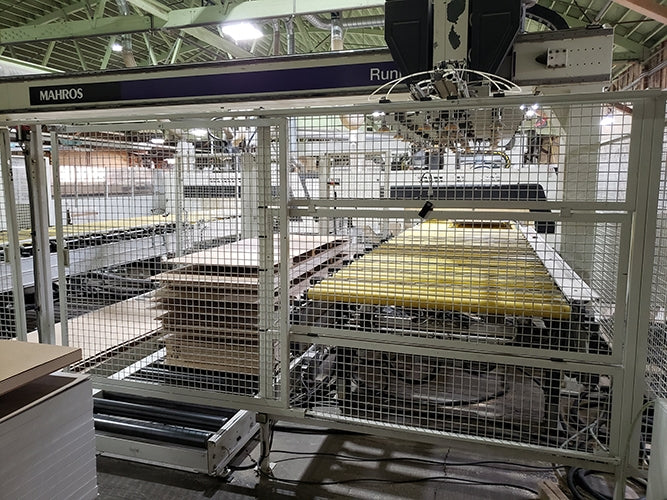

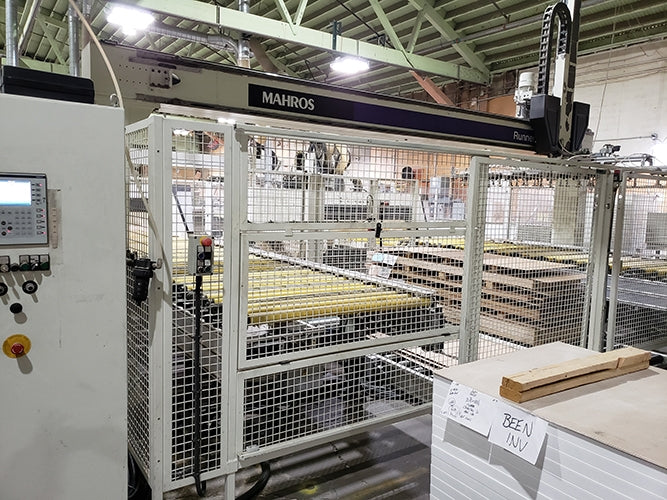

- (1) Mahros 4-position vacuum loader

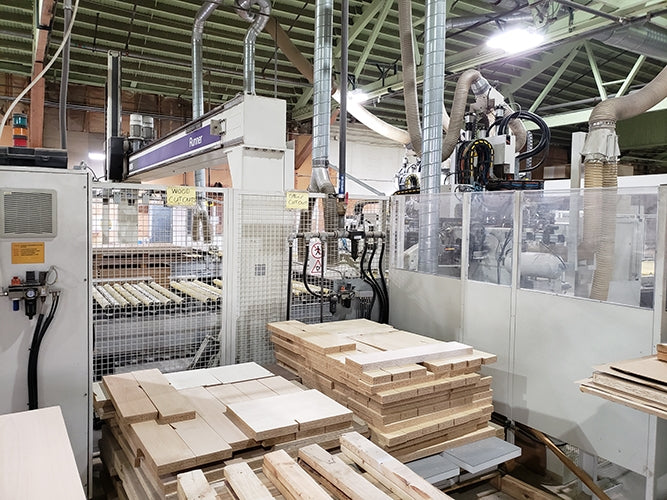

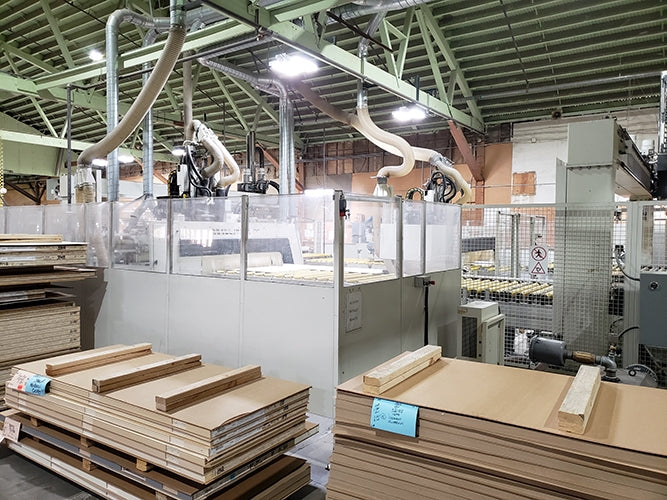

- (1) 2006 Model R200KT Routech 5-Axis Machining Center (SN 3-258)
- (1) 2008 Model R200KPRT Routech 5-Axis Machining Center (SN 3-393)

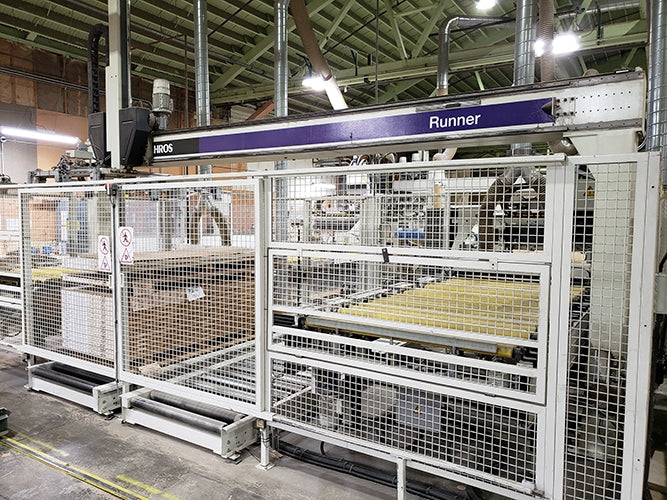

- (1) Mahros 4-position pinch unloader/stacker
- Routech Technical Data 400V 7600kg - weight of each unit
- Compressed air feed pressure: 6/7 bar
- Compressed air consumption: 170 NI/min
- Extraction air consumption: 7000 m3/h
- Extraction ari flow rate 30 m/sec 3400 x 1300mm - max.
- finished workpiece dimensions 100kg max.
- workpiece weight X-Y-Z axes strokes: 4000 x 2085 x 400mm 3-Axes
- Machining head 13.5HP 18000RPM 5-Axes
- Machining unit 16HP 20000RPM 270° tilted axis rotation 640° vertical axis rotation
- Tool positions: 12 on main spindle 8 on secondary spindle
- 9 drilling positions
- 5 vertical bits
- 4 horizontal bits 32mm inter-spindle center-to-center distance
- 3000RPM rotation speed
- Each router has 16 Smart Vacuum pots
- Runs on a 200A feeder with 6x8" and 2x6" DC pipes with a modest amount of shop air
