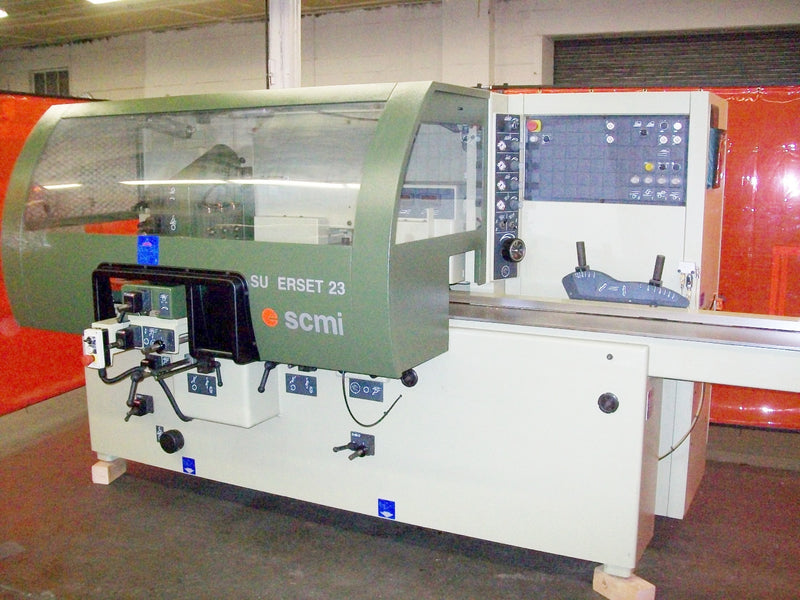

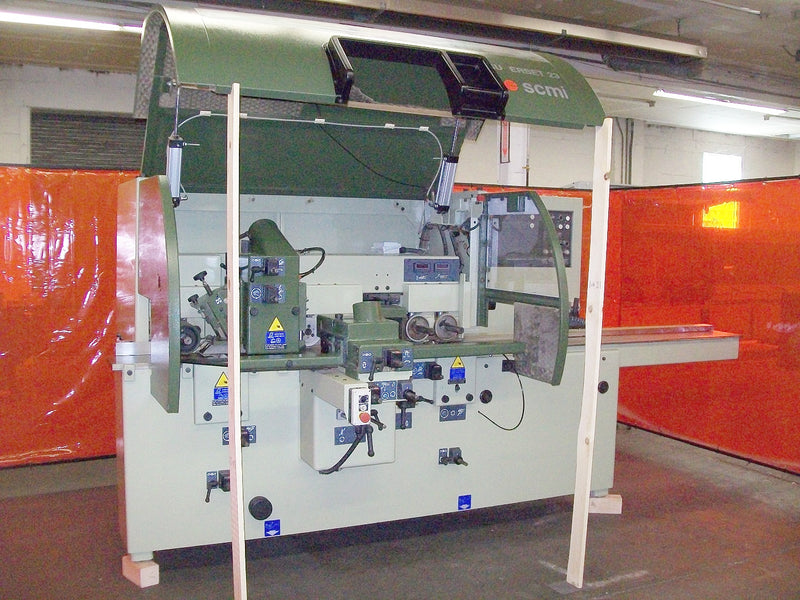

SOLD Used 5 Head Moulder - SCMI Model Superset 23



SOLD Used SCMI 5 Head Moulder - Model Superset 23

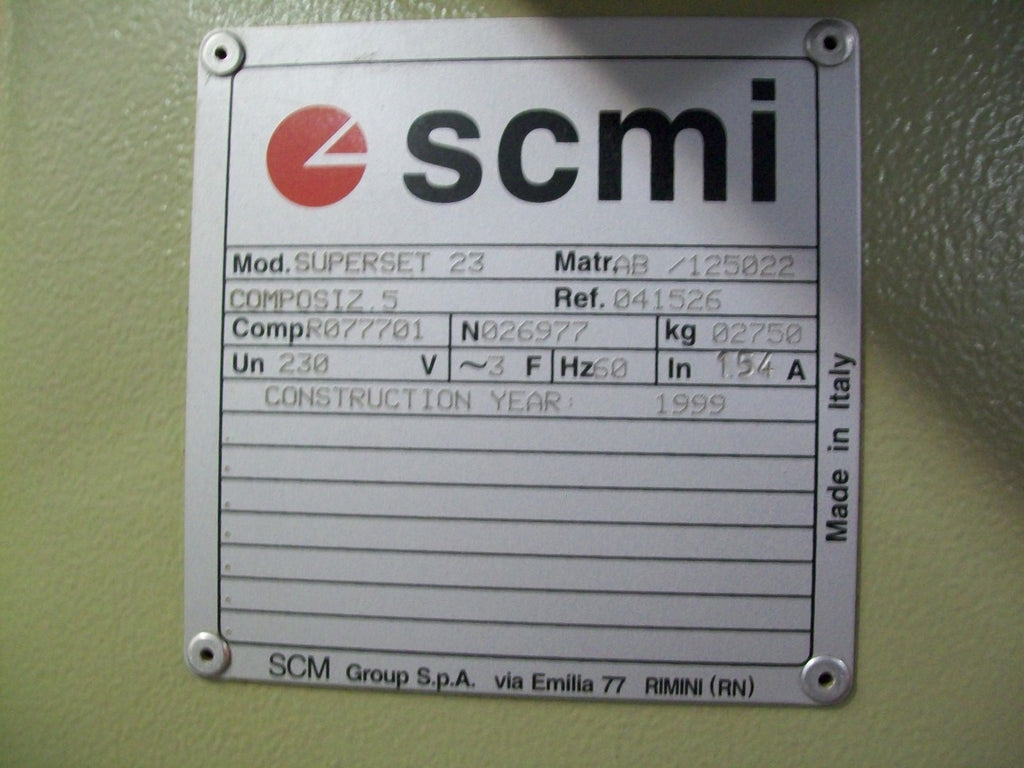

Serial Number: AB/125022 Ref. #041526

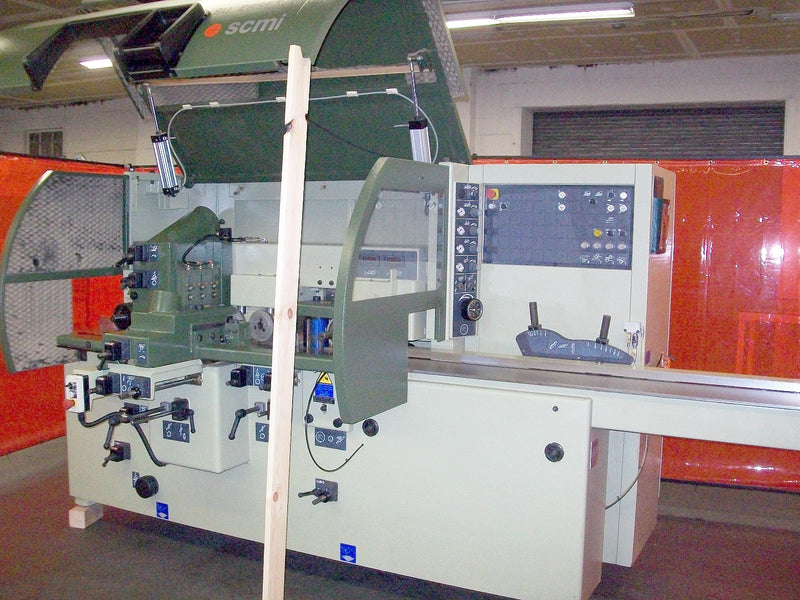

This used  five head moulder; manufactured by SCM features a 230mm x 120mm maximum thickness capacity; with variable feed speeds from 4 to 24 MPM

Technical Specifications:

  • motors being belted to deliver 6 000 R.P.M. spindle speeds on the diameter spindles
  • a 5.5 HP motor on the first bottom spindle
  • a 10 HP motor (common motor) on the second right spindle and third left spindle
  • a 7.5 HP motor on the fourth top spindle
  • a 5.5 HP motor on the fifth bottom spindle with electrical controls wired for AC 3/60/230 volt operation
  • digital readouts on spindles; with Superset 23 set-up technology;
  • infeed table length of 2 000mm
  • a 0 to 10mm table adjustment
  • a 0 to 10mm infeed table fence adjustment

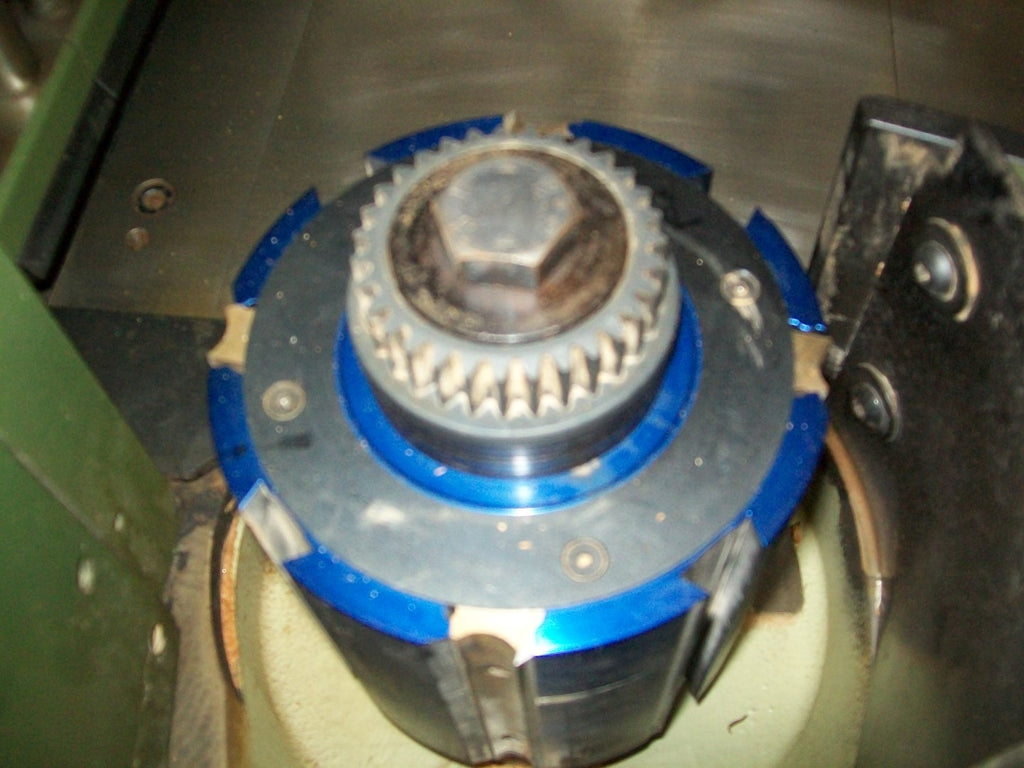

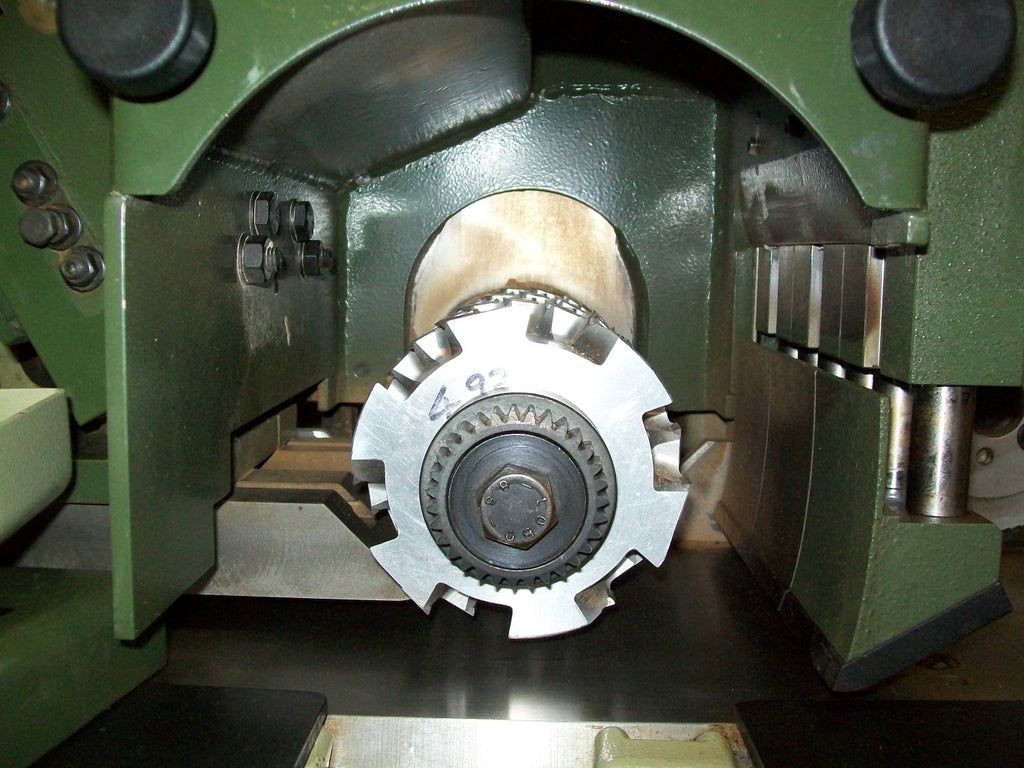

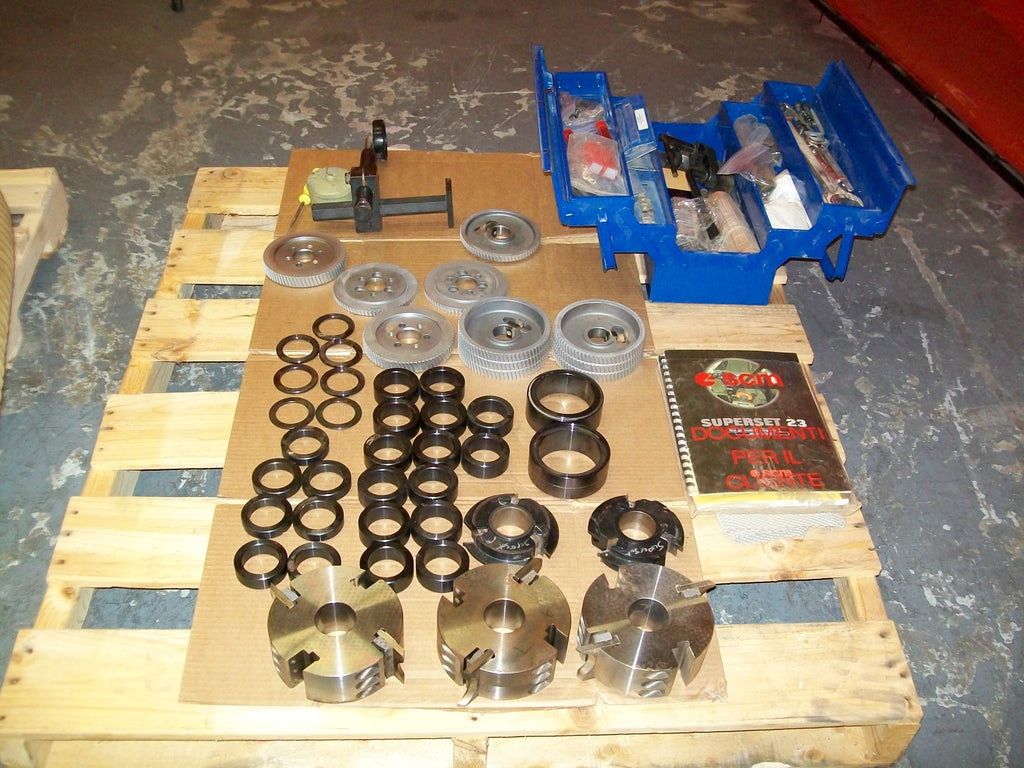

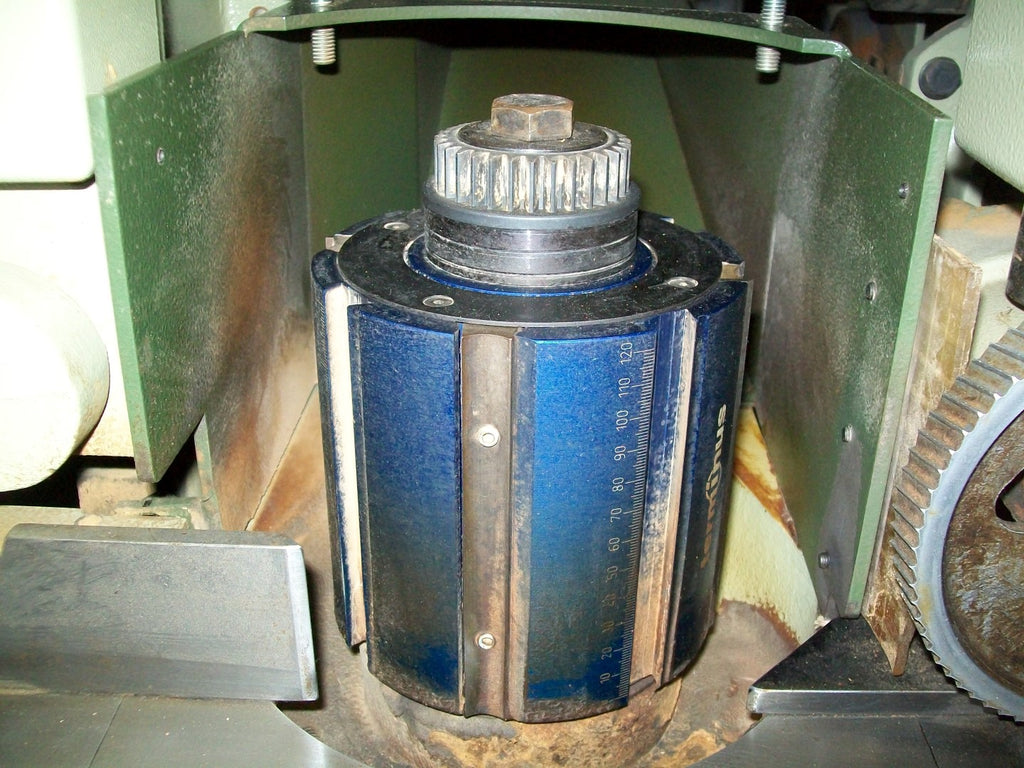

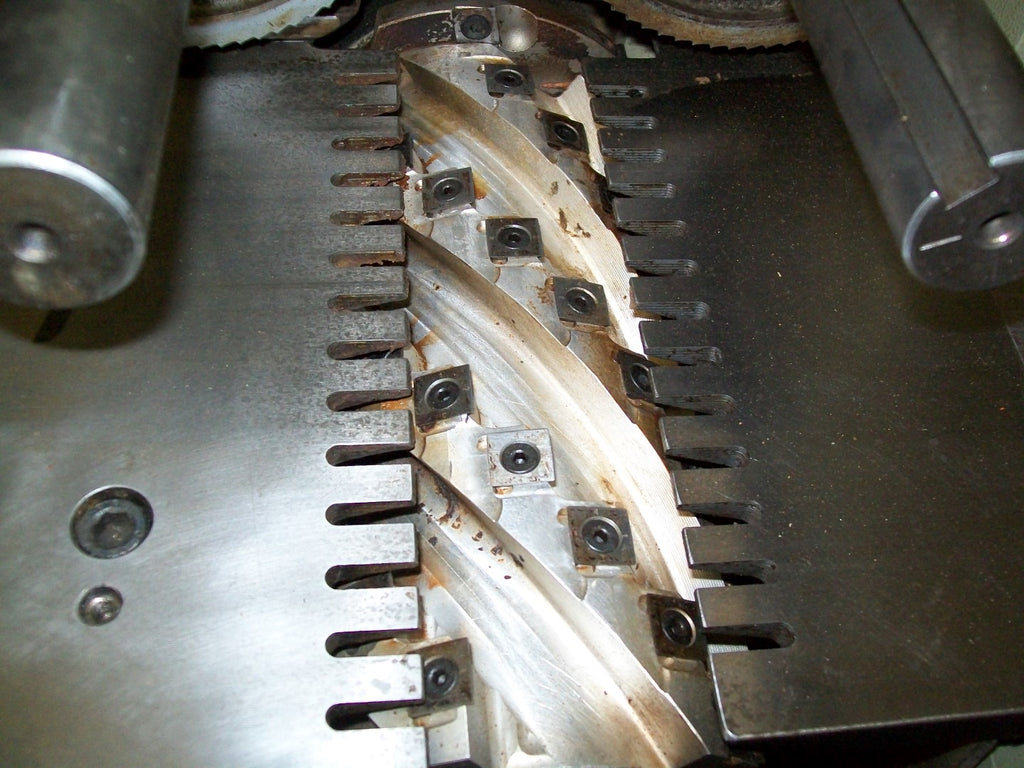

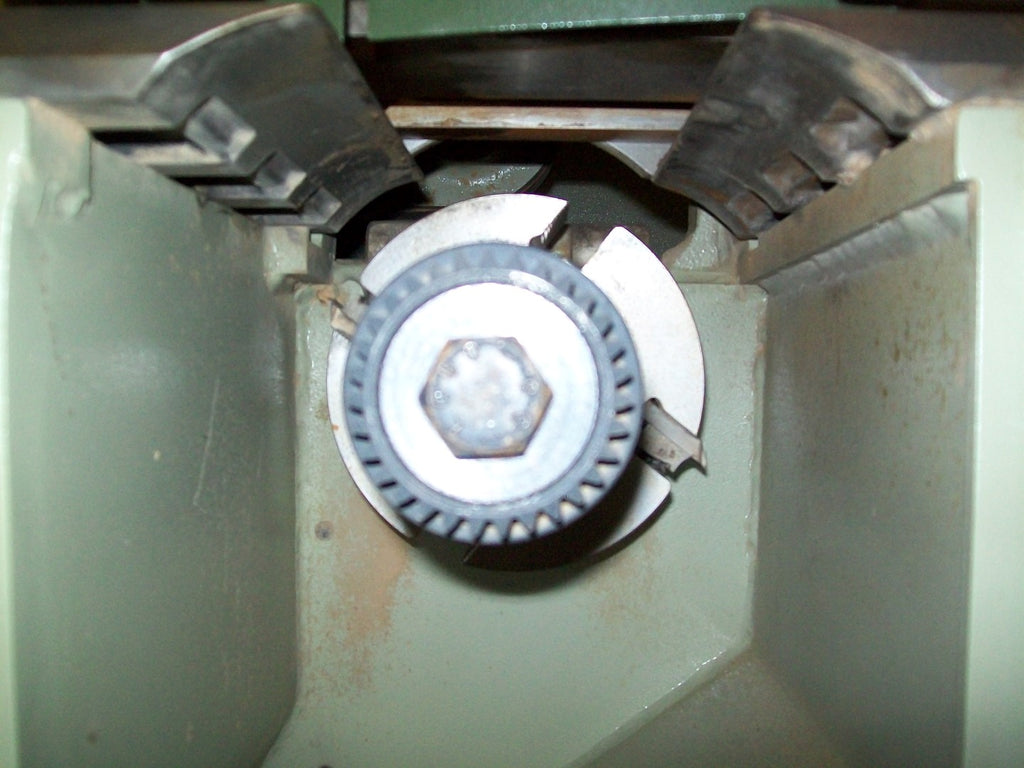

  • complete with a set of cutterheads (carbide insert cutterhead on the first bottom spindle along with many spacers feed roll

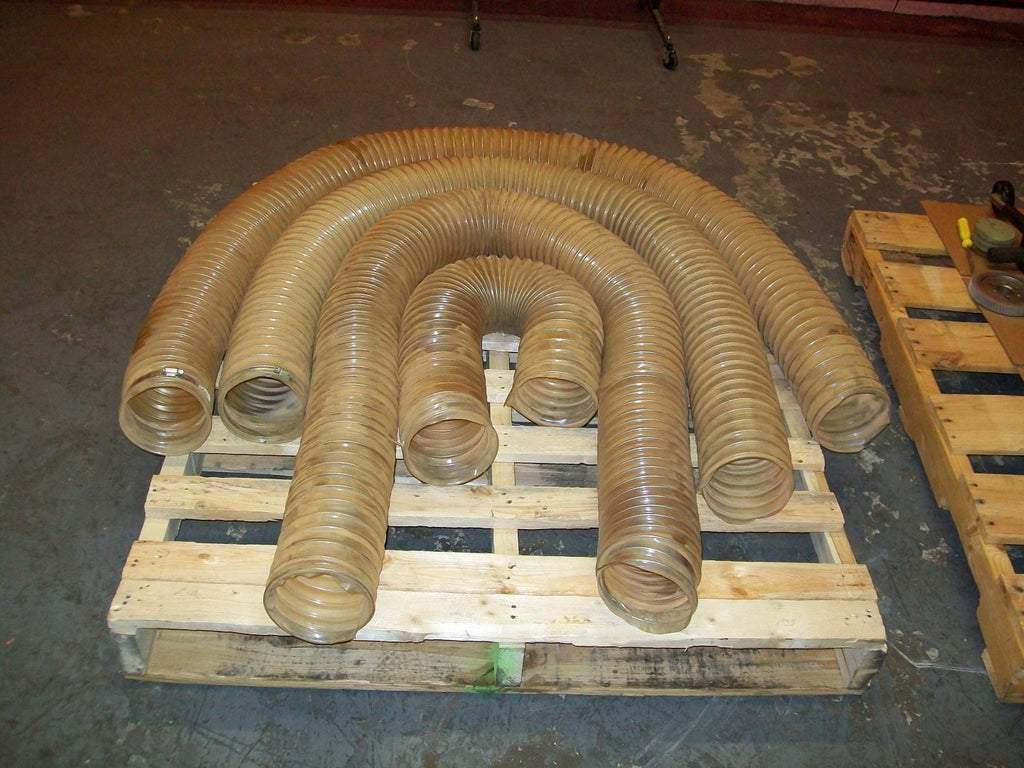

  • tools and all related equipment

For additional information and shipping quotes...

Contact Stan at First Choice Industrial
Phone 678.642.9722
