SOLD Used SCM Single Shaper with HSK Spindle - Model Vanguard T160


Price:
$18,750

Description

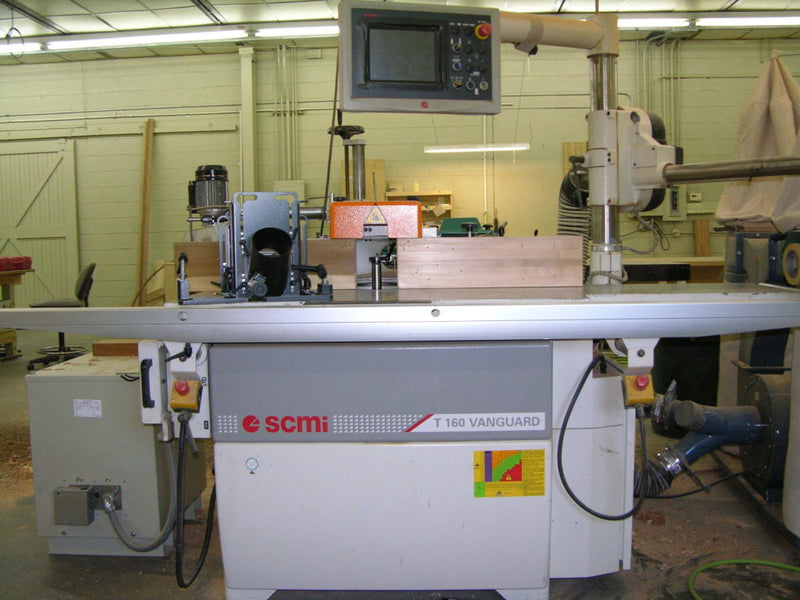

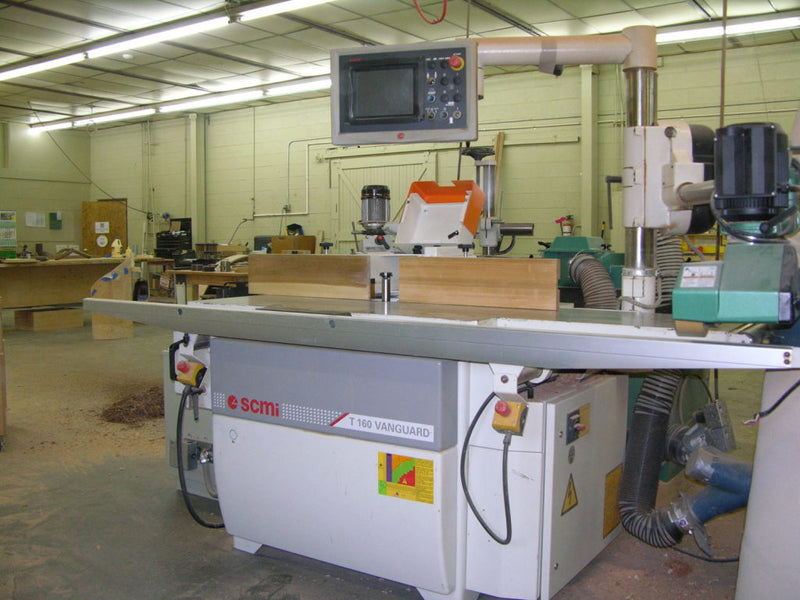

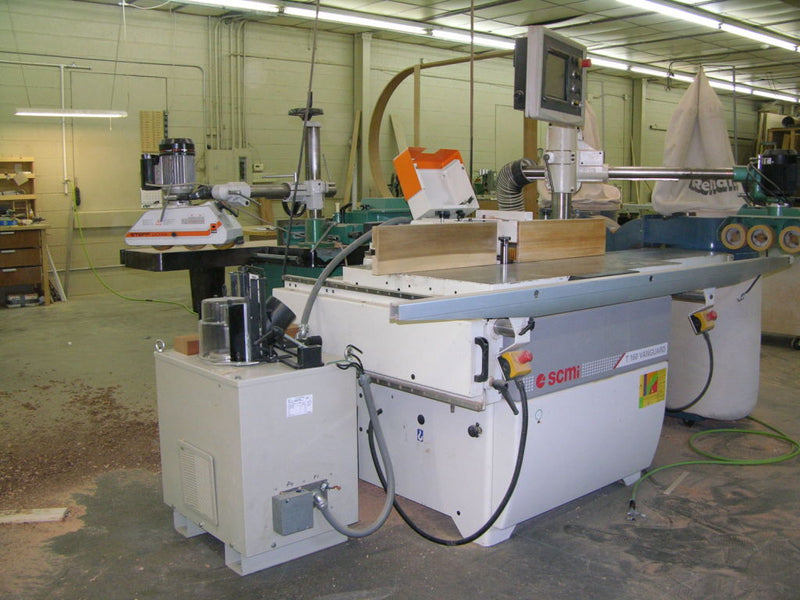

SOLD Used SCM Single Shaper with HSK Spindle - Model Vanguard T160
This used single shaper with an HSK spindle was manufactured by SCM Group and features 2500 x 750mm (48” X 29.5”) table dimensions.

Technical Specifications:

  • 7 + Axis integrated touch screen PC control over: spindle speed height & angle fence infeed & out- feed sectioned table feeder support vert. & horiz.
  • Program storage for up to 999 programs
  • Liquid cooled 13.5 hp electrospindle with maximum power available starting at 3000 rpm.
  • Inverter control of electrospindle with range from 900 to 10 000 rpm and electronic brake
  • Pneumatic HSK B tool change system with air blower system for clean contact surfaces and safety sensors for tool change operation monitoring
  • spindle rotation tool taper lock go / no-go sensor 5 HSK B 63 spindles
  • 1 1/4 Inch diameter with tooling cart
  • Spindle vertical movement on two precision linear guides and tilt movement on precision arch-formed dovetail trunion through recirculating ball screw drives.
  • Flex profiling fence system with 205mm stroke referenced to the center of the spindle shaft with movement on two linear guides by recirculating ball screw
  • Fence includes the ability to stroke behind spindle
  • Spindle tilt angle from +45° to - 45° with maximum possible tool projection through angle range

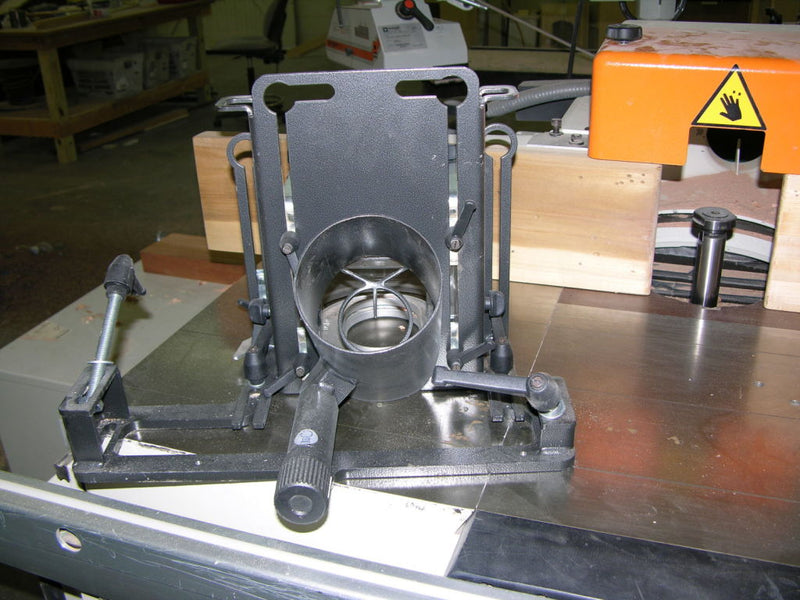

  • Upper mobile control panel Cope attachment with 500 mm stroke including miter gauge and clamp
  • Fast: sectional table to adjust for tool diameter
  • Powered cross support mount for feeder with readout Aluminum fences

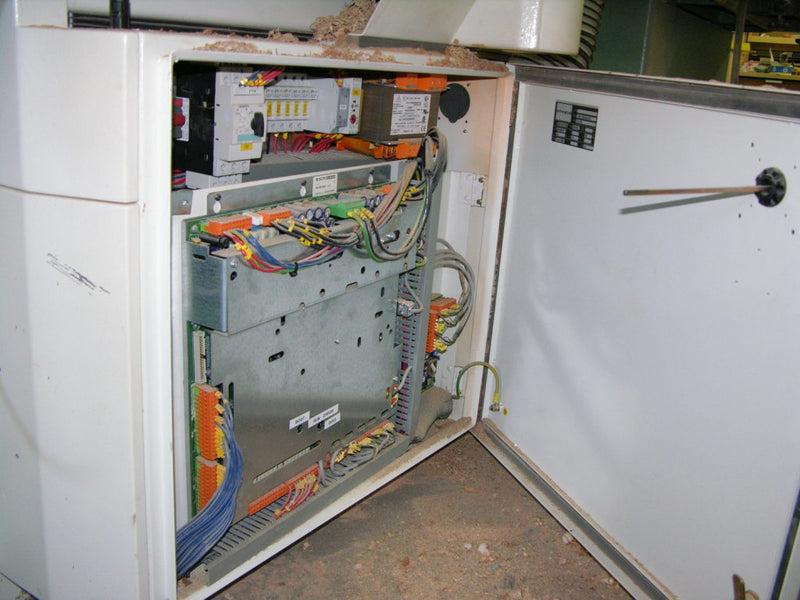

  • Magnetic starter with overload protection
  • Low tension circuit (110v by transformer)
  • Motor Horsepower: 13.5 HP
  • Table Dimensions: 2500 x 750mm (48” X 29.5”)
  • Table Height: 920mm ( 36" )
  • Working Height of Spindle (under the nut): 140mm ( 5.5” )
  • Spindle Tilting: 0 to 45 0 to -45 degrees.
  • Max. Tool Diameter w/ Profile Fence: 250mm (10”)
  • Max. Tool Dia. Retractable Under Table: 320mm x 75mm ( 12” x 2.9” )
  • Spindle Speeds (rpm): 900 to 10 000
  • Dust Outlet on Fence and Rear Base: 120 mm each
  • Overall Dimensions (L W H): 98” x 29” x 41”
  • Net Weight 2 185 lbs.

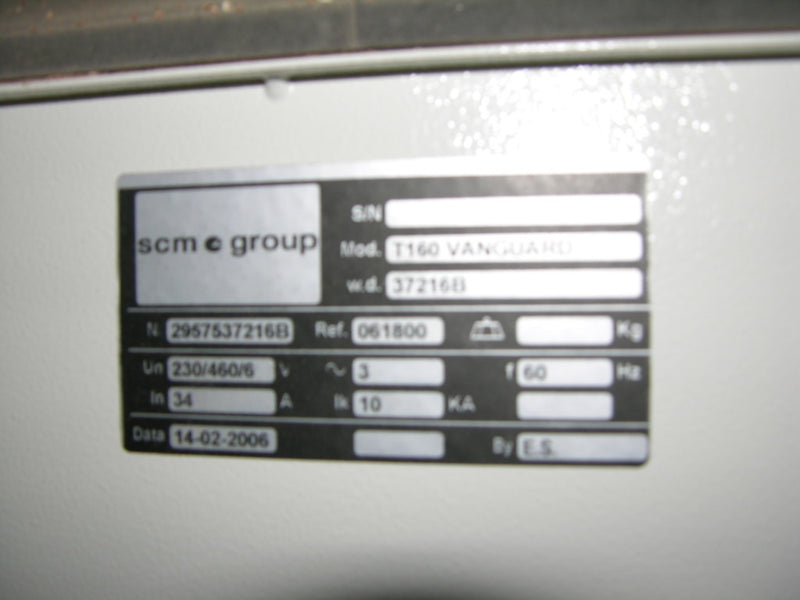

  • Electrical Requirements 45 amps @ 230 volts
  • Minimum Working Air Pressure 88 PSI
  • Dust Extraction 680 CFM x 2
