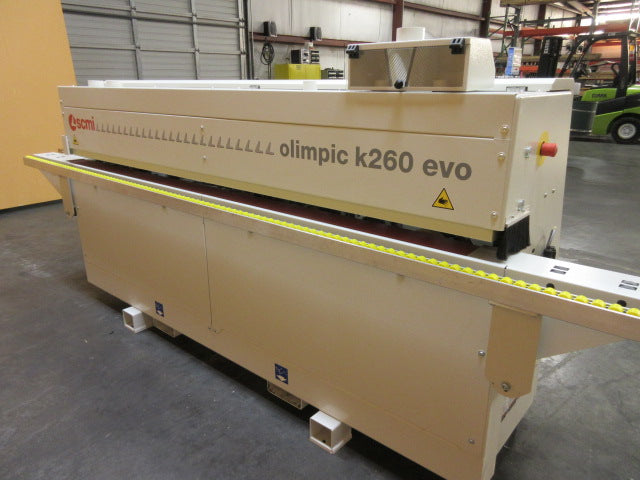

SOLD Used Edegbander - SCM Model: K260 EVO



SOLD Used SCM Edegbander - Model: K260 EVO
Year: 2014

This used edgebander manufactured by SCM features a 30 FPM feed speed.

Technical Specifications:

  • .4 mm to 6 mm edgebanding thickness capacity
  • 3 mm guillotine capacity 3/8" min. to 1-15/16" panel thickness
  • Minimum panel length: 5-1/2"
  • Minimum panel width: 2-3/8"
  • Minimum distance between panels: 22"
  • Combination cutter for radius
  • solid and thin tape
  • Feed speed: 30 FPM

  • Orion 1 Controller with soft touch keypad - capable of operating all the work units via soft touch buttons it pneumatically tilts the end trim unit from the control panel eliminates the use of micro switches as well as controls the temperature of the glue

  • Quick change/disconnect glue pot 3-roller pressure section with automatic strip magazine
  • (2) 2 HP 9 000 RPM high frequency pre-milling motors with jumping action controlled through the PLC
  • Diamond cutters are standard with 49 mm height
  • (2) .50 HP motors for end trim unit on THK guides (pneumatically positioned through the control panel)

  • (2) .7 HP 12 000 RPM top and bottom trim motors comes standard with 3 position pneumatics that allow operator to go from thin tape to 3 mm pvc to solid wood through the control panel

  • Equipped with both a set of 15 degree conical cutters and a 3 mm radius set of insert cutters
  • Profile scraping unit equipped with top and bottom copy wheel and side copy wheels
  • Adjustments via mechanical digital readouts
  • Buffing unit with (2) .25 HP motors that can be tilted up to 12° Mechanical digital readout
  • Adjustable side support
  • Acoustical safety enclosure
  • Air Requirements: 90 psi
  • Dust Extraction: (2) 2" and (1) 3" outlet
  • Machine weight: 2 250 lbs.

For additional information and shipping quotes...

Contact Stan at First Choice Industrial
Phone 678.642.9722
