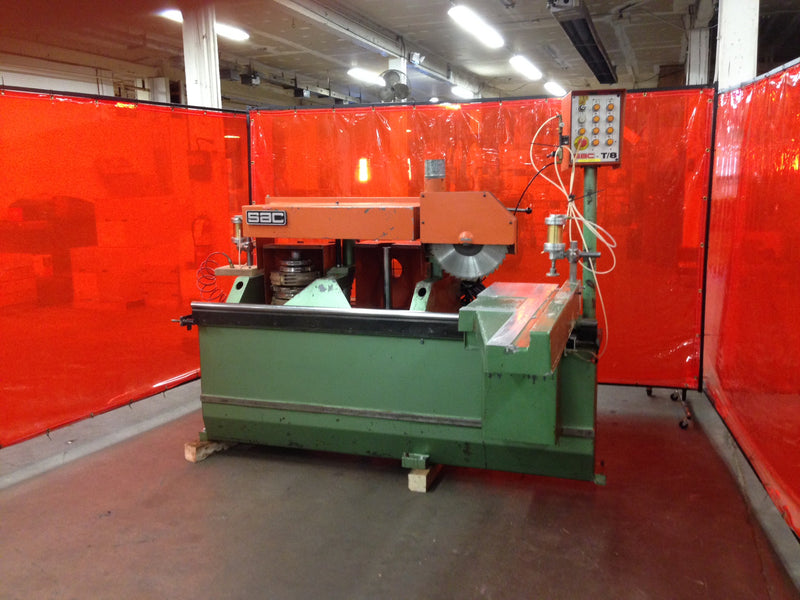

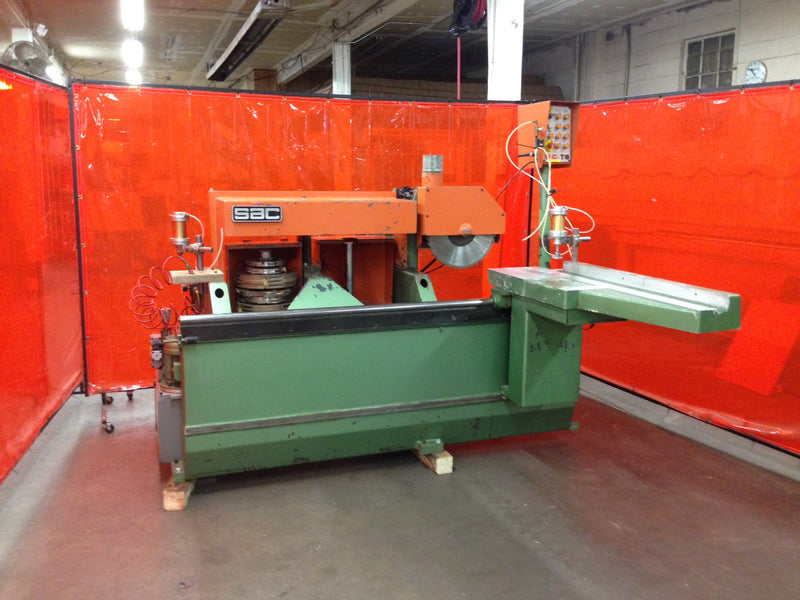

SOLD Used Single End Tenoner - SAC Model SAC T/8



SOLD Used SAC Model T/8 Single End Tenoner

Serial Number: 1001

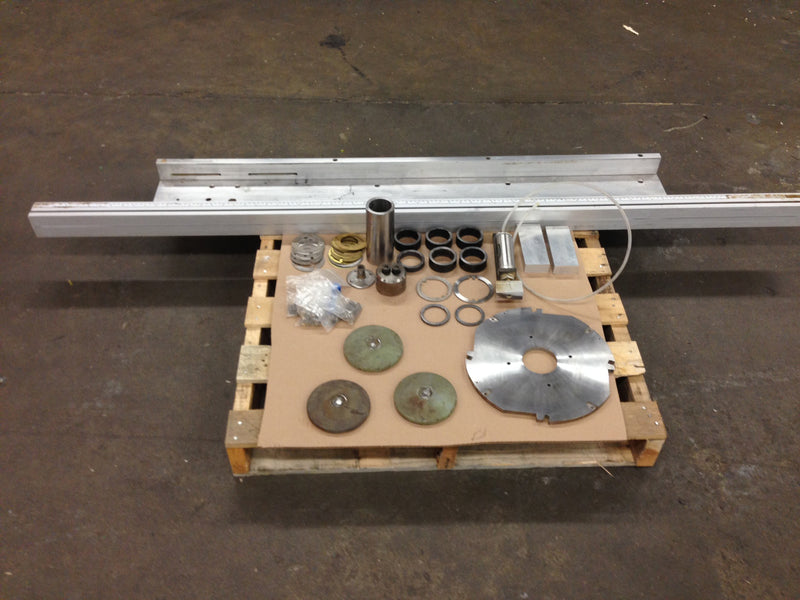

This used single end tenoner manufactured by SAC is complete with all related tooling and manual.

Technical Specifications:

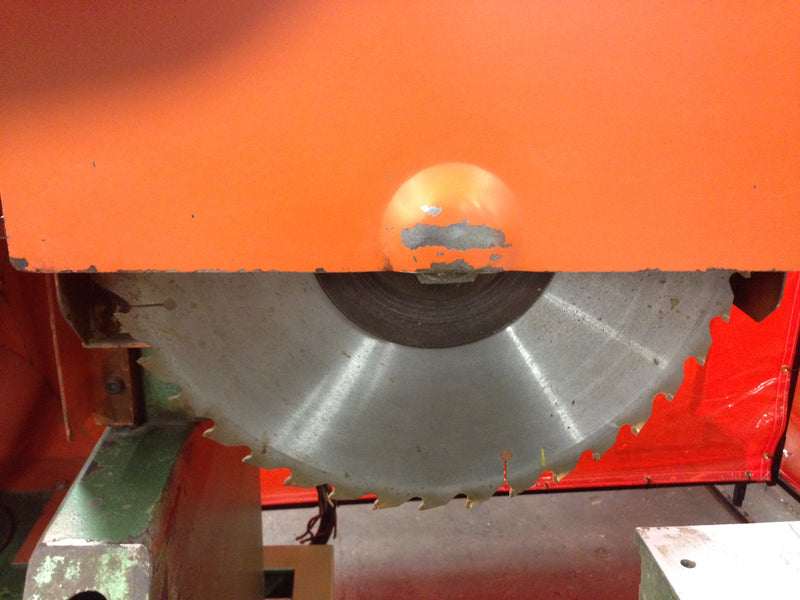

  • 3.2 kw trim saw motor with a 16" diameter CT sawblade on the 30mm diameter arbor

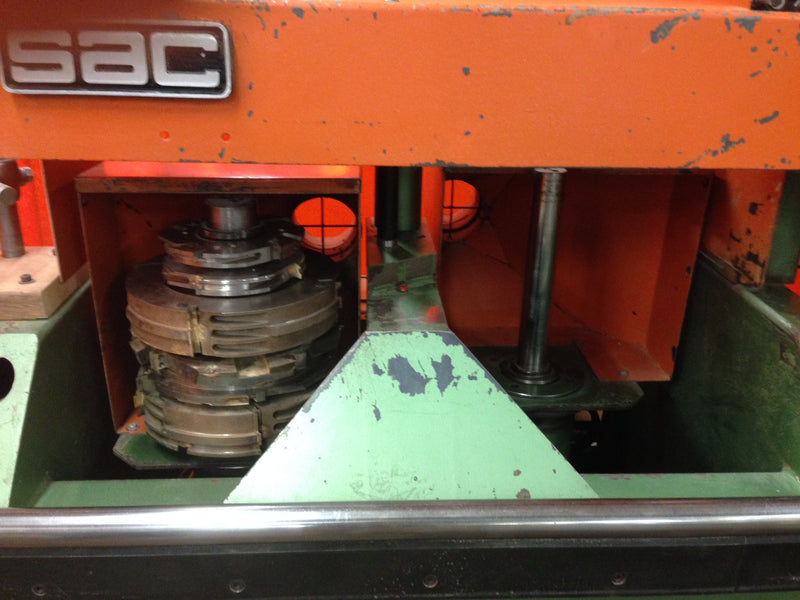

  • (2) stackable tenon spindles with 12" of spindle height
  • (3) stackable tooling options on each spindle

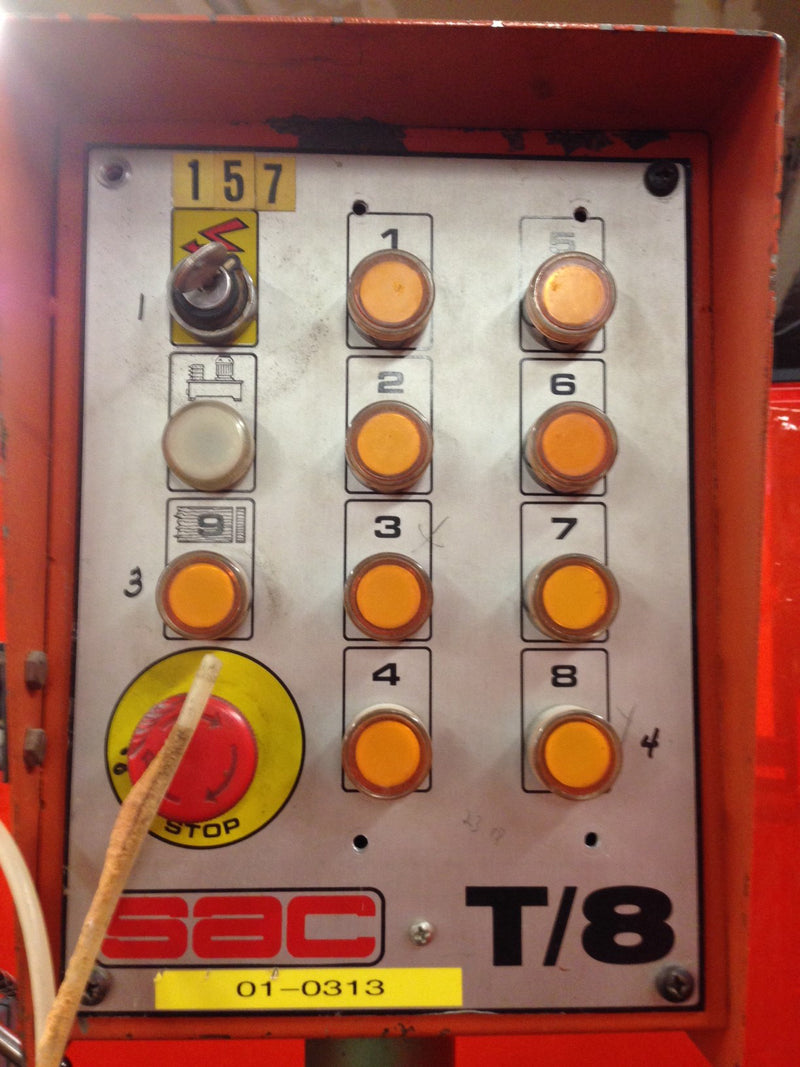

    Note: the tooling stacks are raised and lowered via the control panel with three control options for each spindle and each tenon spindle is driven via 5.5 kw motors
    separate hydraulic pump unit
    • one tenon spindle is 50mm in diameter
    • the other tenon spindle is 65mm in diameter

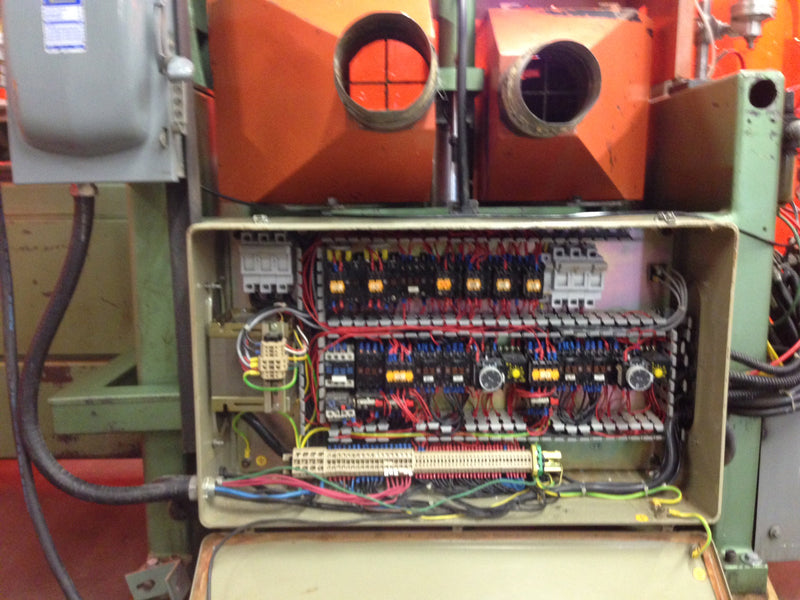

  • electrical controls wired for AC 3/50/380 volt operation

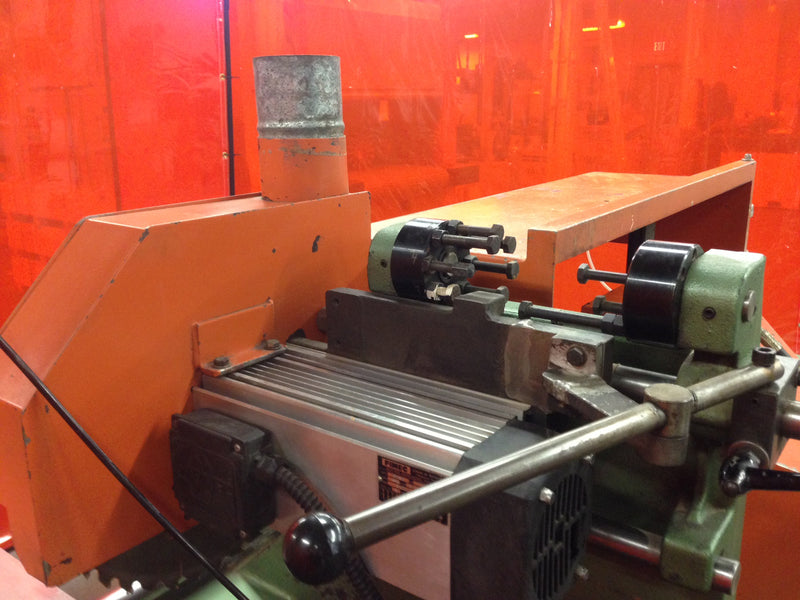

  • sliding table with manual advance and return size of 24" x 60"
  • adjustable pneumatic overhead hold-down clamping unit with two pneumatic clamps

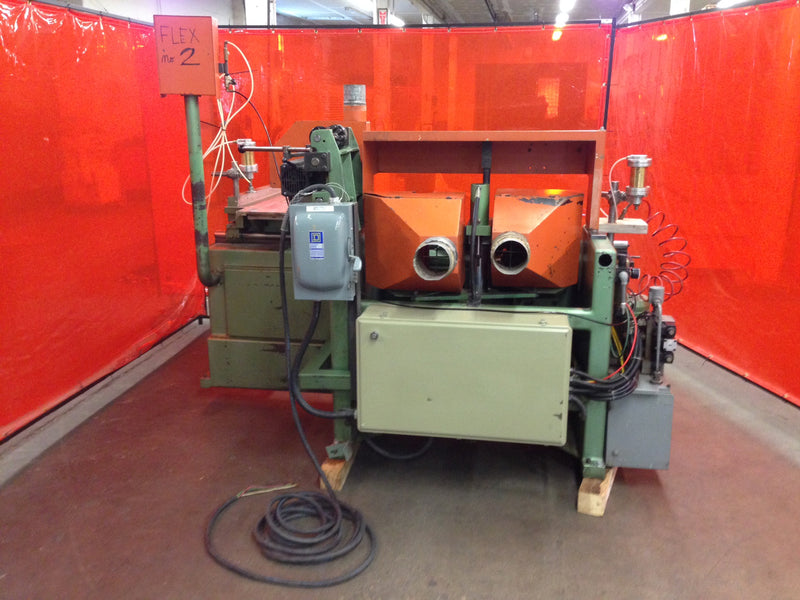

  • three dust outlets (4 inches on the trim saw and 6 inches on the tenon spindles)
