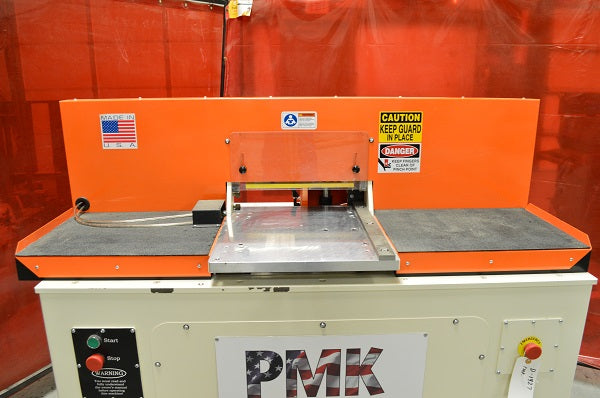

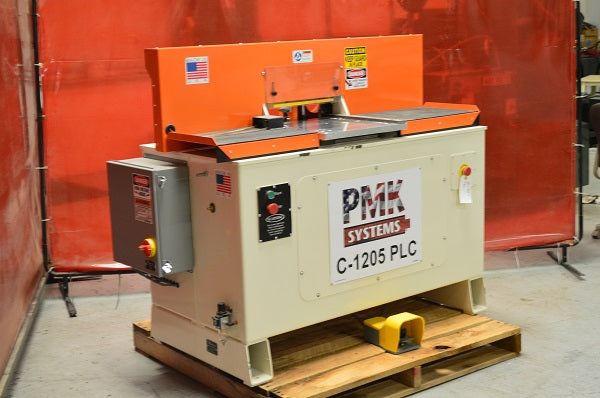

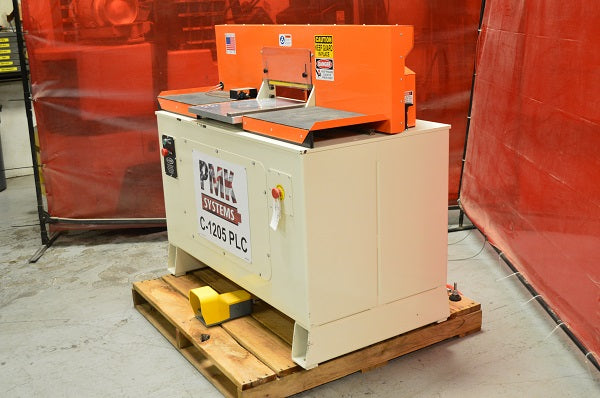

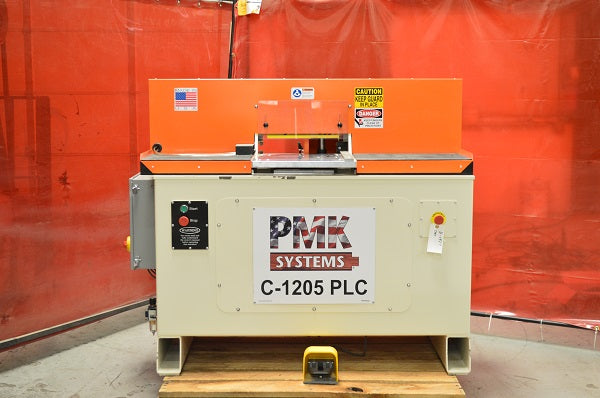

SOLD Used PMK Spindle Shaper - Model C-1205



SOLD Used PMK Spindle Shaper - Model C-1205

This used spindle shaper manufactured by PMK includes aluminum sub-table for stacking of tooling.  Note: Tooling sold separately.

Technical Specifications:

  • Chip free coping/end-matching of squared or profiled parts without the need of a back-up piece
  • Two counter-Rotating Spindles
  • Spindle Diameters: 1-1/4"
  • Spindle Speeds: 7 000 RPM
  • Main Motor: 7-1/2 HP Motor
  • Maximum Cutter Diameter: 5" OD
  • Minimum Cutter Diameter: 3-1/2" OD
  • Maximum Part Size: 2" Thick x 13-1/2"
  • Wide Minimum Part Length: 3"
  • Maximum Depth of Cut: 3/4"
  • Minimum width of part is determined by the O.D. of the cutter and if the part is profiled or not
  • Unlimited Part Length
  • External flow valve allows you to adjust the speed of the sliding table according to the thickness width & density of the part
  • New Safety lenses in top of hood to check rotation of spindles
  • New up-graded PLC Controller Cycle time adjustable from 5 to 10 seconds
  • The C-1205 has the capacity to stack tooling
  • Maximum two cutters per spindle

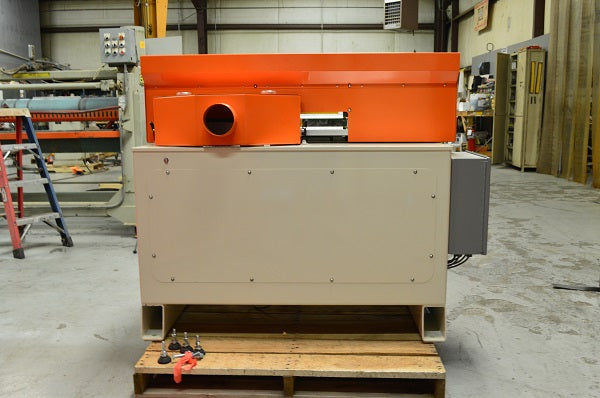

  • Dust Hood with 5" Port
  • Dust Collection Requirement: 1 000 CFM
  • Precision THK rails for guidance of carriage stroke and hold down clamp
  • Side pressure clamp ensures proper alignment with fence
  • The C-1205 meets UL & CSA Electrical Standards
  • Includes aluminum sub-table for stacking of tooling
  • Tooling Sold Separately

For additional information and shipping quotes...

Contact Stan at First Choice Industrial
Phone 678.642.9722
