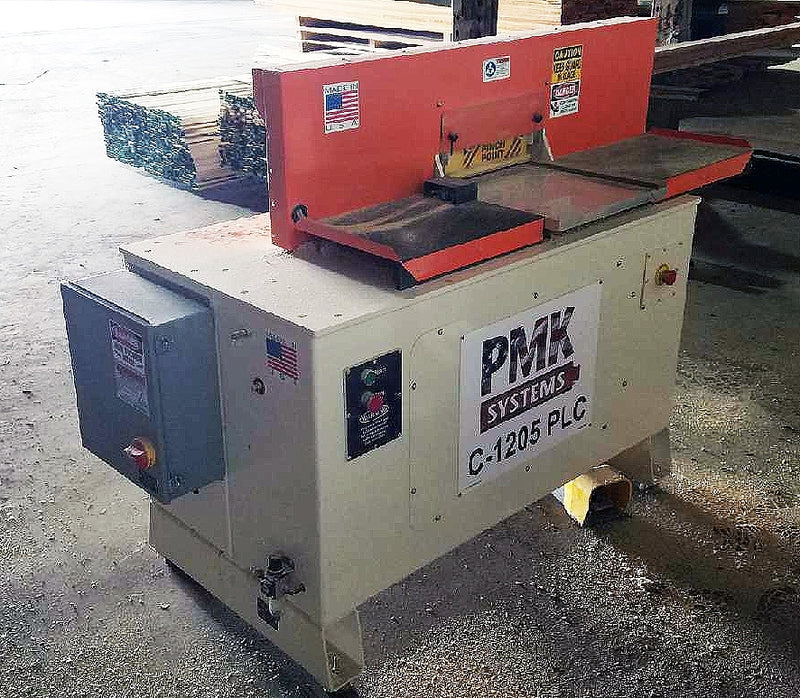

SOLD Used PMK Spindle Shaper - Model C-1205
Reliable - Heavy Duty
This used spindle shaper manufactured by PMK features a 52”wide 39” deep and 42” high foot print.
-Chip free coping or end-matching of squares or profiled parts without the need of a back-up piece.
-Two counter rotating spindles 1 ¼” Diameter – 7000 RPM
-7.5HP Motor 230/460 volts (please specify your voltage). @230 volts/30amps @ 460 volts/20amps
-Maximum cutter diameter 5” OD Minimum Cutter diameter 3.5” OD.
-Maximum size of part 2 ½” thick & 13 ½” wide. Minimum length of part 3” Maximus depth of cut ¾”
-Minimum width of part is determined by the O.D. of the cutter and if the part is profiled or not.
-Unlimited length of part.
-The C-1205 has External flow valve that allow you to adjust the speed of the sliding table according to the thickness width & density of the wood you are profiling.
-NEW Safety lenses in top of hood to check rotation of spindle
-New up-graded PLC Controller
-Cycle time adjustable from 5 to 10 seconds
-The C-1205 has the capacity to stack tooling. Maximum two cutters per spindle.
-Dust Hood with 5” port. CFM’s required 1000
-THK style rails for guidance of carriage stroke and hold down clamp.
-Side pressure clamp insures proper alignment with fence.
-The C-1205 has a small foot print 52”wide 39” deep and 42” high.
-The C-1205 meets UL & CSA Electrical Standards.
-Machine weight 1 439 lbs. (+/-).A PMK patented design provides chip-free coping or end-matching of squares or profiled parts without the need of a back-up piece or chip-breaker. The C-1205 has a small foot print and the capacity to stack tooling which takes less than 2 minutes due to PMK's design. Features include THK style rails for the guidance of carriage stroke and a hold-down clamp. The side pressure clamp ensures proper alignment with the fence. Machine features and specifications are detailed on the attached page.
