SOLD Used Oliver Membrane Press with Double Shuttle Tables - Model: 8015
This used membrane press with double shuffle tables features two 4' x 8' PLC controlled working tables to speed up production time so while one is being loaded the other is simultaneously being pressed.
- Internal Table Length - 50 x 102.36 in
- Table External Length - 53.15 x 105.5 in.
- Working Height - 3.15 in.
- Working Table - Auto Two Table
- Motors of the Working Table - . Kw x 2 Installation of the Toggle - 4 units
- Hydraulic Pump - 15HP
- Hydraulic Cylinder - 80 mm Dia. x 2 units
- Capacity of the Heater - 37Kw Vacuum Pump - 1.5 Kw
- Weight of Tables - 1.5 Tons.
- Capable of bonding PET PVC Thermo-Transfer foil and other films to MDF PB steel aluminum wood plastic or others.

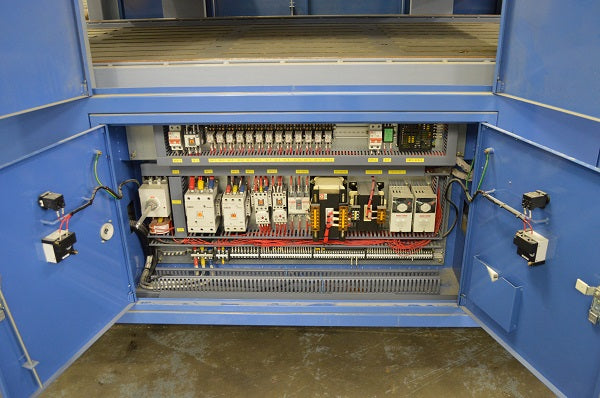

- Control panel allows the operator to easily adjust temperature pressure and time values
- (2) 4' x 8' PLC controlled working tables to speed up production time so while one is being loaded the other is simultaneously being pressed
