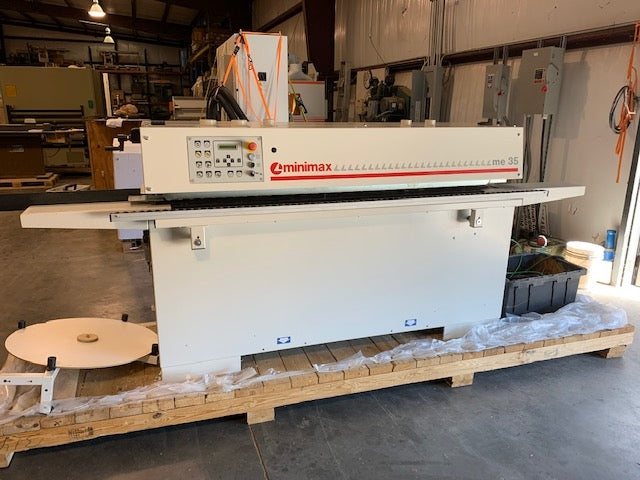

SOLD SCM Minimax High Frequency 2mm Edgebander with Pre-Milling Function - Model ME 35T
This high frequency edgebander with pre-milling function manufactured by SCM features a 7m/min feed speed and 57" x 131" footprint.
- Pre-milling function with 2 diamond cutters - Removable thickness is 0.5mm to 2mm.
- Trimming Unit End cutting unit includes radius function The radius part of the cutter is used to trim 2mm edges. And chamfered thin edges. The straight part is used for trimming wood edges up to 5mm thickness.
- Glue scraping Unit
- Brushing Unit
- 2 independent motors to perform the cleaning and polishing action.
- Multiple high-frequency motors used throughout this edgebander to reduce vibration and provide the highest quality finish at all times.
- Automatic lowering of the glue pot temperature after a temporary non-use of the machine.
- Automatic edge loading system for rolled edges with shear device for 3mm max. thickness edges and 50mm height 7 meters/min feed speed
- Electrical requirements: 230v single phase 34 amps
- Machine weight: 1347 lb
Contact First Choice Industrial today. We are a full-service and factory trained SCM MiniMax distributor authorized to sell SCM MiniMax machinery nationwide.
