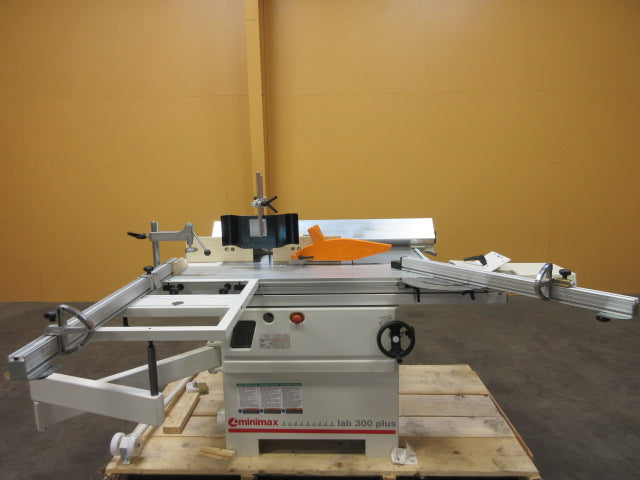

SOLD Used - MINI-MAX LAB 300 PLUS
Standard Equipment:

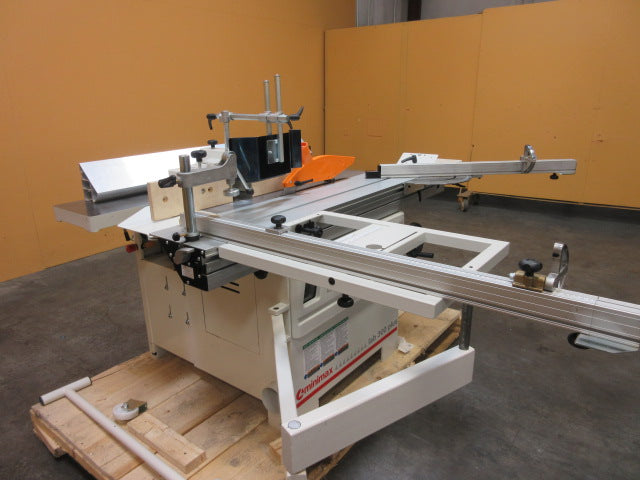

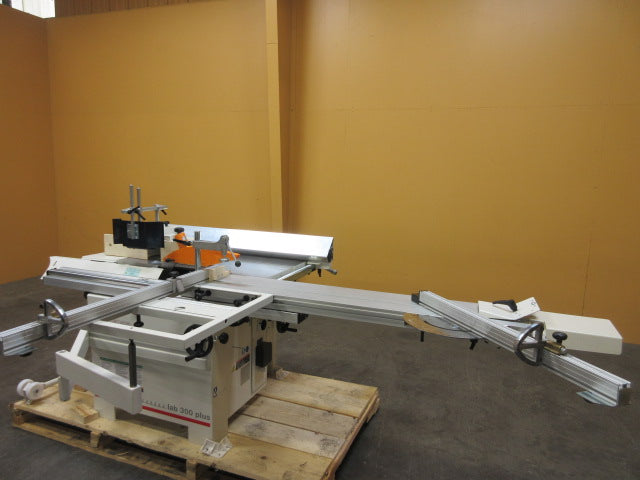

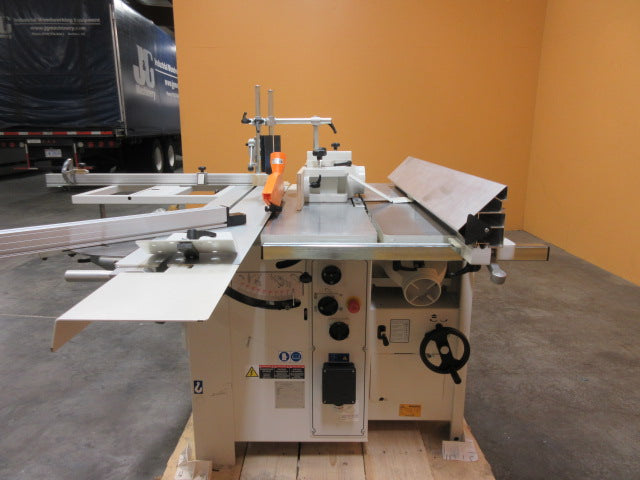

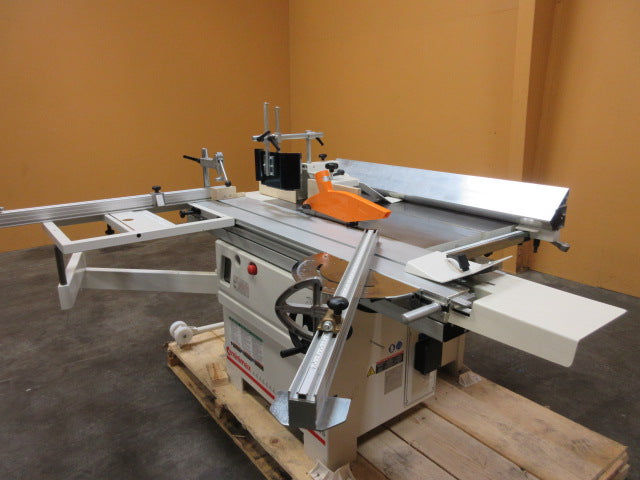

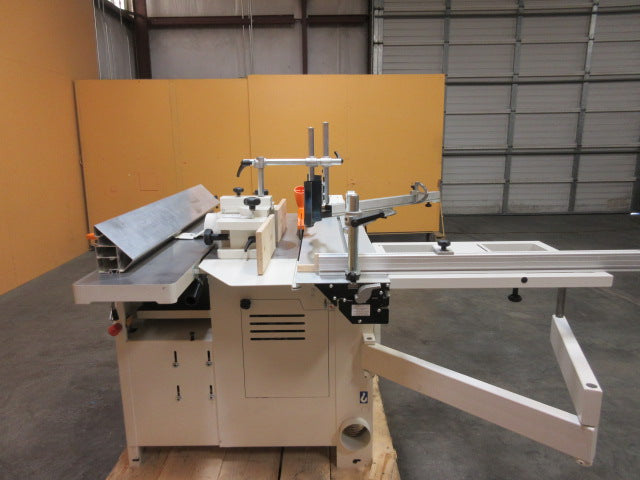

Combination machine consisting of sliding table saw Shaper planer and jointer
(3) Independent 3.4 HP motors
5.5' Sliding table on precision ball bearings with outrigger and swing arm
Scoring system independently adjusted

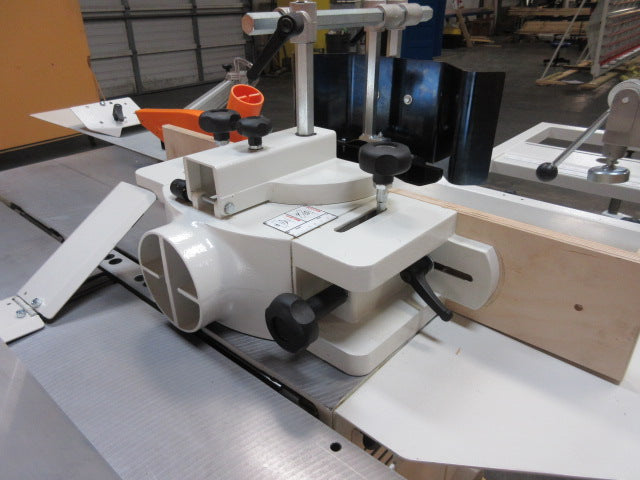

Micro-adjustable shaper fence
Miter fence and eccentric hold-down clamp

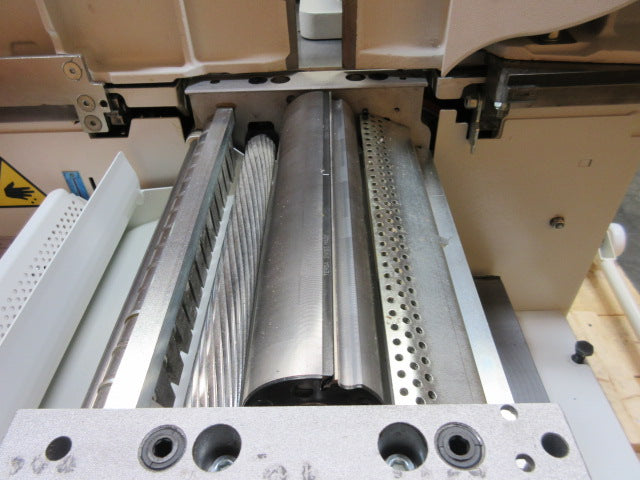

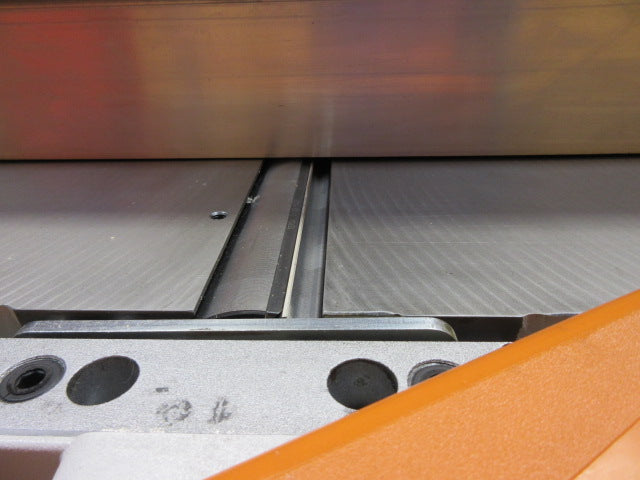

Three-knife "Tersa" quick-change cutterhead
Jointer tables open torward the machine and away from operator
Mobility kit
Machine weight: 1 100 lbs
Electrical requirements: 30 amps @ 230 V 1 Ph
Dust collection requirements: 1000 CFM

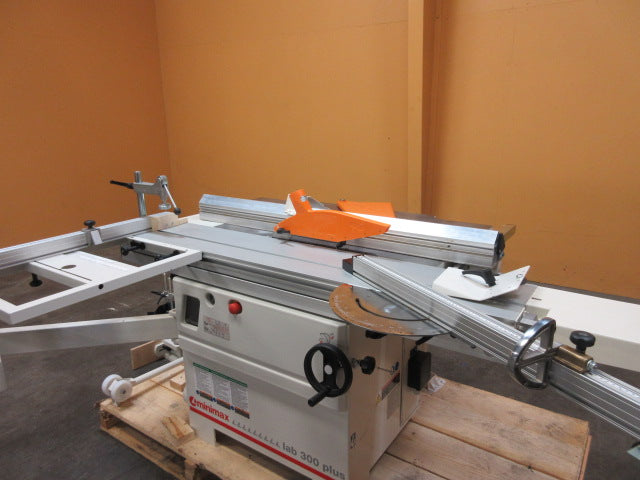

Sliding Table Saw Specifications:
12.4" (315 mm) Maximum blade diameter
80 mm scoring blade diameter
3.9" Maximum depth of cut
10.5" Wide x 65" Long sliding table
31.5" Rip capacity

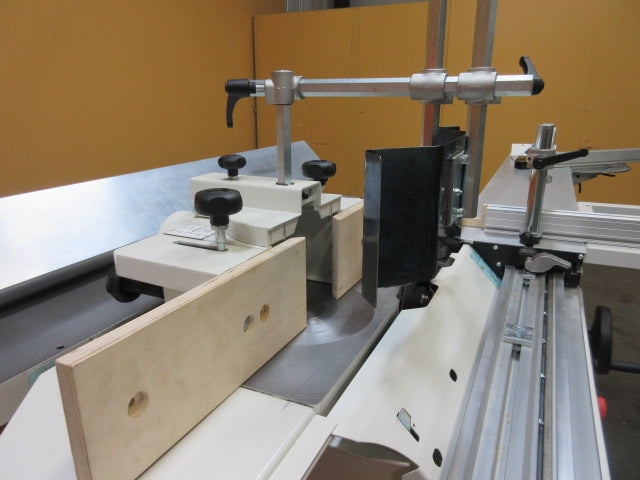

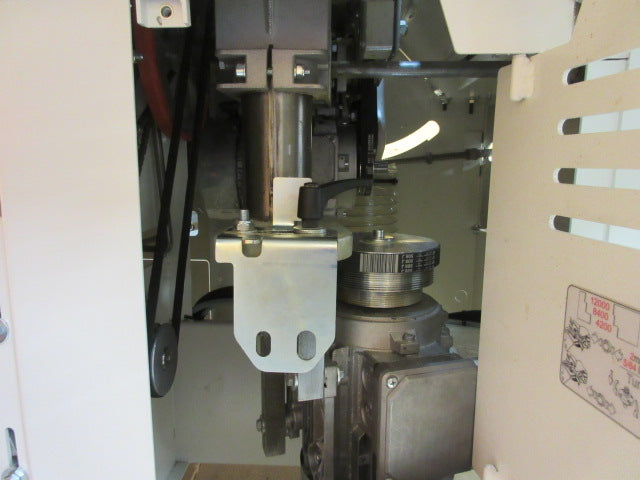

Shaper Specifications:
1-1/4" Spindle diameter
4" Capacity under nut
(3) Spindle speeds: 4000/7000/9000 RPM
Maximum tooling diameter: 8.25"

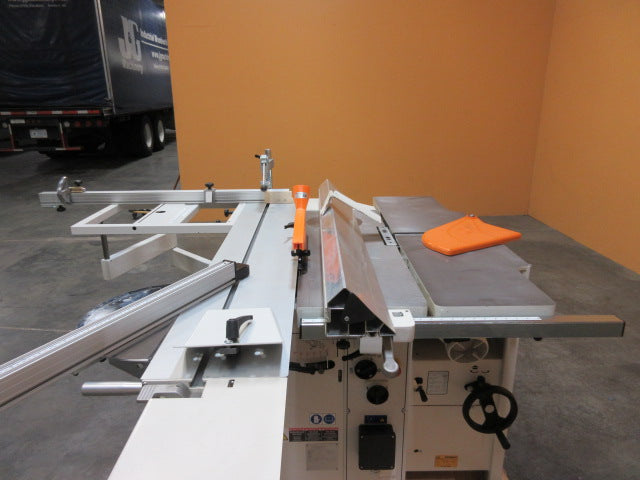

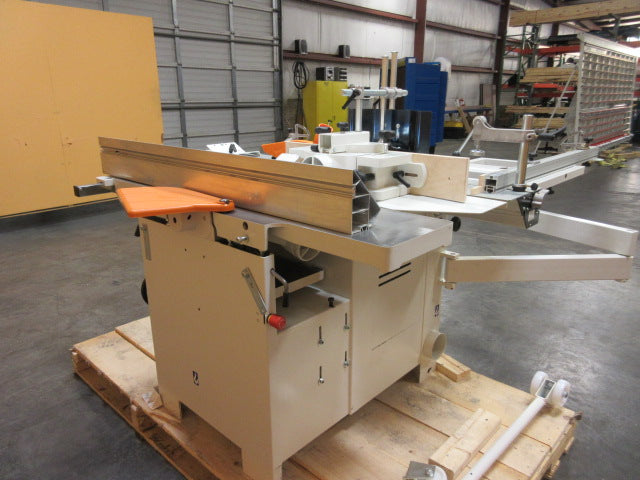

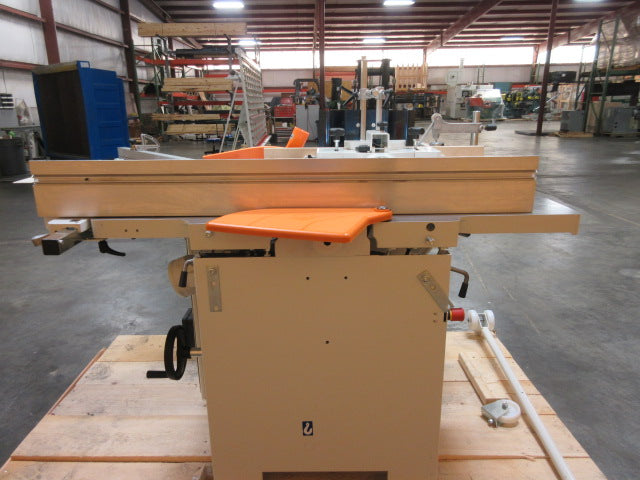

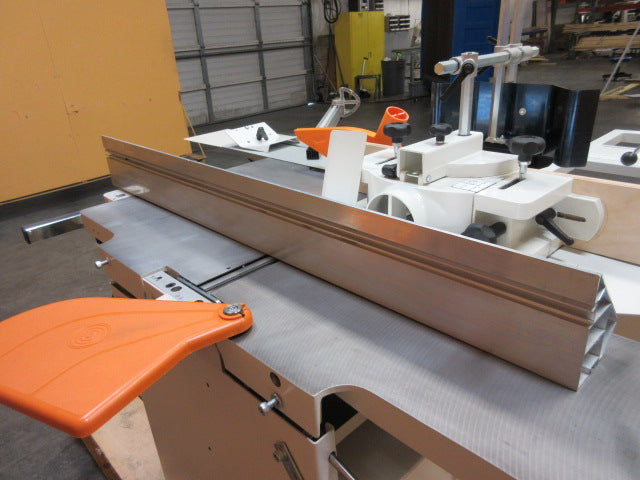

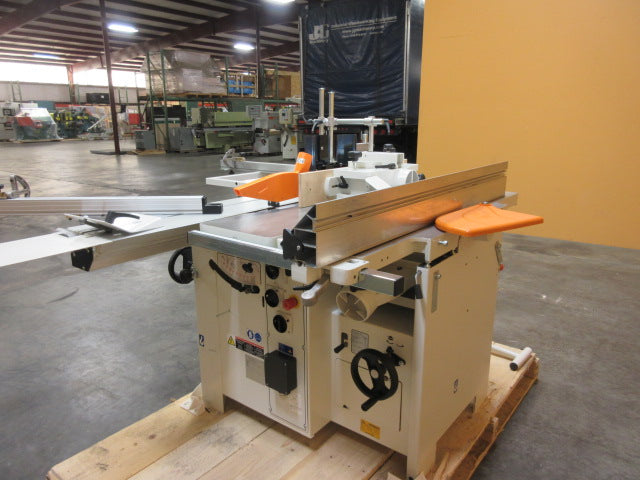

Jointer Specifications:
12" Working width
51" Overall table length
5 200 RPM cutterhead speed
0.125" Maximum depth of cut

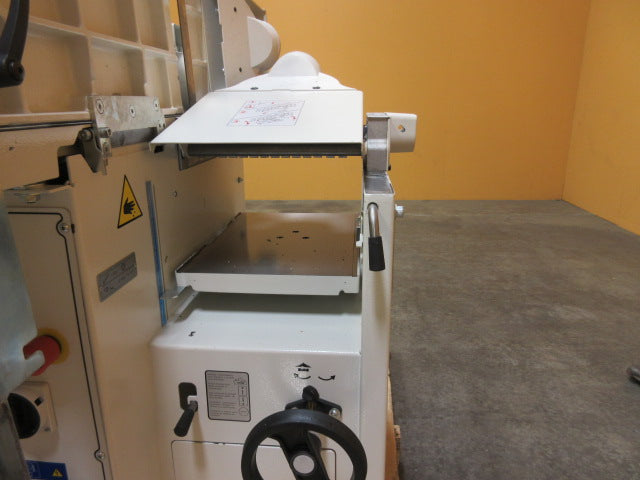

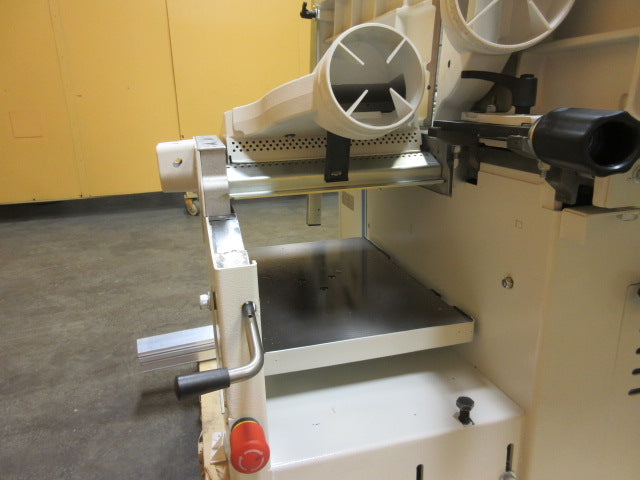

Planer Specifications:
12" x 18" Table size
8.5" Maximum working thickness
0.125" Minimum working thickness
1/8" Maximum stock removal
23 FPM feed speed
