Description

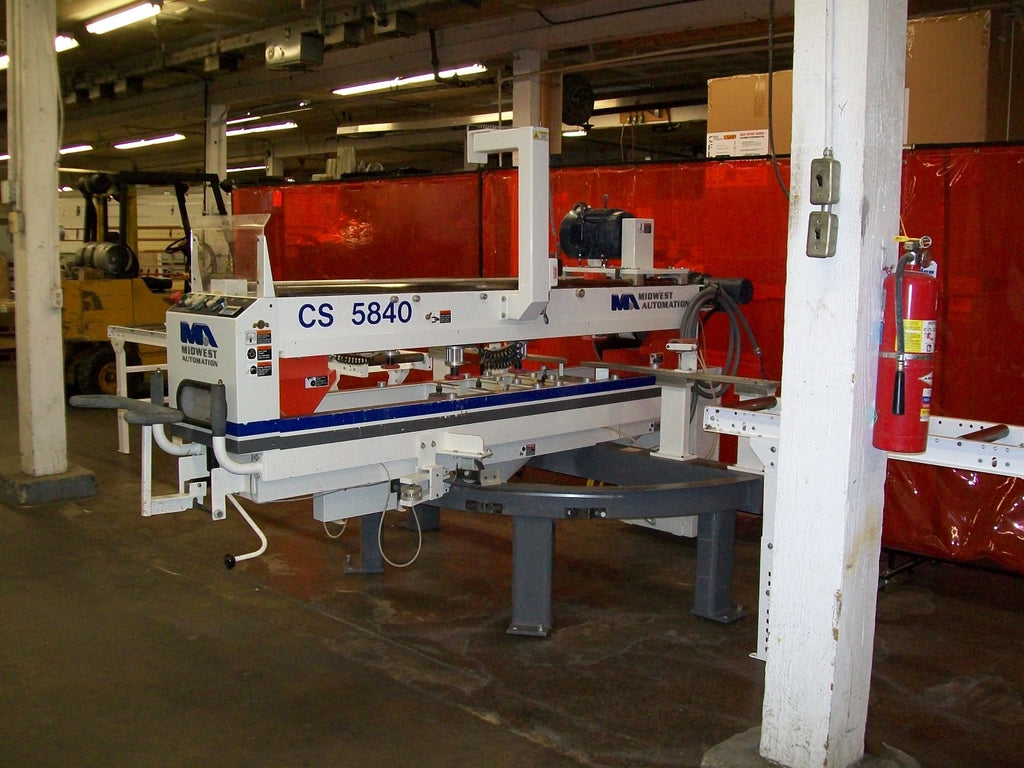

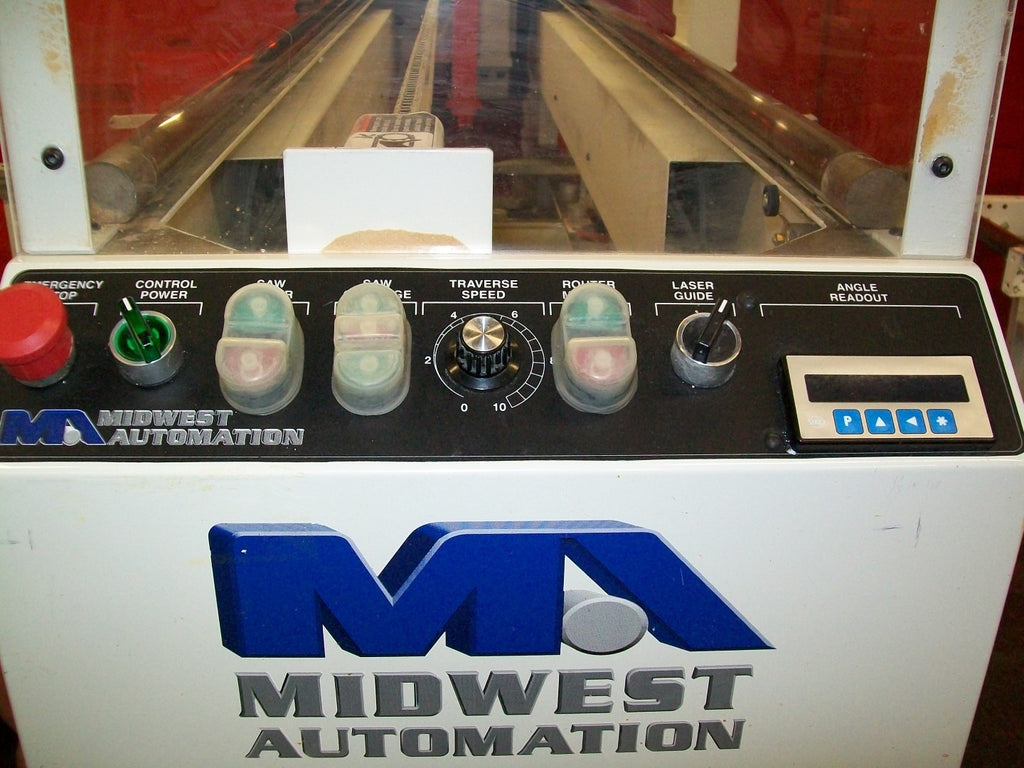

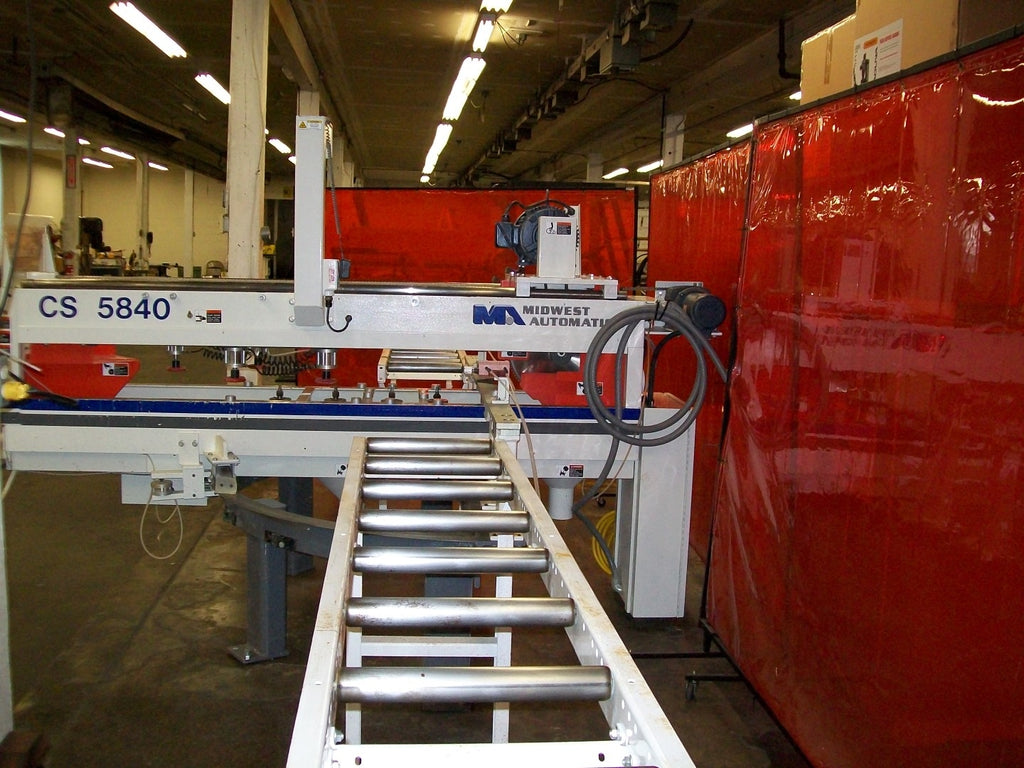

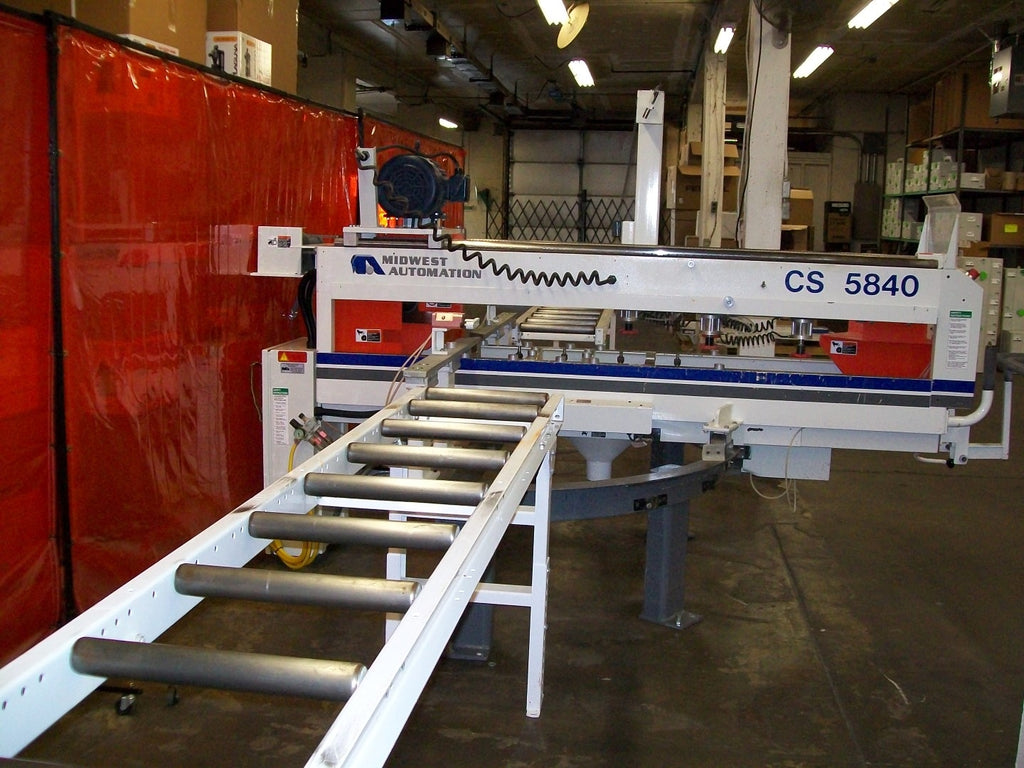

SOLD Used Midwest Automation Postforming Countertop Saw - Model - CS-5840
Year: 2004Serial Number: CS58402280-0403
This used postforming countertop saw manufactured by Midwest Automation features a 5HP saw arbor motor.
Technical Specififations:
- maximum cutting length of 58" at 90 degrees and 40" at 45 degrees at 3/4" thick
- maximum cutting height of 5-5/8" with build-down
- maximum backsplash height from bottom of deck is 4-7/8
- with miter cut fixed positions of 22-1/2 (R & L) 45 (R & L) and 90 degrees (pneumatically activated index pin secures position)
- saw blade capacity of 16" diameter
- 5 H.P. saw arbor motor
- electrics wired for AC 3/60/230 volt operation
- 1/2 HP feed motor delivering feed speeds of 0 to 45 F.P.M.
- four (4) mortising stations with 1-3/4 HP router motors
- two (2) pneumatic holddown clamps per side
- 10 long x 18" wide infeed/outfeed roller tables with rollers on 12 inch centers
- laser guideline kit
- pneumatic backsplash clamp
- variable miter kit with digital readout
- includes all related equipment including an operating manual
Contact First Choice Industrial today
Phone: 678-642-9722
Email: sales@firstchoiceind.net
