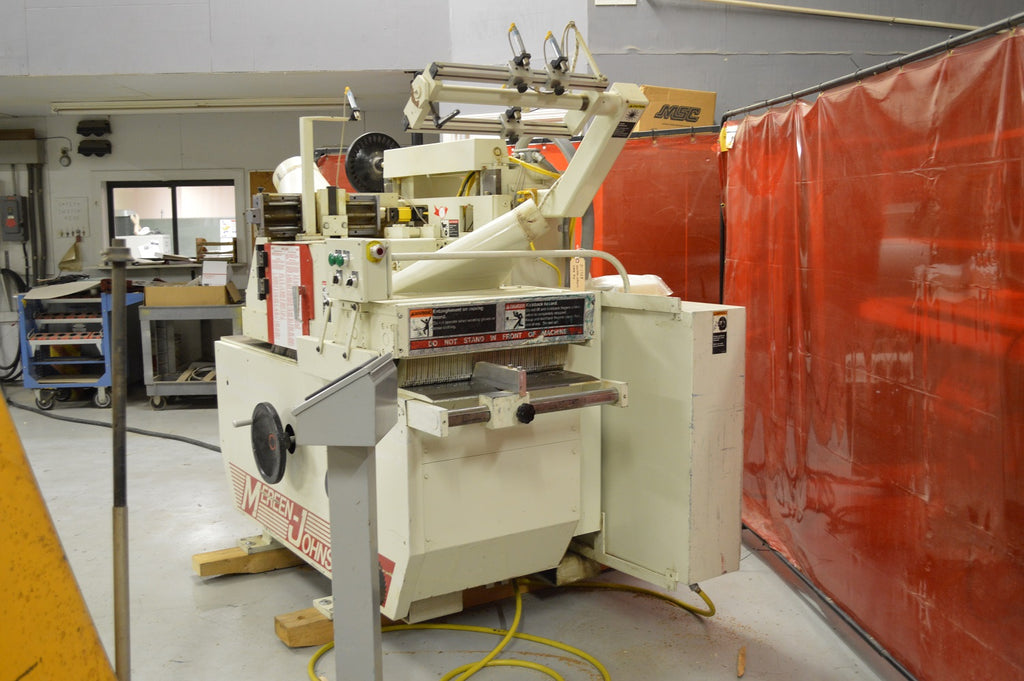

SOLD Used Mereen-Johnson Gang Rip Saw - Model: 312-DC-SR-1L
This used gang rip saw manufactured by Mereen-Johnson features one moveable blade and a 3600 RPM direct drive motor.
Technical Specifications:
- (1) MOVABLE BLADE
- (1) independently adjustable select saw assembly with traveling shoe hold-down
- powered horizontal adjustment at nominal 4 in. per second
- 1 in. min. distance between adjustable saw and outboard fixed saw
- 12 or 14 in. diameter face mounted saw blades
- Capacities: 12 in. arbor capacity 3 in. thickness capacity
- w/ 14 in. diameter saw blade 22 in. minimum part length
- Main Motor: 50HP
- 3600 RPM direct drive motor
- 3 HP feed motor 30-150 ft. per minute feed rate

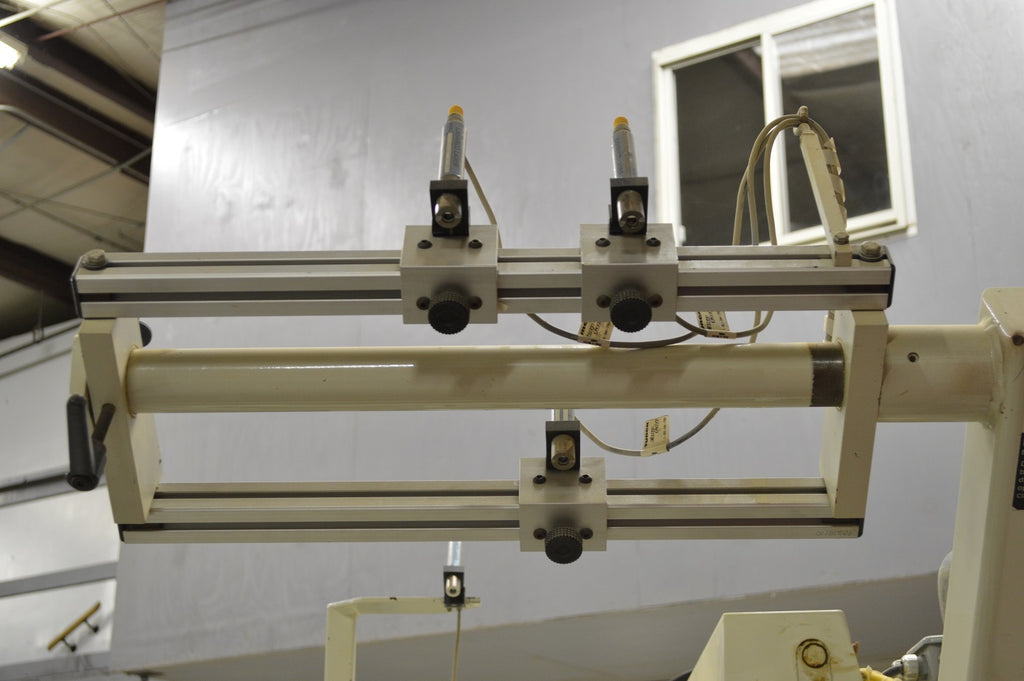

- 12 in. x 2-9/16 in. diameter arbor with 1/2 in. x 1/8 in. double key w/ laser guide lights
- Color touchscreen interface mounted in freestanding control pedestal pressure head includes (4) 3 in. diameter air loaded overhead idle press rolls (2) spring loaded traveling shoe hold-downs
- 1-1/8 in. minimum between camlock mounted saw blades using moving shoe hold-downs
- Anti-kickback fingers
