SOLD/ ARCHIVED Used Accurshear 10 Gauge Hydro Mechanical Shear - Model 613510



SOLD/ Used Accurshear 10 Gauge Hydro Mechanical Shear - Model 613510

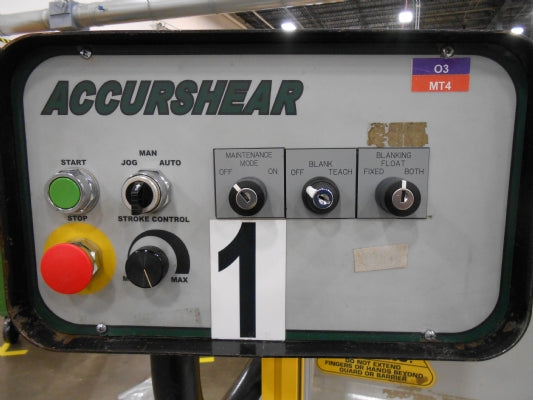

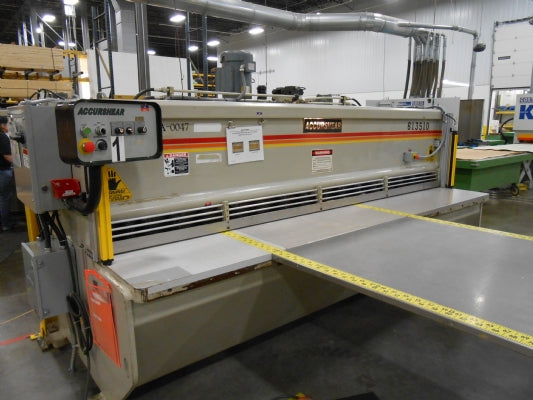

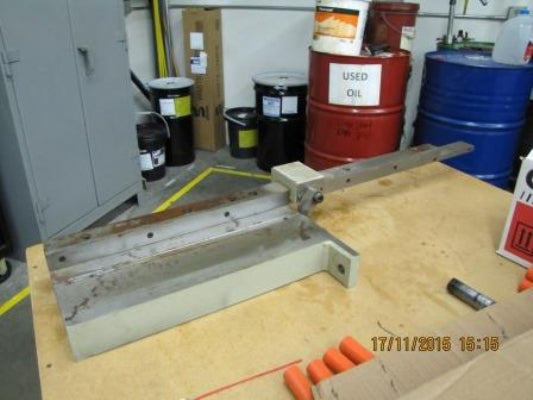

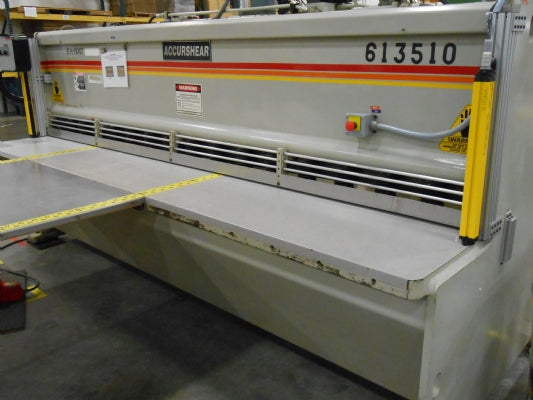

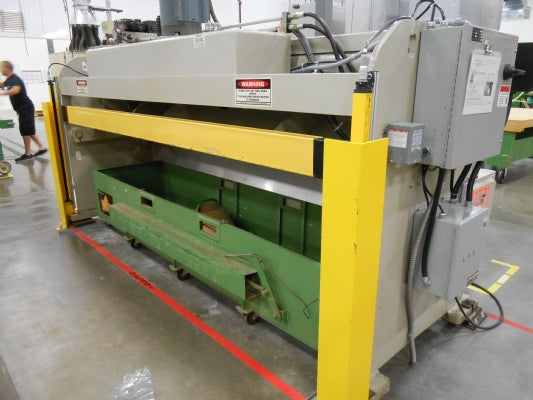

Used Accurshear Model 613510 10 Gauge Hydro Mechanical Shear; having a 10 foot length capacity; equipped with a 1" x 3" x 114" long knife size; with sixteen (16) hold-downs which applies a hold-down tonnage of 16 tons of pressure; having a capacity of 780 short strokes per minute and 25 full strokes per minute; with a 10 HP hydraulic motor and electrical controls wired for operation on AC 3/60/240 volts; with a three position foot control switch; with three mode operation (Jog Manual Auto); with a 24" power-operated back-gauge c/w: go to position with nine pre-selects L.E.D. readout in .001" with inch/metric capability precision acme lead screws with anti-backlash nuts with a flip-up backstop bar at 24"; with a 4" squaring arm c/w stainless steel scale with 1/16" increments and 1mm increments and flip-up stop; shadow light and line; adjustable stroke; with two hand slots in the table; finger guard protection and all related equipment. Serial Number: 2963.
