Used Homag One Sided Edgebander - Model SE9500


Price:
$20,900

Description

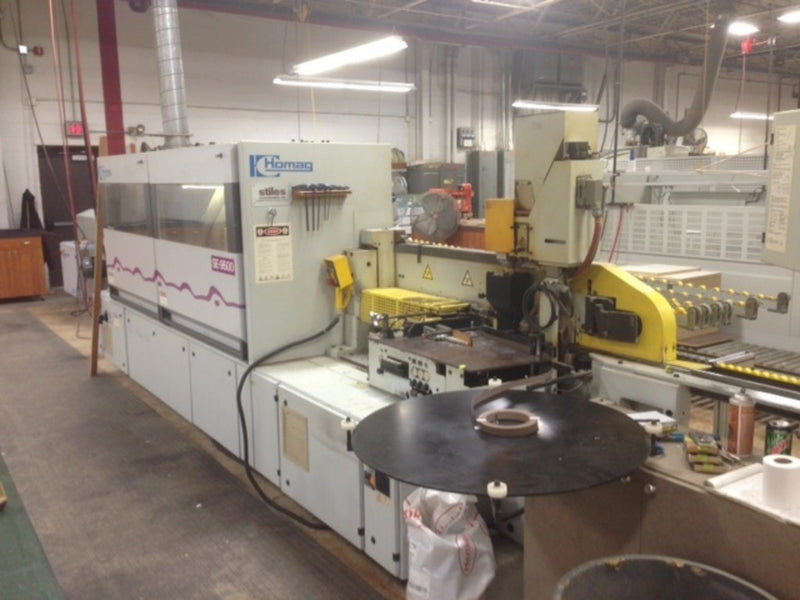

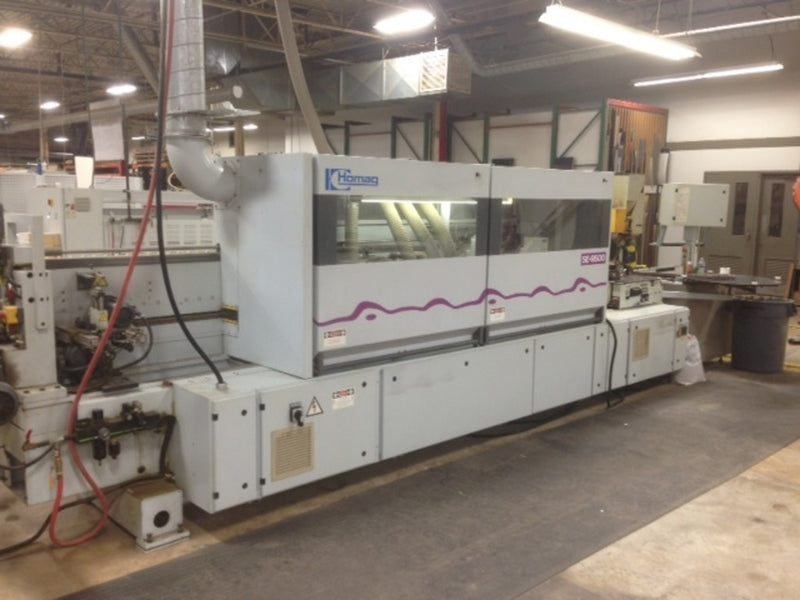

Used Homag SE9500 One Sided Edgebander

This used edgebander manufactured by Homag can be seen in operation and features Variable feed speed 18 M/min to 24 M/min (59 ft/min to 78 ft/min.

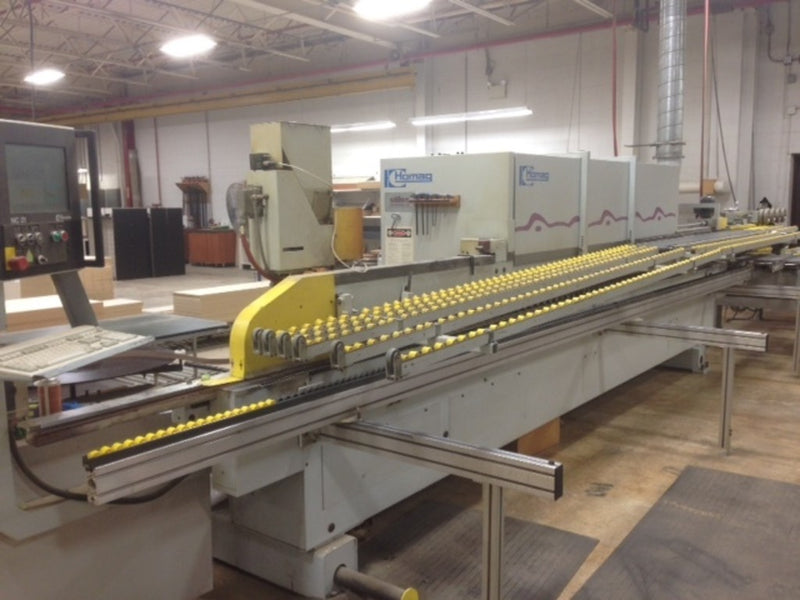

  •  Outboard panel support with roller track extendible to 800 mm (31-1/2″)
  • Working level 950 mm (37-13/32″)
  • Min. working width w/thickness 22 mm (7/8″) 55 mm (2-5/32″)
  • w/thickness 60 mm (2-3/8″) 100 mm (3-15/16″)
  • Panel overhang 30 mm (1-1/8″)
  • Work piece min. 12 mm (15/32″)
  • Thickness max. 60 mm (2-3/8″)
  • Edge thickness strips 0.4 mm to 20 mm (0.16″ to 25/32″)
  • Coils 0.3 mm to 3 mm (0.12″ to 1/8″)
  • Processing limits strips 900 mm² (1.39 sq. in)
  • Coils 135 mm² (0.19 sq. in)
  • Operating voltage *480 volt 3-phase 60 cycle
  • Control voltage 24 volt
  • Machine paint color gray RDS 240 80 05
  • Variable feed speed 18 M/min to 24 M/min (59 ft/min to 78 ft/min

For more information...

Phone 678.642.9722
Email sales@firstchoiceind.net
