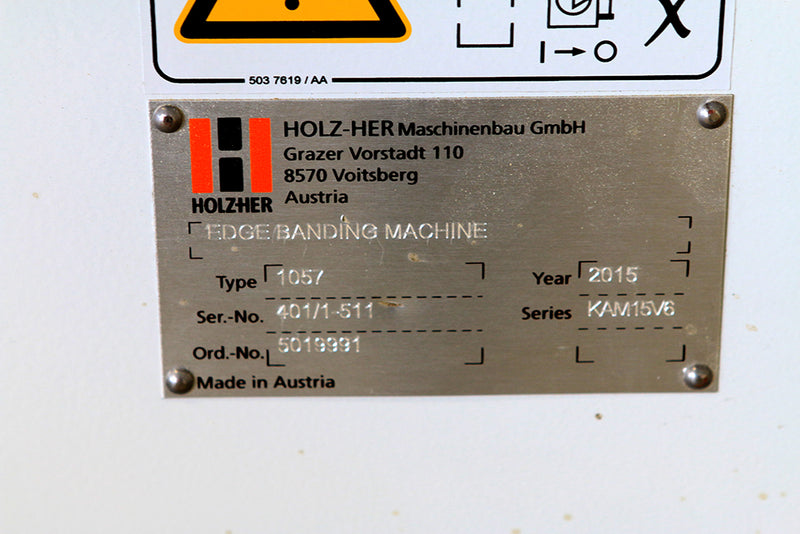

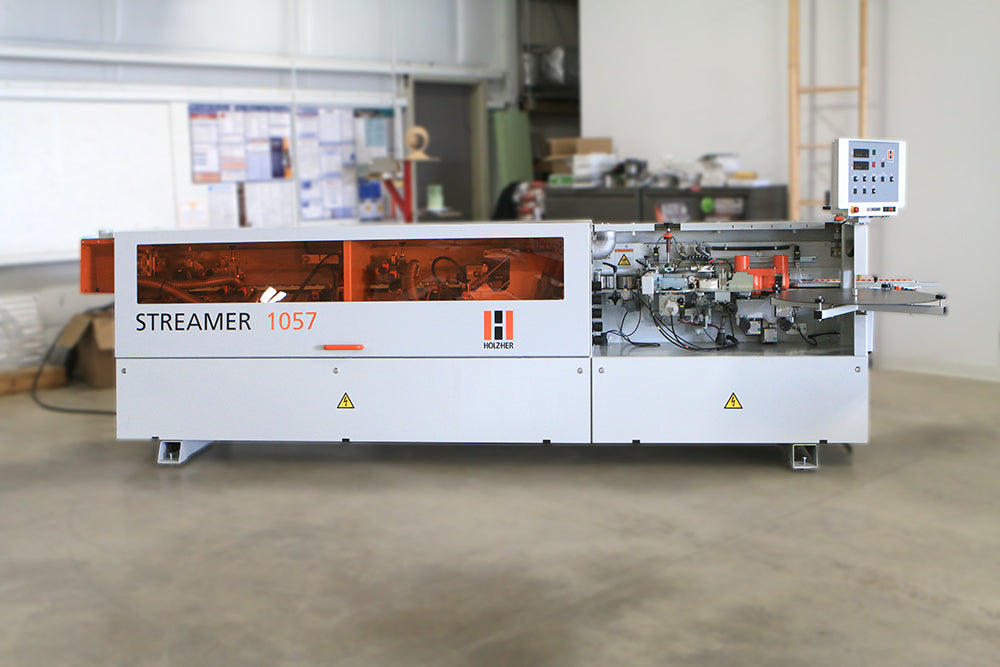

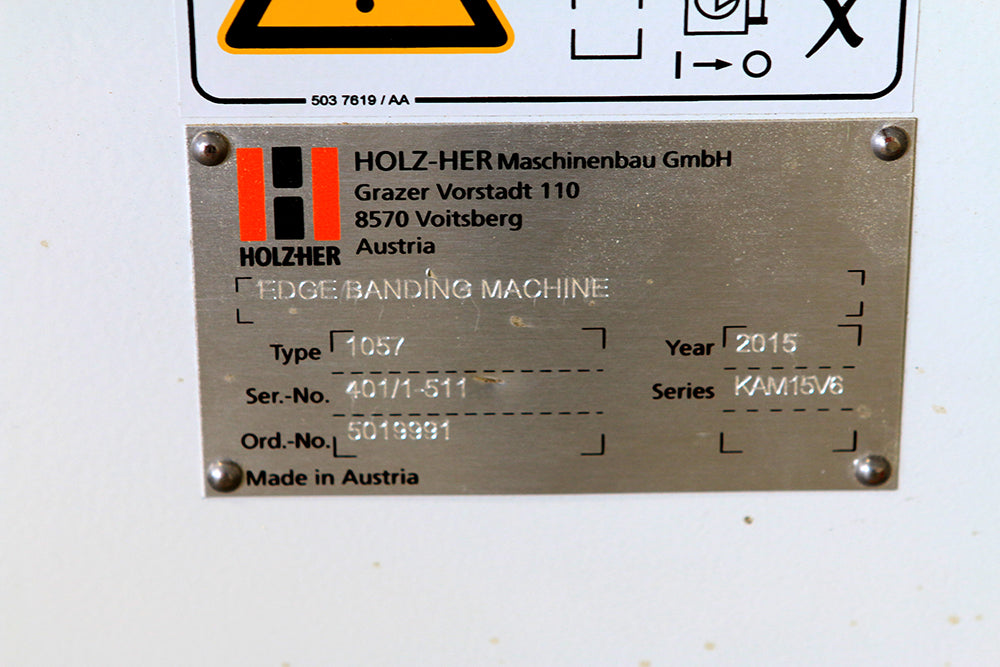

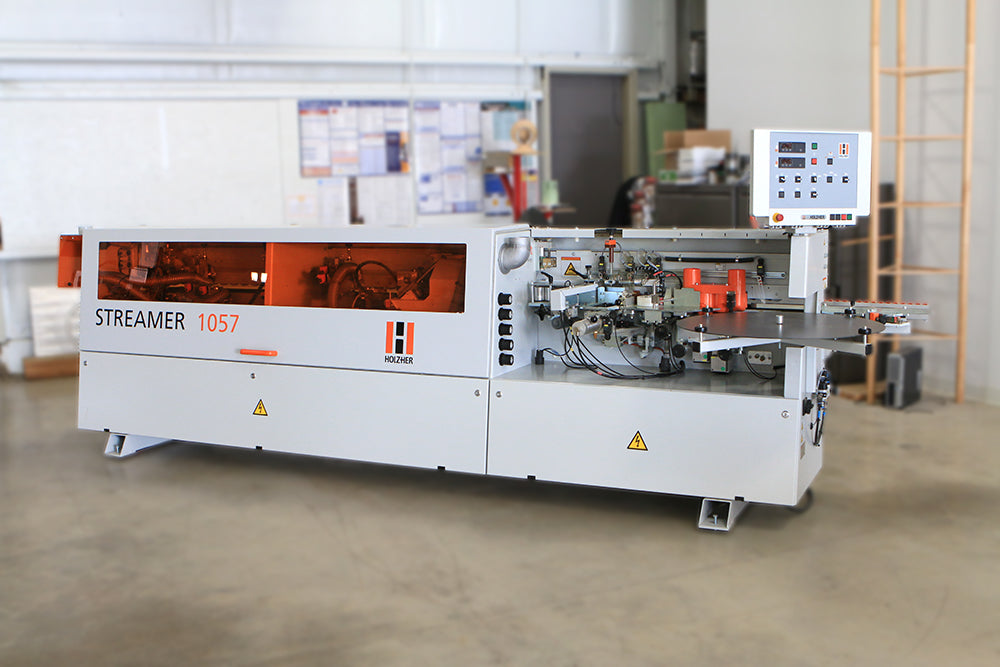

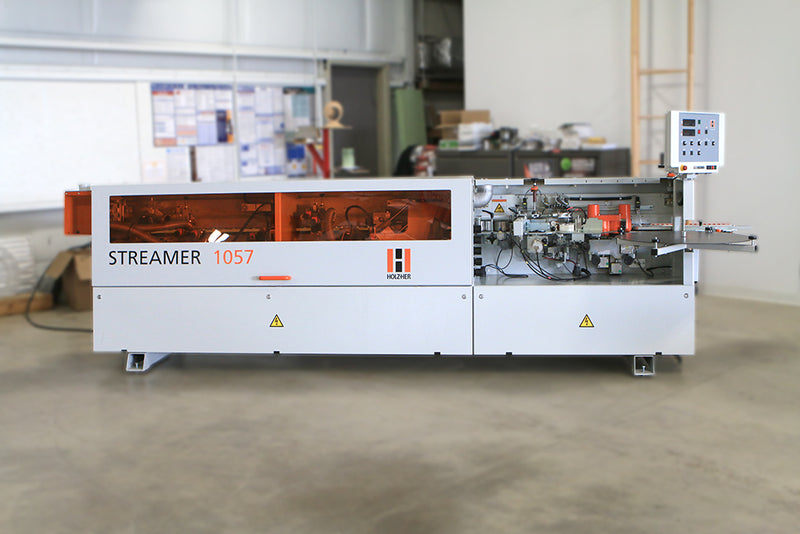

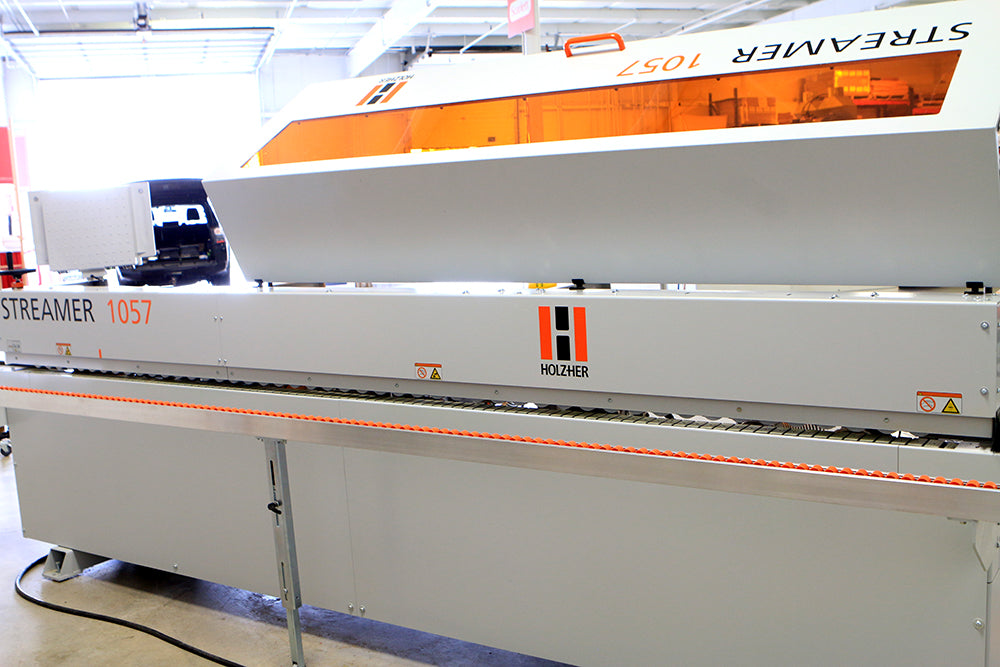

SOLD Used Holzher Edgebander - Model 1057 Streamer
This "like new" used edgebander manufactured by Holz-Her features advanced technology with a CLOSED APPLICATION SYSTEM in which the glue is enclosed in an air- tight chamber and cannot oxidize discolor burn or become contaminated with wood dust. This allows for optimum glue adhesion.. Additonally the glue is applied to panel by a patented GLUE NOZZLE for panels 6-60 mm thick. with precise control of all functions including begin and end.

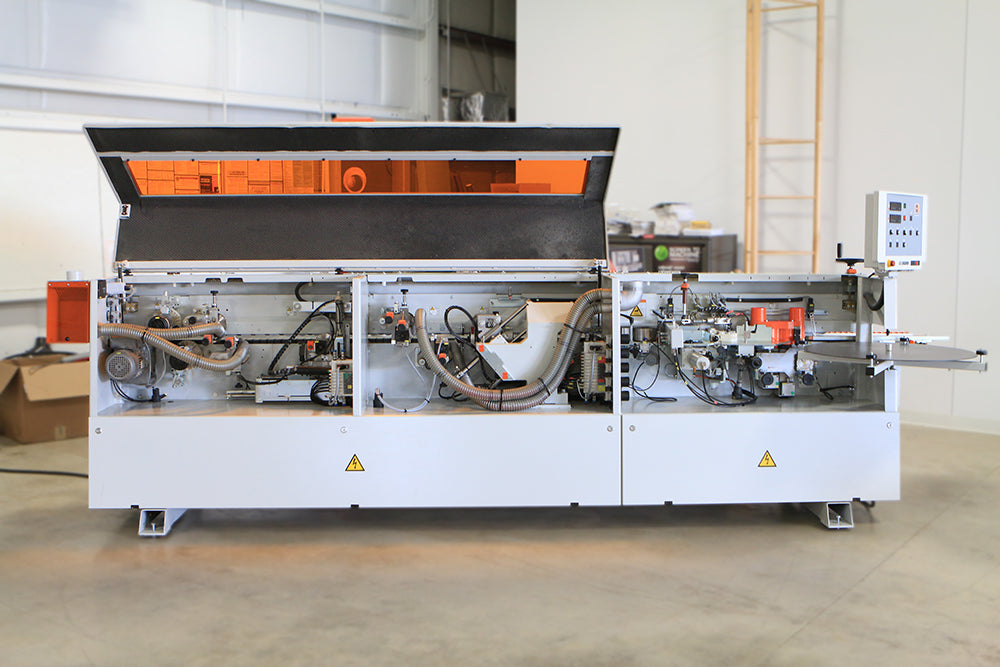

Basic Machine Specifications:
- Pre-Milling (FG201) with diamond tooling
- Magazine for coil and strips (1903)
- GluJet-S with hybrid technology (GJ-201)
- Pressure Section (1912-3)
- 2 Motor End Trimming (1918P)

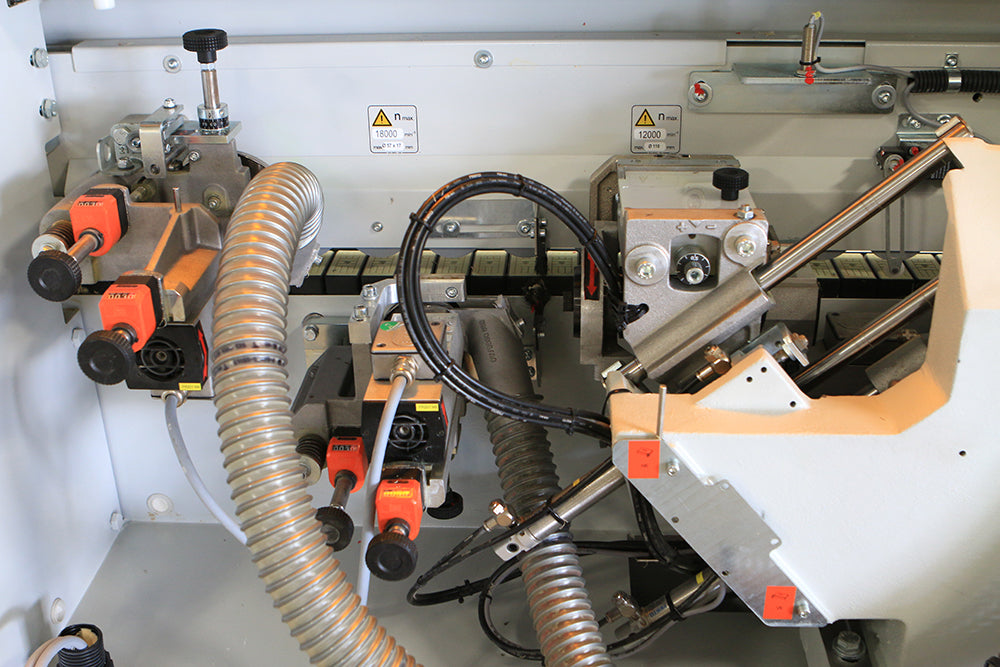

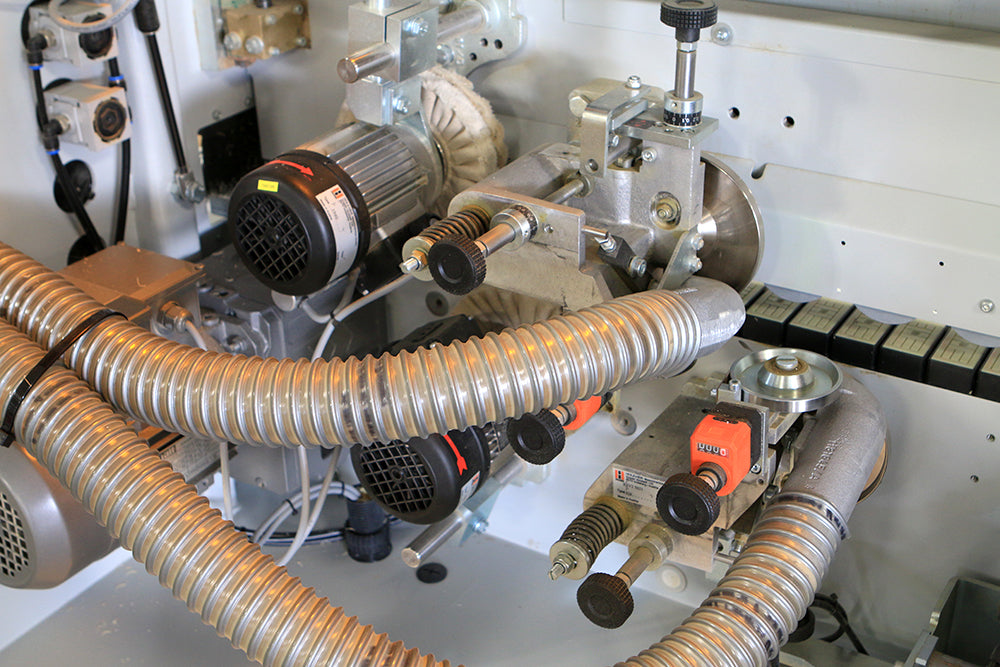

- Top and Bottom Trimming (FR201)
- Profile Scraping (1929) • Buffing (1940)

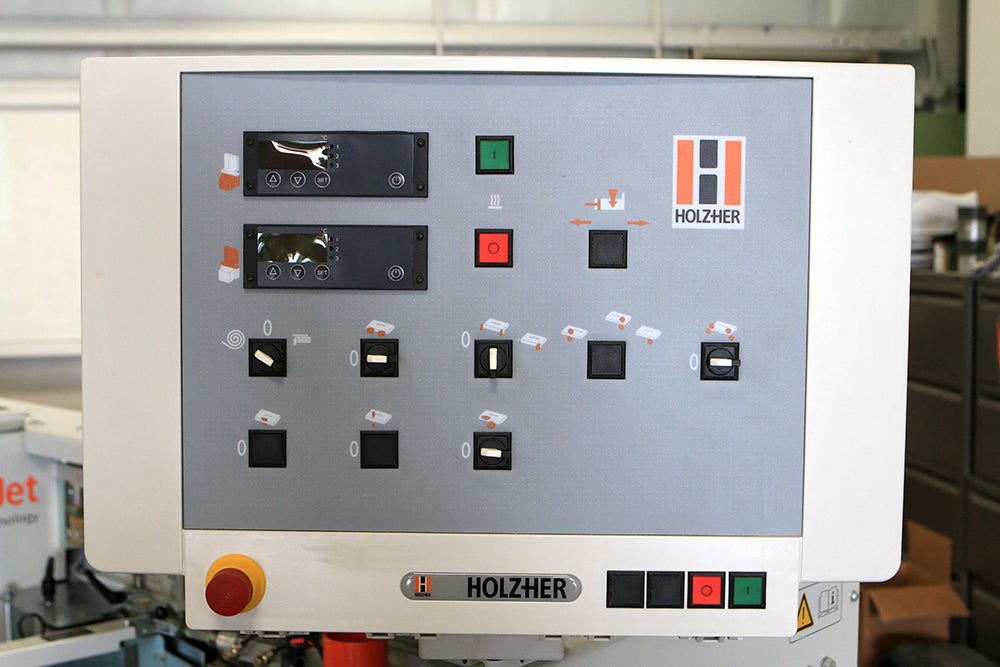

- Manual control panel
- Conveyor speed 10 m/min.
- Edge thickness 0 4 - 6 mm.
- Panel thickness 6 - 60 mm.
- One (1) centrally located hand-wheel for raising and lowering of the top pressure beam.
- Fixed workpiece support at 380 mm

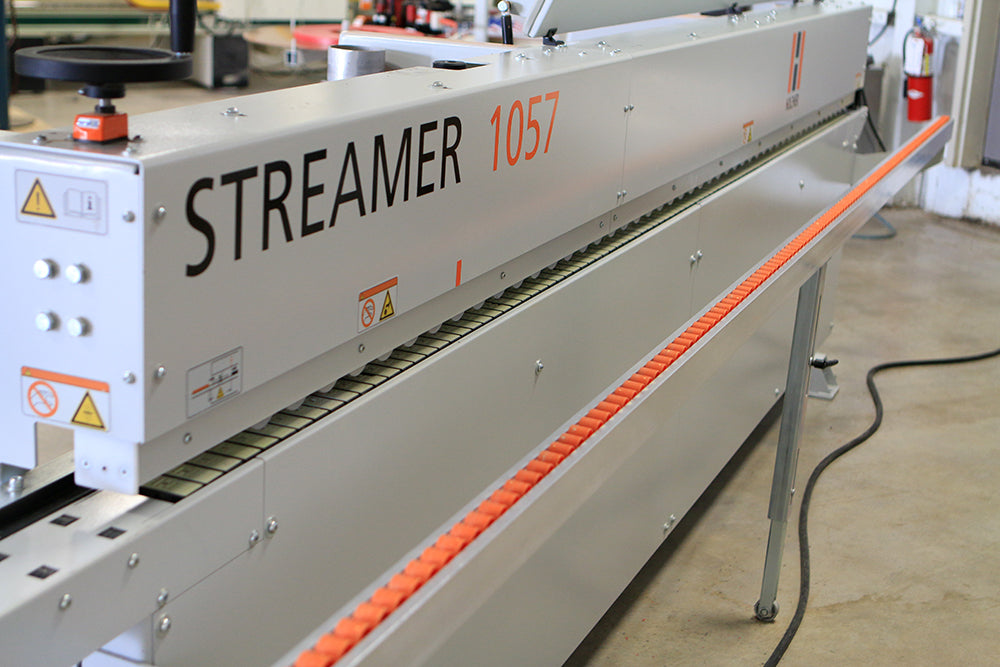

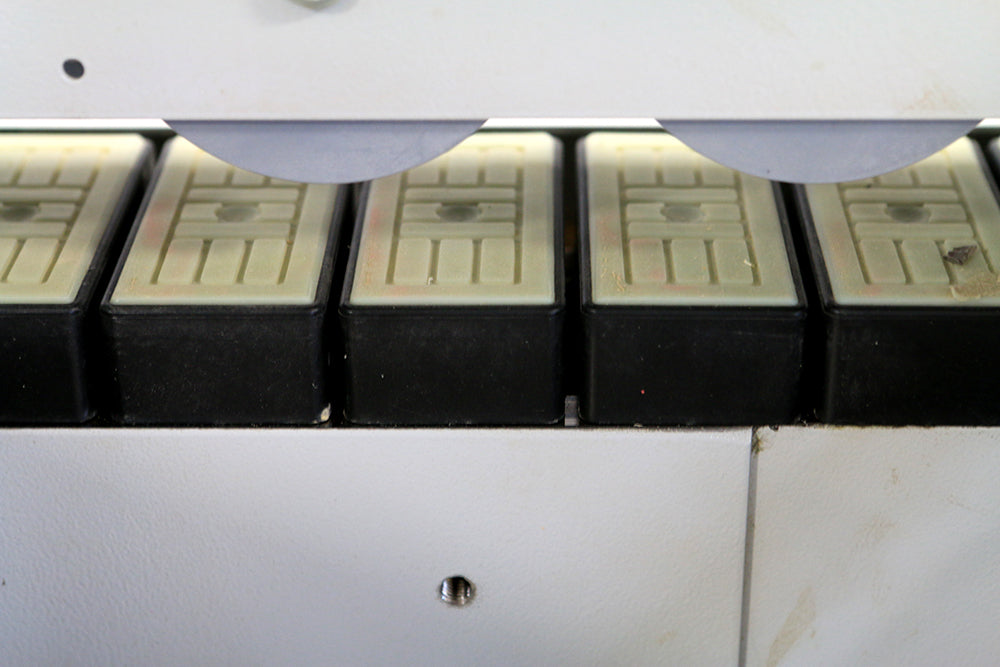

- Manual central lubrication of the transport chain
Air Requirement: 4425 mm / 174 in. 1410 mm / 56 in. 1610 mm / 63 in. 0.4 – 6 mm / .02 - .24 in. 65 mm / 2.5 in. Min. 350 mm (13.78 in) - Unlimited Min. 65 mm / 2.56 in 6 - 60mm / .23 – 2.36 in. 10 m/min / 32.81 ft/min 6 bar
- Electronic Contorl System Pre-Milling SystemI (FG201)
- Patented ProLock clamping system for rapid tool changes
- Two powerful motors 200 Hz 12 000 rpm
- 2 diamond cuttersØ70x48x30mm
- 1x 1 2 Kw cutting counter-clockwise
- 1x 0 8 Kw cutting clockwise
- Manual adjustment for cutterhead position
- Max. stock removal: Max. 3 mm milling on panels 6 -22 mm Max. 2 mm milling on panels 22-40 mm Max. 1 mm milling on panels 40-45 mm

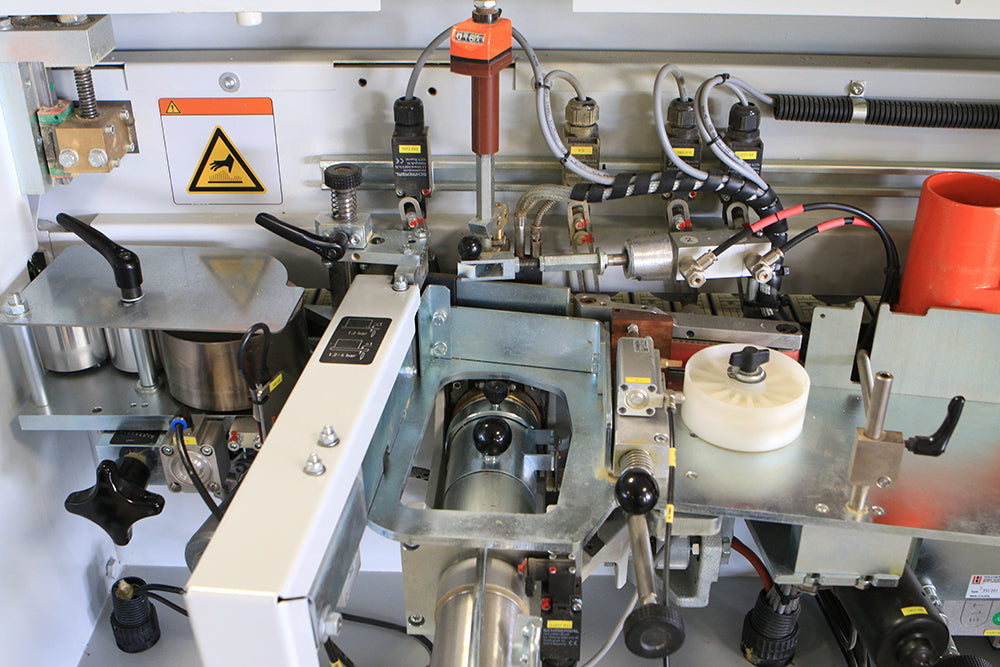

- Edgefeed Magazine (1903)
- Fully automatic feed of coils and strips
- Utilizes motion detector to ensure accurate
- Trouble-free positioning of edge material.
- Exclusive “TRACTOR-BELT” feed system to ensure accurate trouble-free feeding of edge material as well as optimum operator safety.
- Magazine table on rollers for smooth feeding of coiled material.
- Automatic guillotine for coiled material up to 3.0 mm. Version 15.6
- Easily set glue temperature with dual controls
- Simple off/on control switches for all units
- Magazine selector switch for coiled or strip edgebanding
Prominently positioned for easy access

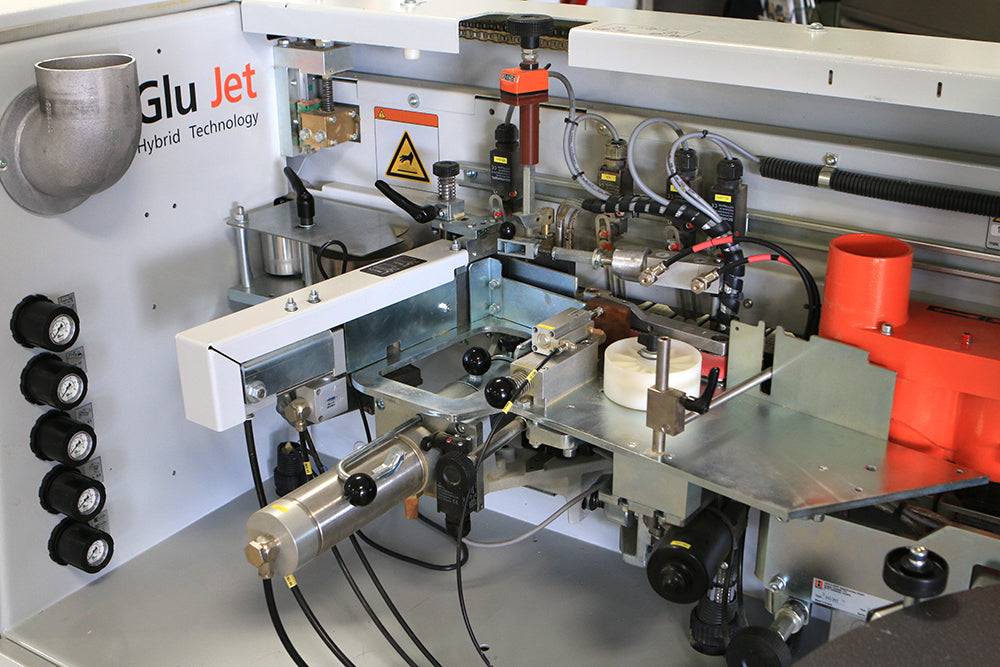

- GlingStation – GluJet-S with hybrid technology (GJ-201)
- Fastest heat-up time in the industry 2 - 3 min.
- Fastest & easiest glue color change 5-10 min.
- Can utilize and process all glue types as standard (EVA PUR PO)
- Equipped with HOLZ-HER'S exclusive patented "CARTRIDGE" glue system.
