SOLD Used General Dovetailer - Model: 40-050M1
If no preowned woodworking machinery is currently being listed in the category you are searching, call Stan the Woodworking Machinery Man at 770-861-0570 to check availability of incoming inventory, as our used machinery frequently sells before being listed.
Contact: Stan, the Woodworking Machinery Man
Phone: 678-642-9722
Email: stan@WoodworkingMachineryMan.com

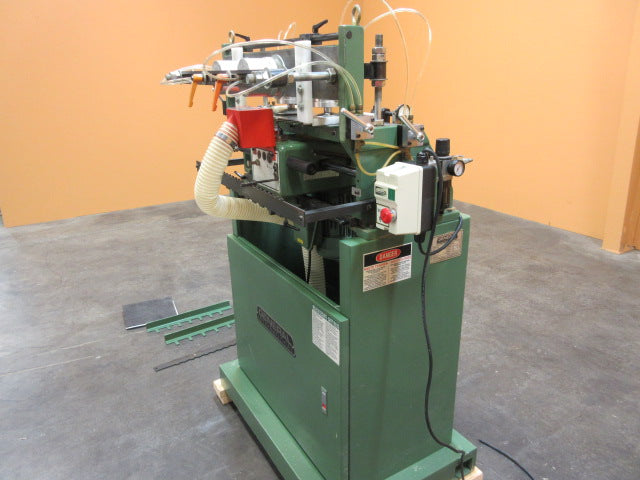

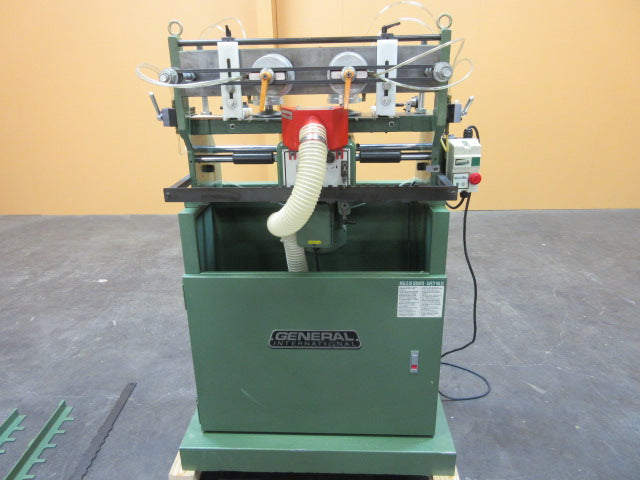

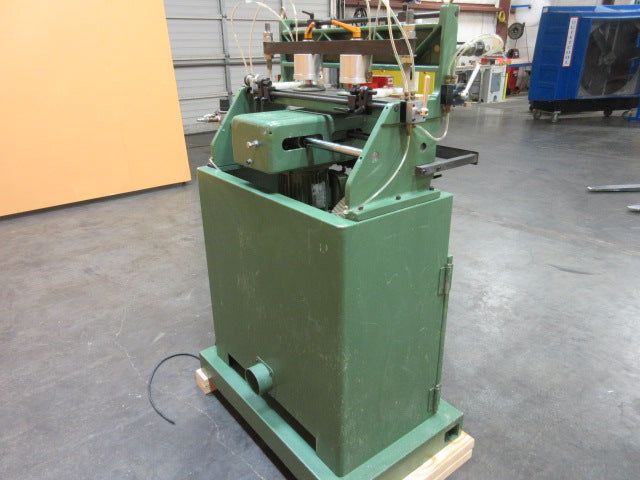

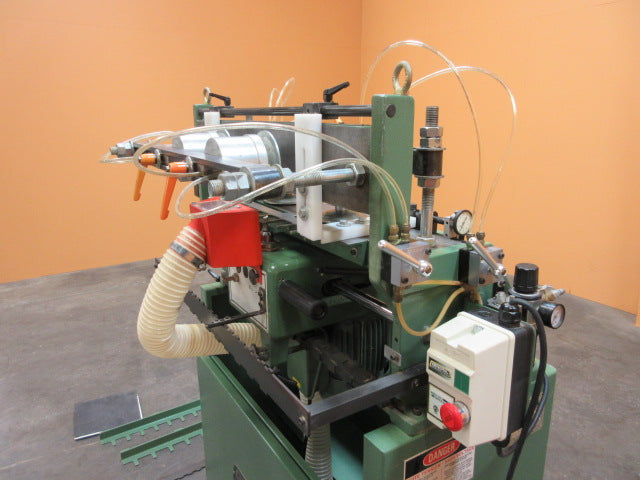

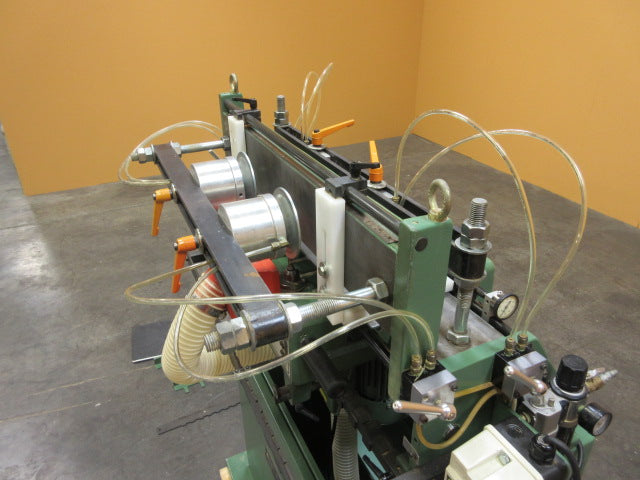

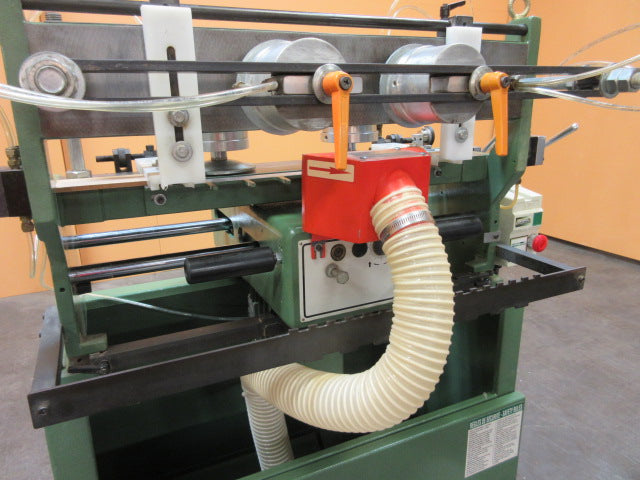

This used dovetailer manufactured by General features (4) separate dovetail centerlines (1" 1-1/2" 2" and 2-1/2").
Technical Specifications:
- (1) 18 500 RPM 1 HP spindle
- Minimum work piece size: 7-7/8" x 2-3/8"
- Maximum work piece size: 59" x 16-1/2"
- Minimum dovetail height: 3/16"
- Maximum dovetail height: 11/16"
- Minimum thickness on fronts: 3/8"
- Maximum thickness on fronts: 2-3/8"
- (4) separate dovetail centerlines (1" 1-1/2" 2" and 2-1/2")
- Pneumatic clamping
- Extra large softgrip handle provides positive control and comfort Visual stylus and template aids in guiding the carriage
- Material stops provide convenient position of the work piece
- 4" dust outlet
- 500 CFM minimum requirements for dust collection
- Shipping weight: 539 lbs.
