SOLD Used Drilling and Dowel Insertion Machine - Gannomat Model 280 - Type 281

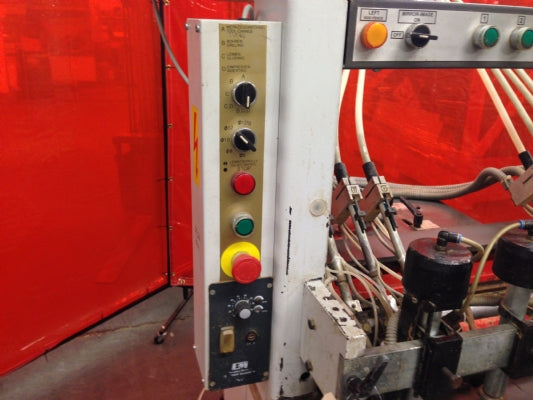

SOLD Used Gannomat Model 280 Type 281 Drilling and Dowel Insertion Machine; equipped with a twenty-three (23) spindle horizontal drilling head with spindles on 32mm centers; with eight (8) gluing and insertion heads set up for 8mm dowels (presently using pre-glued dowels) can be arranged to use 6 8 10 or 12mm diameter x 20 to 50mm long dowels; with four (4) pneumatic hold-downs with a clamping height of 0 to 90mm and with a 37" wide x 15" deep table area; with a dowel hopper and two glue tanks; with a foot pedal control switch for cycle activation and with electrical controls wired for AC 3/60/230 volt operation. Serial Number: 254-862.
