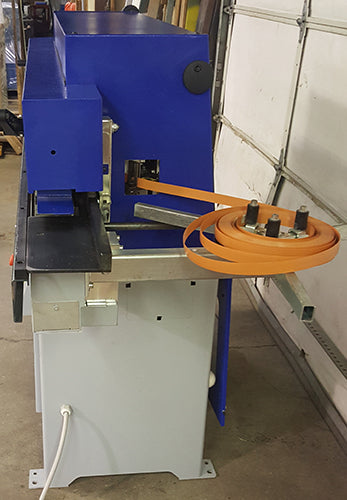

SOLD Used Edgebander - Felder Model G330



SOLD Used Felder Edgebander - Model G330

This used edgebander manufactured by Felder features a 0.4 - 0.5mm edge thickness.

Technical Specifications:

  • 250V
  • 3 Phase
  • 60Hz
  • edge thickness 0.4 - 0.5mm
  • work piece thickness 20-45mm
  • workpiece length: 70-210 mm
  • Coiled edge band feed support plate
  • Edge feeding is automatic for roller materials with a thickness of 0.4-3mm
  • 5mm strip glue in separate feed
  • Guillotine shears for cutting coiled edge bands uip to 3mm thickness in hard PVC/ABS
  • Glue unit for glue granulate from the Teflon-coated glue pot
  • Spring-loaded pressure unit with 1 pressure roller and 1 free-moving roller
  • 9 000 RPM 0.18 kW end trimming unit with Ø 80 mm 16 tooth HW-saw blades
  • Multifunction milling agregate
  • 12 000 RPM 0.22kW flush trimming radius trimming and bevel trimming tooling for 2mm radius
  • Radius scraping unit for R=2mm
  • mechanically controlled
  • Buffing unit with 2 motors at 1400 RPM and 900W

For additional information and shipping quotes...

Contact Stan at First Choice Industrial
Phone 678.642.9722&nbsp
