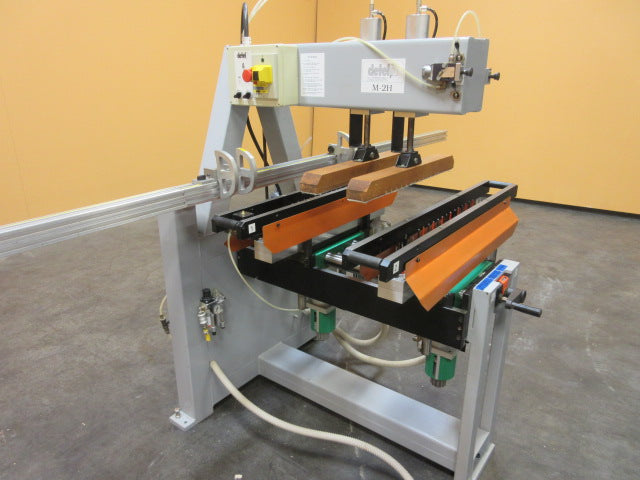

SOLD Used Detal Horizontal Borer - Model: M-2H
This used horizontal borer manufactured by Detal features pneumatic movement of boring head via foot pedal.
- (2) 22-Spindle 32 mm boring heads that bore vertically from the bottom
- Each head powered by a 2 HP motor
- Minimum distance between each boring head is 5"
- Maximum distance between each boring head is 25"
- Mechanical digital counters for each head position
- Heads can be operated individually if needed
- Each head is independently adjustable for drilling depth and stroke speed
- Pneumatic movement of boring head via foot pedal
- (2) Pneumatic hold downs that automatically activate when machine is cycled
- (2) Pneumatic pins for indexing multiple passes
- (3) Flip stops on back fence
- Machine weight is 960 lbs.
