Used Cefla Finishing LIne - Model TCF 404



Used Cefla Finishing Line TFC 404

This used finishing line manufactured by Cefla was primarily utilized as a top coat and sealing of cabinet door and face frame parts. The equipment can be utilized to seal and topcoat a wide variety of materials. It can also be used to stain.  But is not set up with stain wiping brushes (can be added after spray machine later if staining is desired). This line is totally automated in numerous ways.

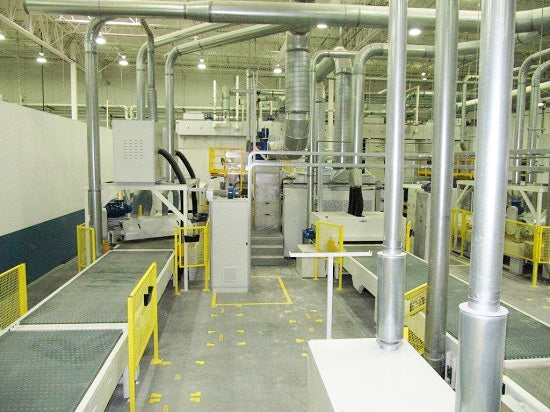

The line allows you to load the infeed and the laser eye automatically reads the height of the parts being sprayed and automatically adjusts the height of the denibbing sanders and spray machine to ensure the optimum adjustments for both. The first unit in the line is a loading conveyor that allows the operator to ergonomically load parts. The next station is a cross transfer/ infeed conveyor that either accepts parts from the initial loading conveyor or accepts parts being cross transferred from the return leg of the line. This allows for a stained component to go into the line to receive seal and topcoat layers on BOTH sides of the components without having to handle the parts more than one time. After the denibbing sanding machine there is 2 sections of manual sanding/ touch up area that allow up to 4 people to address any blemishes before going into a brush clean off machine. The parts then enter the spray machine that has 16 automatic spray guns.

This spray machine is a top of the line model that provides the best finish available off any automated spray machine on the market. The nature of the elliptical spray optimizes the spray pattern to give the softest coverage and perfect lay. The line can run at 12 meters a minute but can be run slower if wanted. The parts then exit the spray machine and go to an acceleration/ accumulation conveyor to prepare the parts in charges to enter the drier.includes the following equipment...

  • Cefla TNS-3650-RBT TCF 404 Infeed Loading Conveyor - S/N 06010/52.
  • Belt size: 54" W x 12' L.
  • Cefla GT180/5487/133/S TCF 404 Infeed Transfer Conveyor 180-degrees. S/N: 06010/53.
  • Combination Line 4 infeed Line 4 cross transfer Line 4 outfeed.
  • (2x) Cefla SM TCF 404 HD Filling Machine / Denibber.
  • Dual overhead brush thru feed belt conveyor. S/N: 06010/54 and 06010/65.
  • Cefla TNS 6870/A TCF 404 Transfer Conveyor. Belt size: 54" W x 22' L. S/N: 06010/55.
  • Sorbini VS/34-ACT/S TCF 404 Brush cleaner with Belt Cleaner. MP3ST026112. S/N: 06010/56.
  • Cefla EL1 TCF 404 Spraybooth.
  • Automatic rotary spray machine
  • 16-head automatic spray gun carousel (guns removed)
  • water wash type thru feed belt conveyor type SGM contol console
  • Allegro air filter unit. S/N: 06010/57.
  • Hydro Italia HYDRO FLO TY Spray Booth Water Treatment/Filtration System. Type 36M.
  • Stainless steel construction.
  • Closed loop system with recirculation pumps. S/N: EFL 1106046.
  • Cefla TR3P 2V/2S FIFO TCF 404 Stacking Conveyor.
  • 3-Tier stacker/accumulator conveyor belts. S/N: 06010/58.
  • Cefla TNS 4000 CT TCF 404 Transfer Conveyor.
  • Belt type. Cefla FV4/3500/133/116 TCF 404
  • Drying Oven.
  • Process supplied steam heat. 4-chamber with independent digital temperature controls multi-tier with chain driven vertical carousel. S/N: 06010/60.
  • Cefla TRC 2500/TC/TX TCF 404 Transfer Conveyor.
  • Power roller type. 56" x 8'. S/N: 06010/61.
  • Cefla TRC 2500/TC TCF 404 Transfer Conveyer.
  • Power roller type. 56" x 8'. S/N: 06010/62.
  • Cefla RIB/B3500 TCF 404 Turn Over Conveyor Flipper. S/N: 06010/63.
  • Cefla TRC 4000/2V-2S TCF 404 Transfer Conveyor. Power roller type. 56" x 13'. S/N: 06010/6.
  • (2x) Cefla TNS 5000/A TCF 404 Outfeed Conveyors. Belt Type. 55" x 16'. S/N: 06010/66 & 06010/67.
  • (2x) Cefla TNS 3500 TCF 404 Outfeed Conveyors.
  • Power belt type. S/N: 06010/71 & 06010/72.
