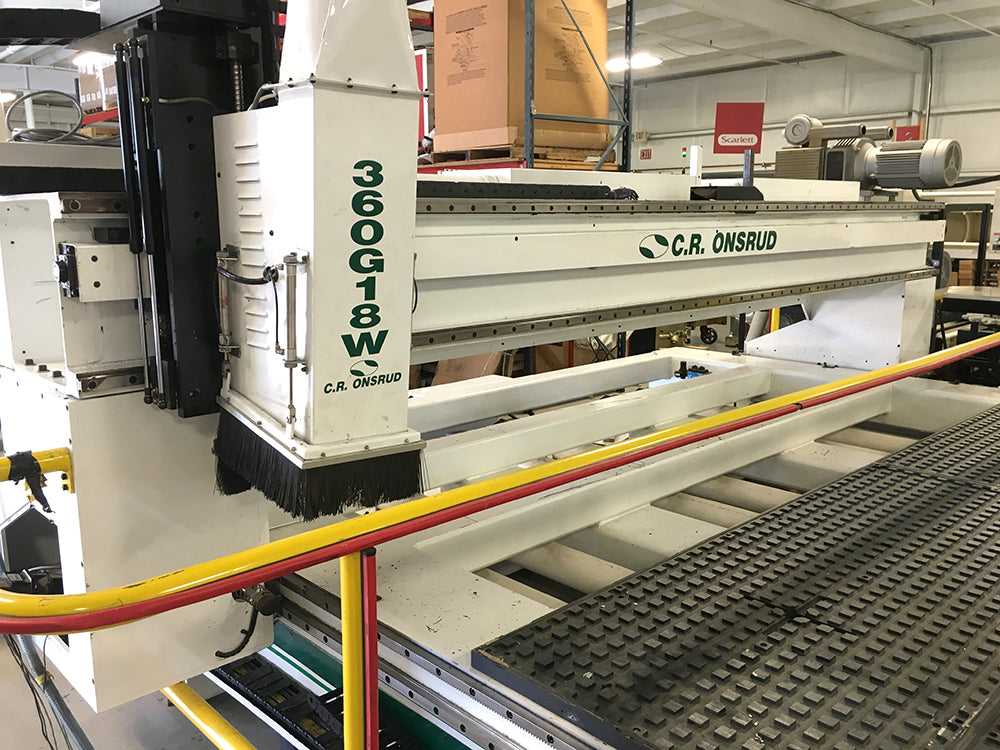

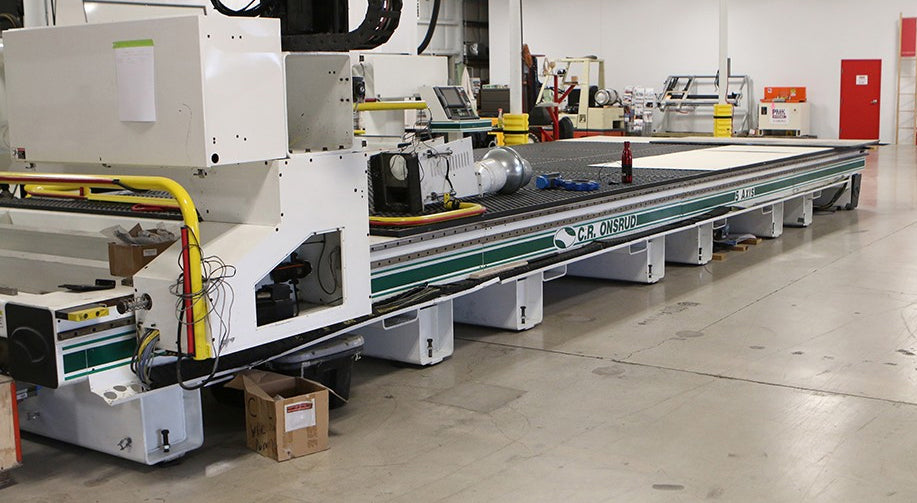

SOLD Used CNC Router - C.R. Onsrud Panel Pro Series - Model 360G18W



SOLD Used C.R. Onsrud CNC Router - Panel Pro Series - Model 360G18W

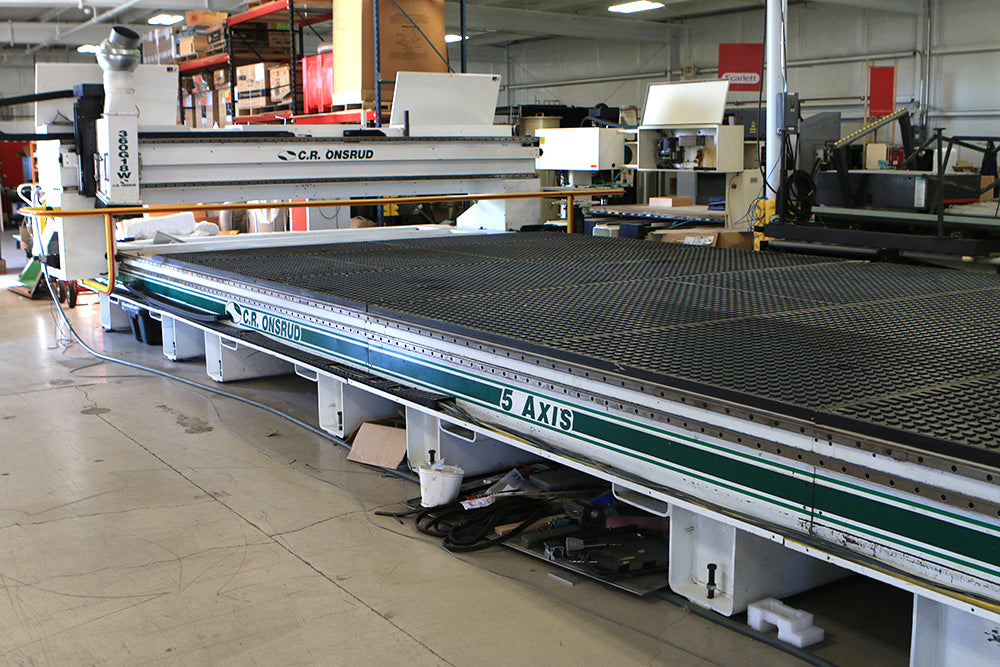

This used CNC Router manufactured by C.R ONSRUD is a “Panel Pro Series” CNC ROUTER (360” X 145” axis travel) equiped with...

  • Thermal Heat Treated
  • Stress Relieved & Normalized 4-Piece Steel Frame Base
  • Thermal Heat Treated Stress Relieved & Normalized Steel Bridge
  • Dual Support
  • Dual Drive
  • Moving Gantry
  • Fixed Table Design with standard 2 500” per minute machining speed
  • full 3-D capability
  • 14” under bridge clearance & 11” Z axis stroke
  • oversized precision ball screw drives for Z & Y axis
  • case-hardened oversized
  • precision ground helical rack & pinion drives for X axis
  • precision linear profile guide ways
  • centralized lubrication system 4-Pole
  • 13.5Kw 18HP – 24 000 RPM fully programmable & reversible
  • variable speed quick-change spindle with air blast
  • capable of routing & drilling programmable feed rates w/override capability.

  • Each Vac zone has low vacuum sensing safety shut-off with override capability. Includes all switches valves gauges safety interlocks & Vacuum Plumbing necessary for either suck through or dedicated spoil boards. Moving gantry is surrounded by a pressure sensitive safety-stop / emergency-stop bar.

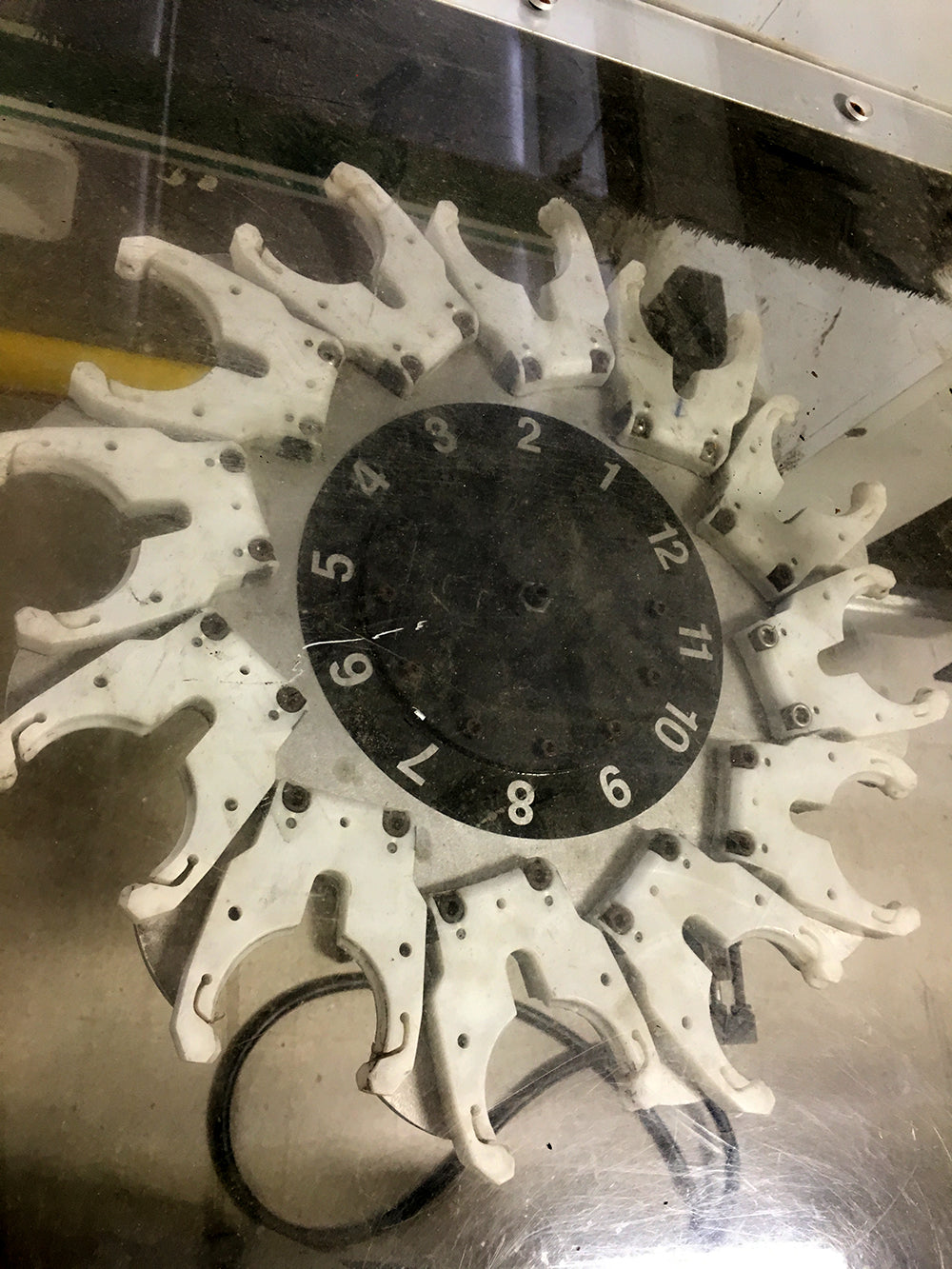

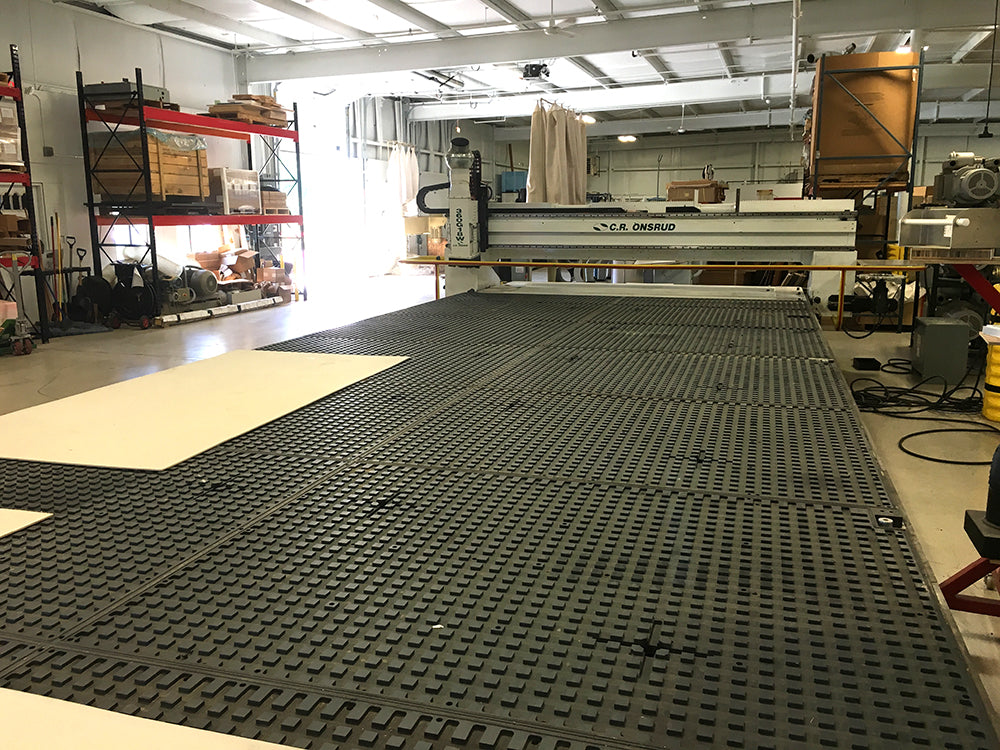

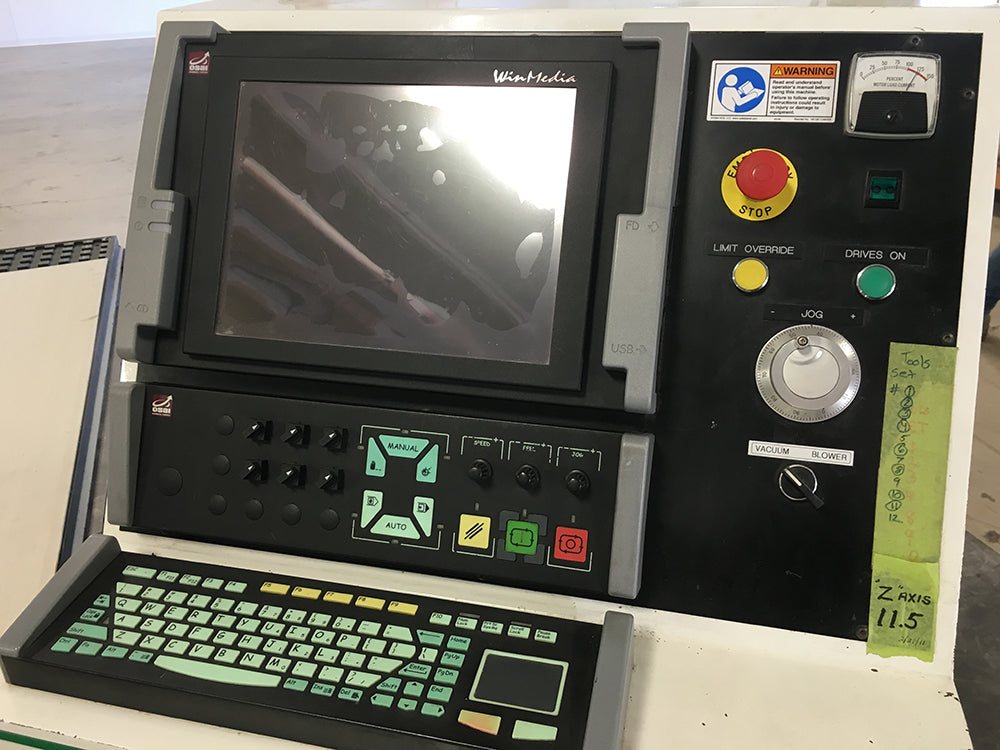

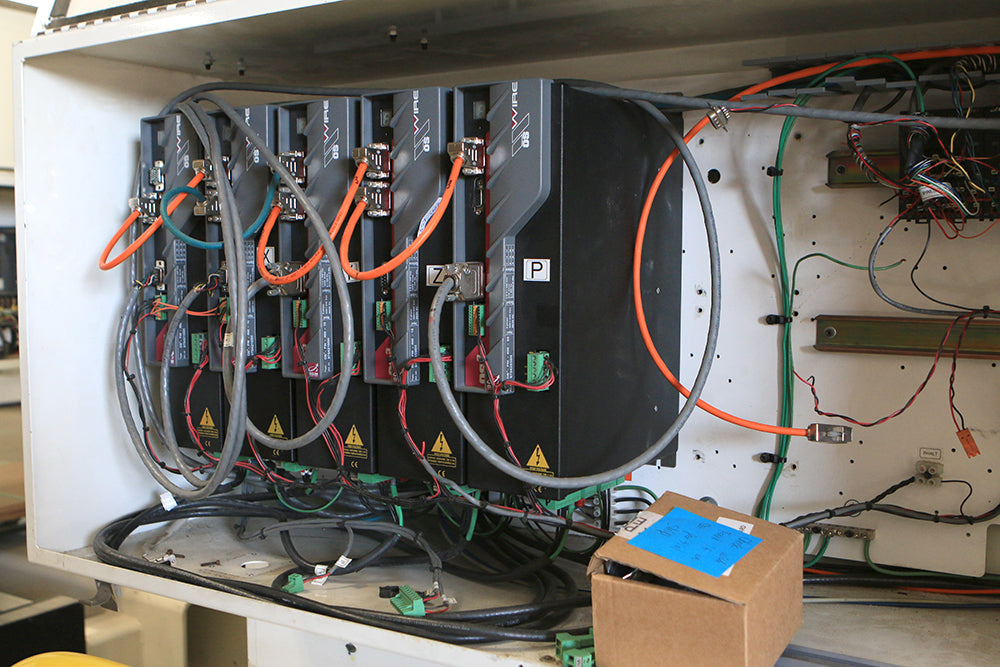

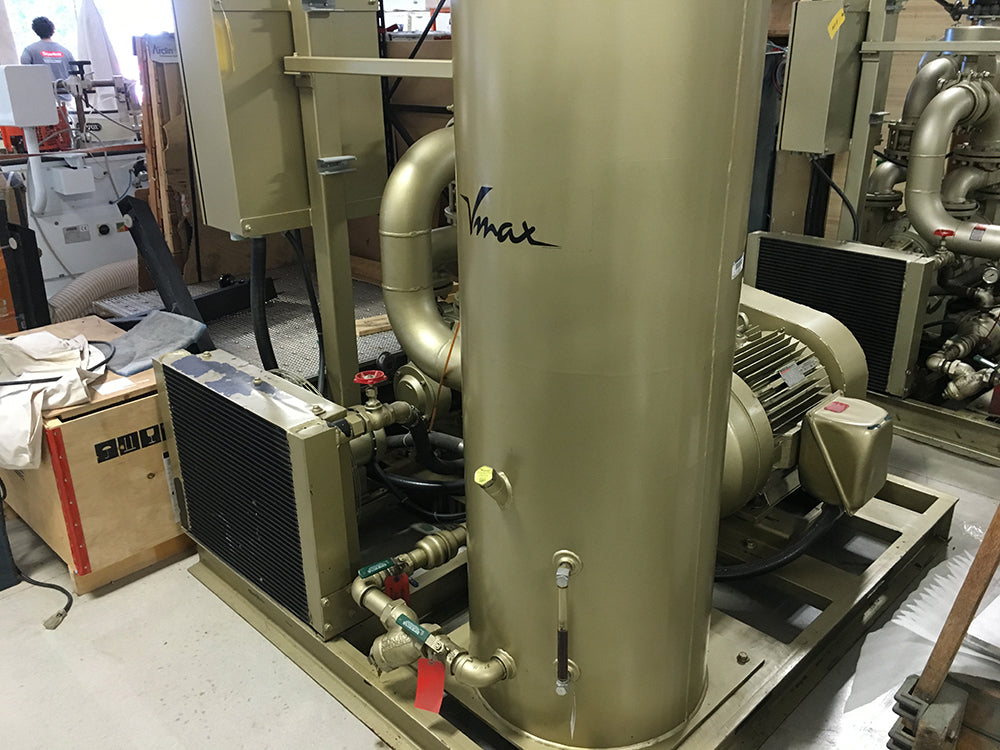

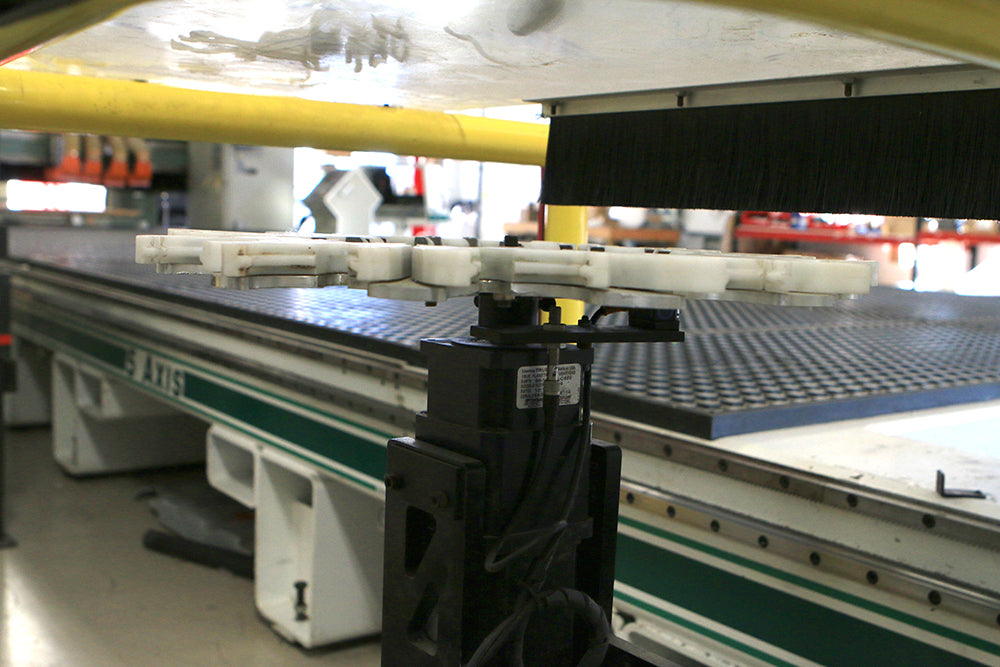

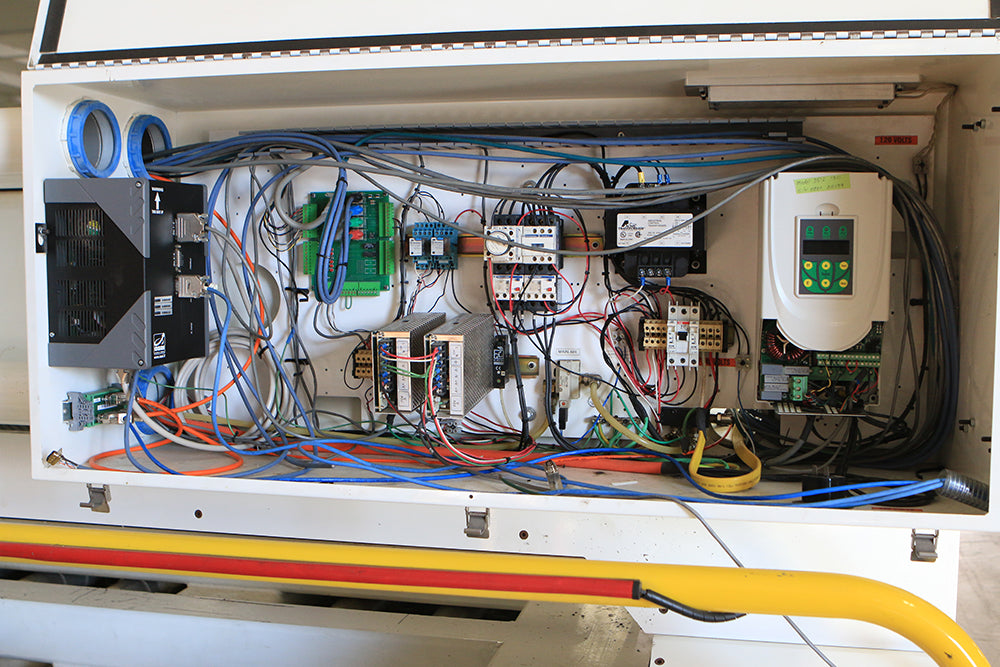

  • This CNC Router package included the following items: - 12’ wide x 30’ long work envelope - OSAI PC Front Series 10/510i System – OSAI PC Front w/High Res touch screen network capability PLC Machine Controller plus adds OSAI Digital Drives Amps and Servos - 18 HP Spindle w/HSK-63 Spindle Taper - 24 000 RPM - HSD ES988 Spindle - 12 Tool – Dynamic Automatic Rotary Tool Changer – Fully Servo controlled - Dekker 60 HP Vac Pump.

For more information...

Phone 678.642.9722
