Used Brandt Edgebander - Model Optimat KD-97C with Doucet Return Conveyor



Used Brandt Model KD-97C Optimat Automatic Edge Bander w/Doucet Return Conveyor
Package Price: $ 19 500.00

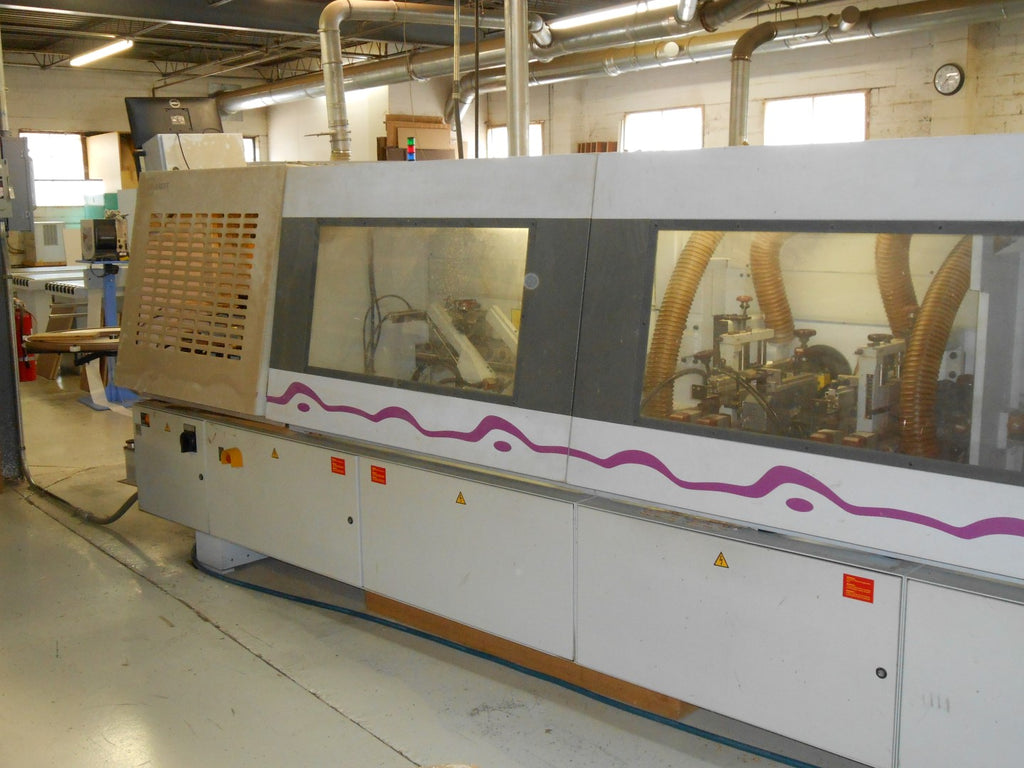

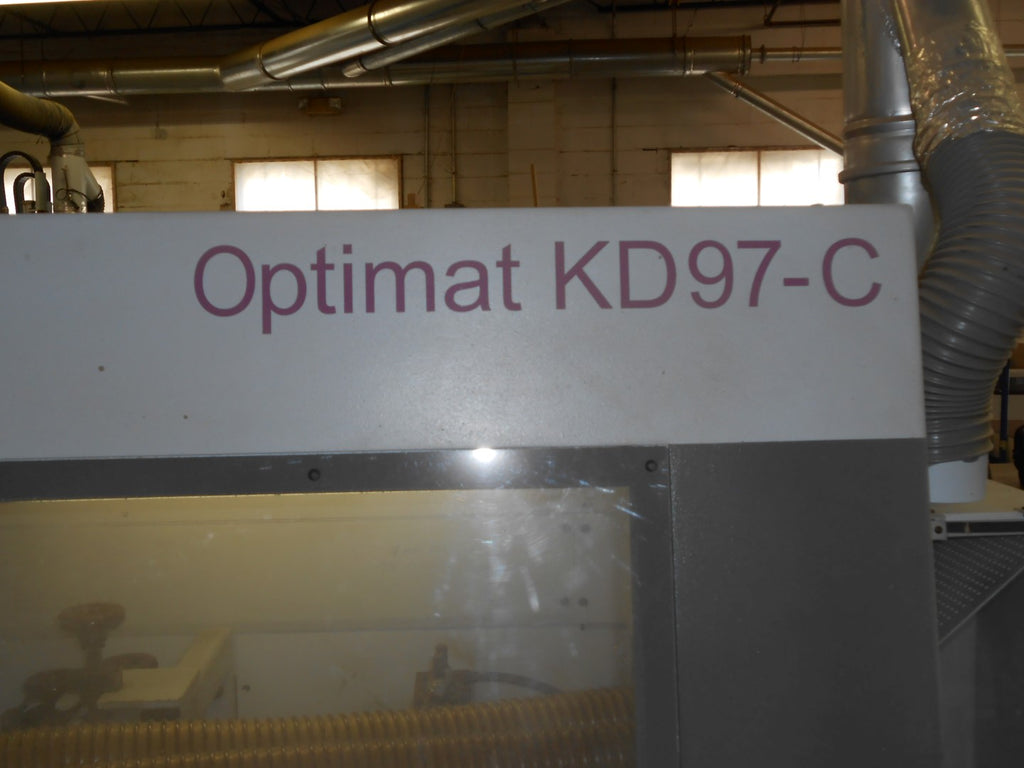

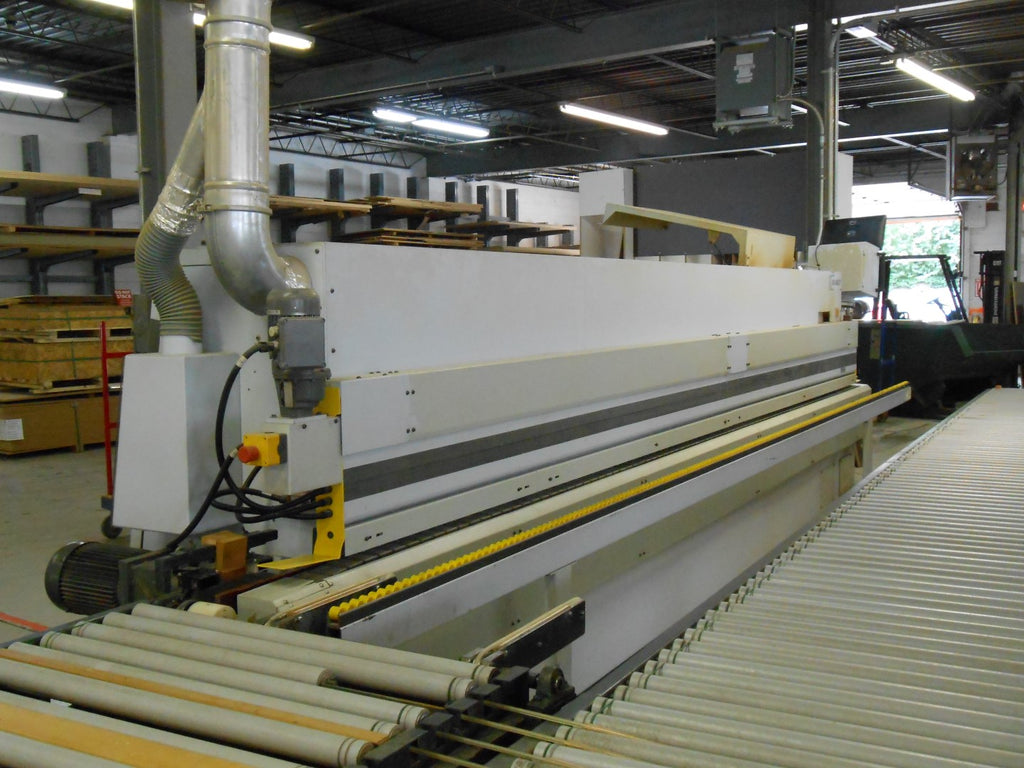

Used Brandt Automatic Edgebander - Model KD-97C

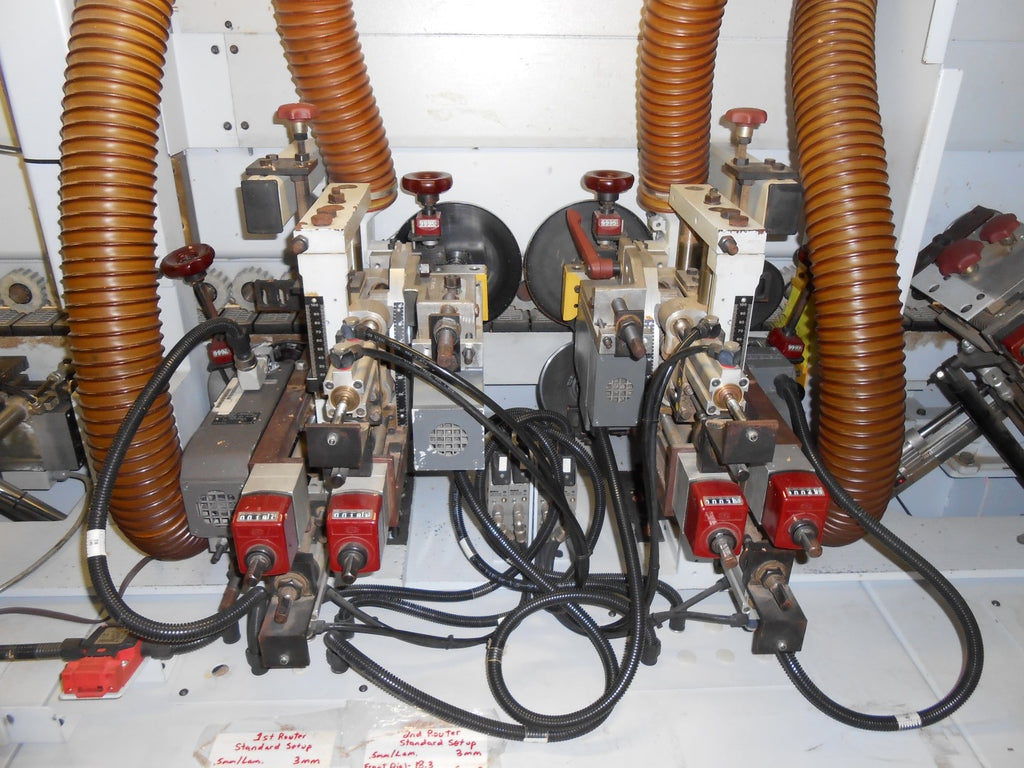

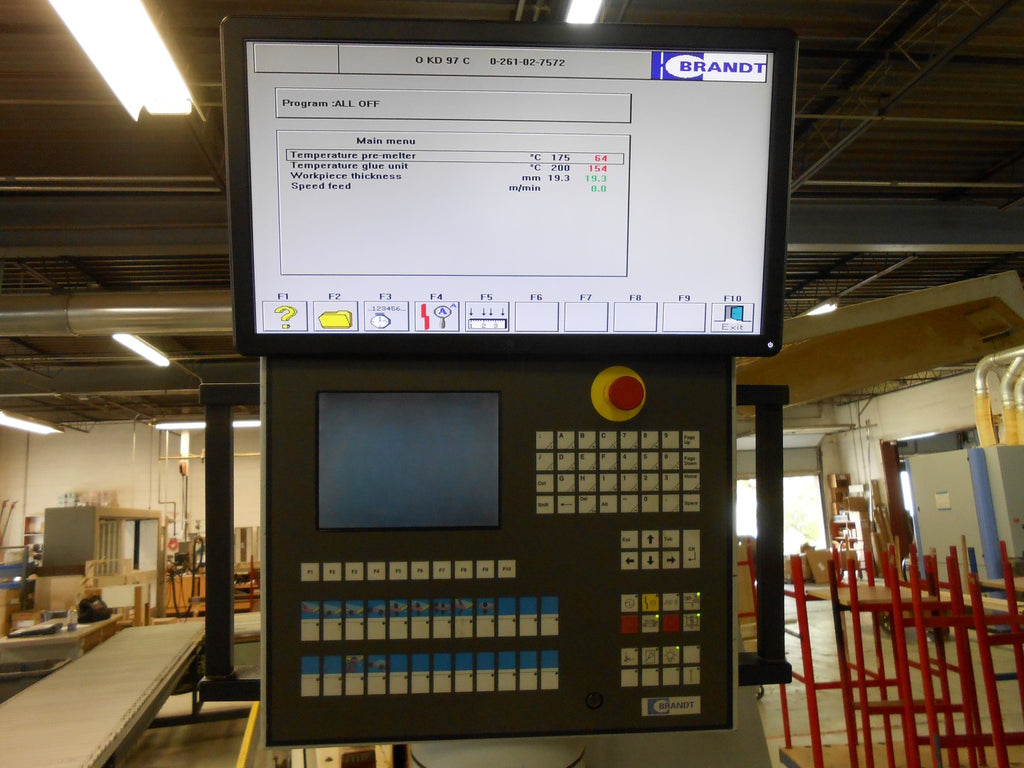

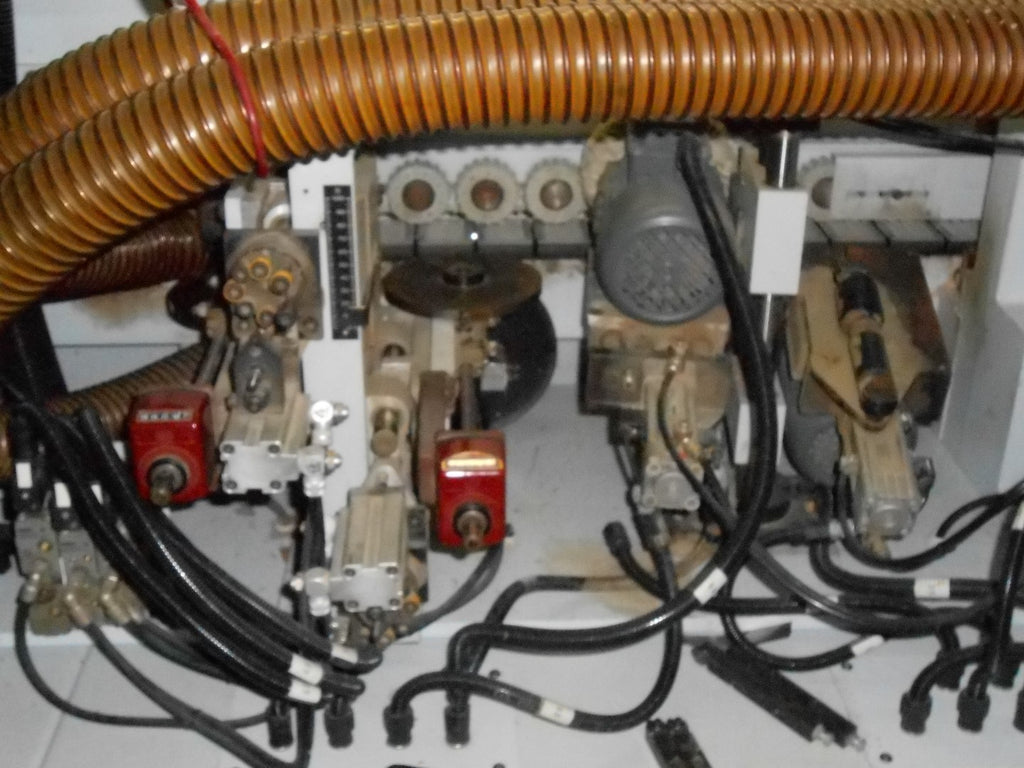

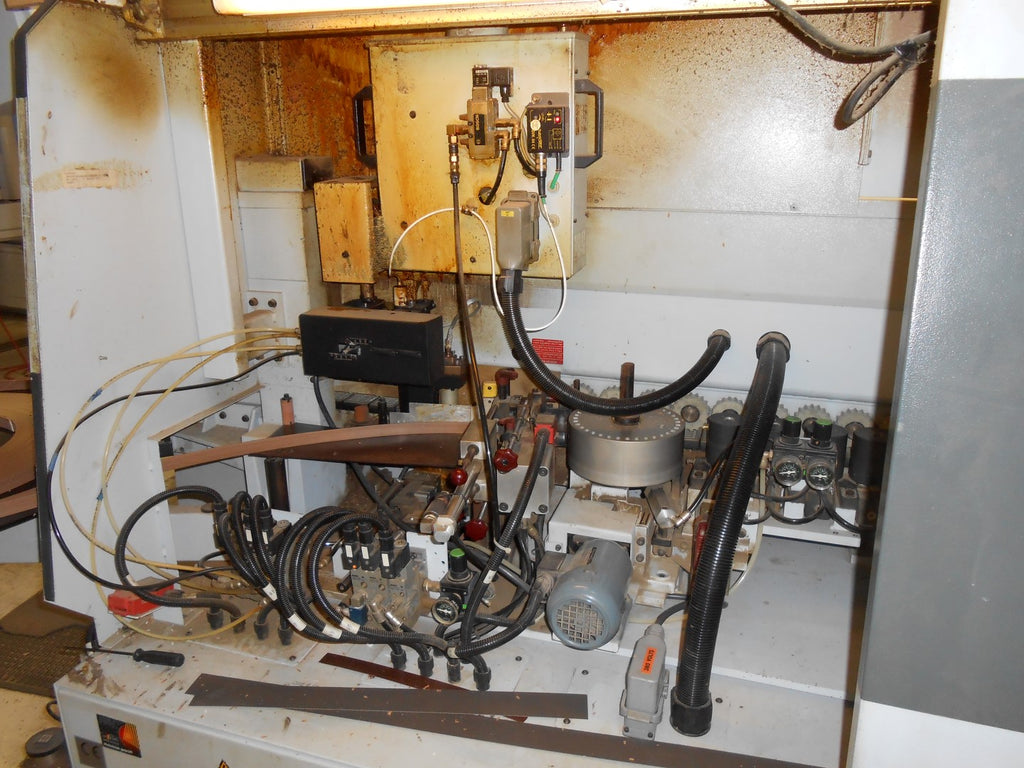

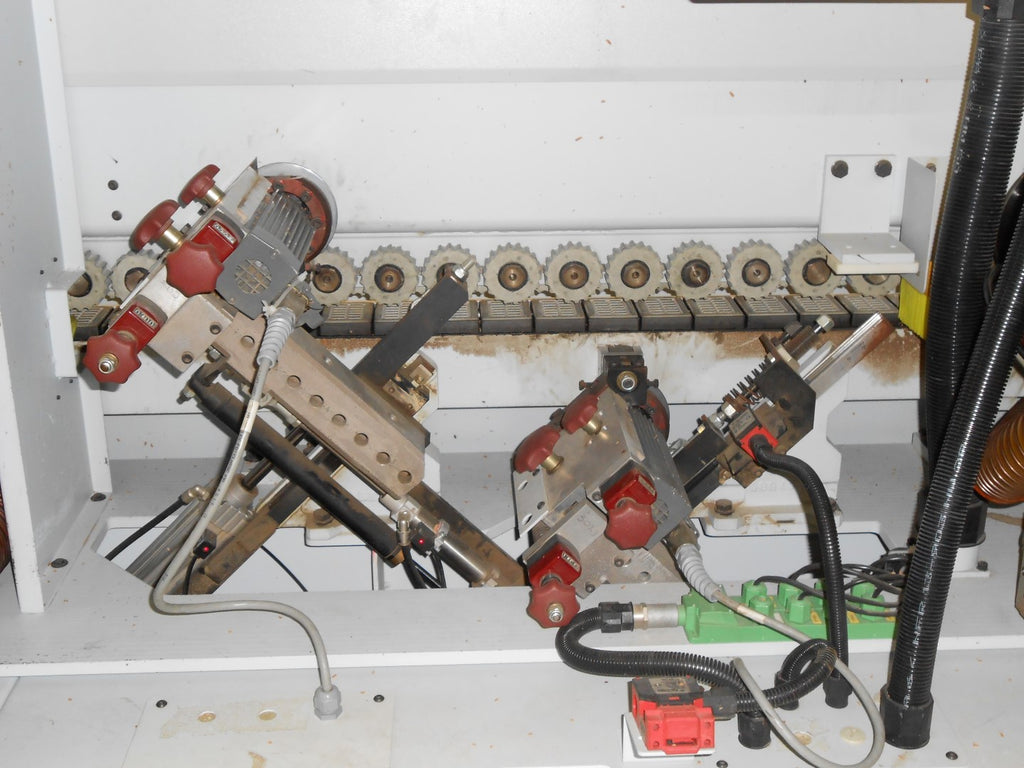

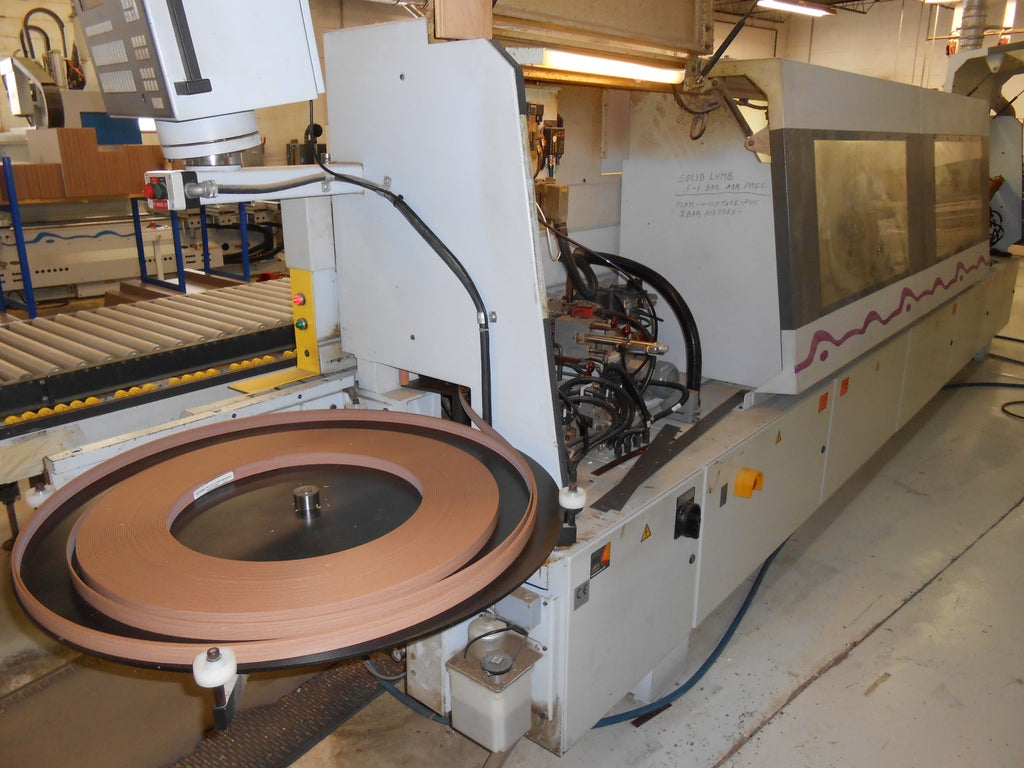

This used automatic edgebander manufactured by Brandt is equipped with an automatic height adjustment of all work stations when motorized pressure beam is adjusted; with a PC-16 program control with passive matrix color LCD screen 7.4 inches; control panel located at machine infeed; automatic magazine for strip and coil feeding; QA-34 quickmelt granulate glue application/n system; reversible rotation of glue application roller; 3mm PVC capacity guillotine; infrared heating unit between glue roller and pressure zone; program controlled motorized pressure zone first pressure roller driven and four idle pressure rollers all with pneumatically controlled pressure; double motor end trimming unit with straight and chamfer capability chamfer up to 15 degrees (program controlled pneumatic indexing straight to bevel); top and bottom fine trimming unit with digital "Quickset" system with a tilt range of 0 to 25 degrees with program indexing; top and bottom fine trimming unit with digital "Quickset" system tilt range of 0 to 25 degrees with pneumatic indexing; top and bottom contour trimming units; scraping unit for rigid PVC edges with digital "Quickset" system with pneumatic indexing; oscillating jump buffing unit; PVC post heating system for dark PVC edge materials; with a sound and safety enclosure and with electrics wired for AC 3/60/230 volt operation; having a capacity of 0.4 to 20mm edgeband thickness 12 to 60mm edgeband height 8mm minimum panel thickness and 55mm maximum panel thickness and with all related equipment. Serial Number: 0-261-02-7572.

Used Doucet Model BT30-60-TS-30-264-G Return Conveyor

This used return conveyor manufactured by Doucet features a receiving conveyor of 30" wide x 5 foot long with a transfer section with two motorized arms and with a return section conveyor of 30" wide x 28 foot long with a panel deviator and with electrical controls wired for AC 3/60/230 volt operation. Serial Number: 98-07-013.

For more information...

Phone 678.642.9722
