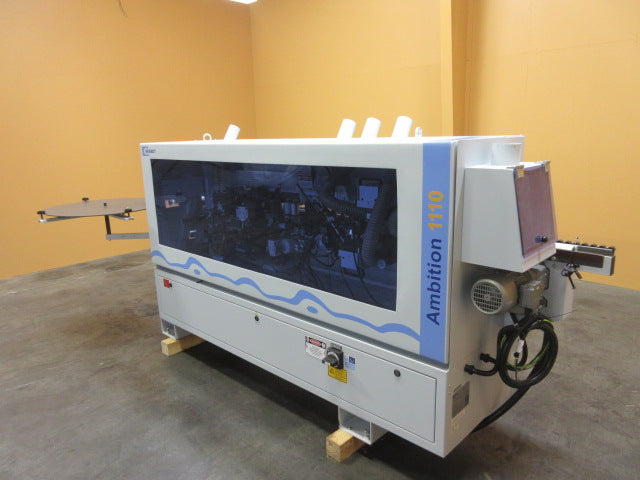

SOLD Used Brandt Edgebander - Model: Ambition 1110
This 2014 used edgebander manufactured by Brandt features a top and bottom profile quick change scraping unit
- 016″ to 1/8″ maximum edgebanding thickness capacity (coil or strip)
- Edgeband length: strips 9" minimum 5/16" min. to 2" max. panel thickness
- Minimum panel length: 5-1/2"
- Minimum panel width: 2-3/4"
- Edgeband height: 5/16 to 1-5/8"
- Electronic Easy Control with backlit LCD display
- (2) 1 HP 12 000 RPM pre-milling units with diamond cutterheads
- Automatic magazine for strip and coil feeding
- Hot melt glue pot with 12 minute heat up time
- Automatic temperature reduction feature (lowers the glue temperature if no panel is run over a 15 minute span)
- Guillotine for cutting up to 3 mm PVC from the coil
- Pressure station with (1) motorized pressure roller plus (2) additional idle pressure roller with digital setting system
- 1/4 HP 12 000 RPM double motor end trim .33 HP
- 12 000 RPM top and bottom trim station equipped with two DFC combination straight/radius cutter heads and digital readouts (three different working positions: flush trim trimming with overhang and radius/bevel trimming)
- Top and bottom profile quick change scraping unit
- Finish scraping unit 3/4 HP 1-speed feed with speed of 26 FPM
- Digital on top pressure beam for height indication
- Adjustable infeed fence with digital readout Automatic height adjustment with top pressure beam for all work stations
- Digitals on top and bottom trim station
- Dust extraction: (4) 80 mm outlets and (1) 100 mm outlet 1600 CFM required
- Compressed air connection: 6 bar (85 psi) Isolation transformer with variable infeed voltage for balancing all 3 phases of incoming power
- Machine Weight: 1 650 lbs.
- Machine dimensions: 12'1" long x 4' wide
- Amperage required @ 230 volt: 30 amps
