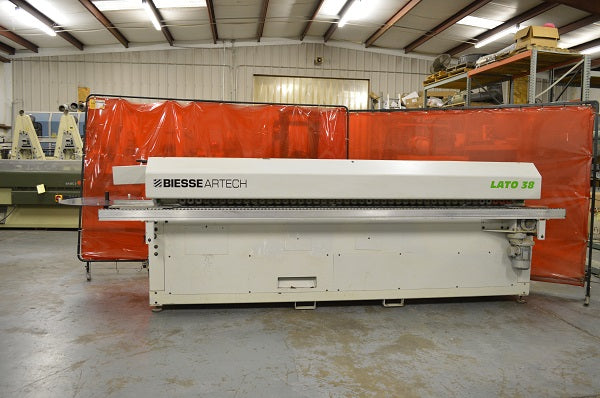

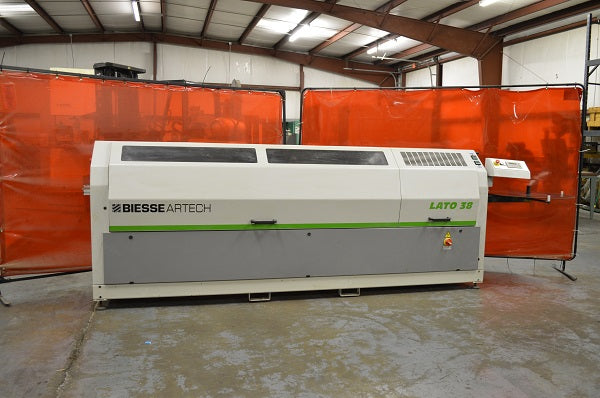

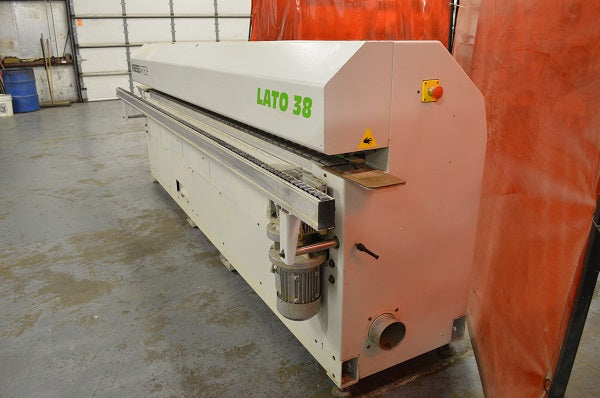

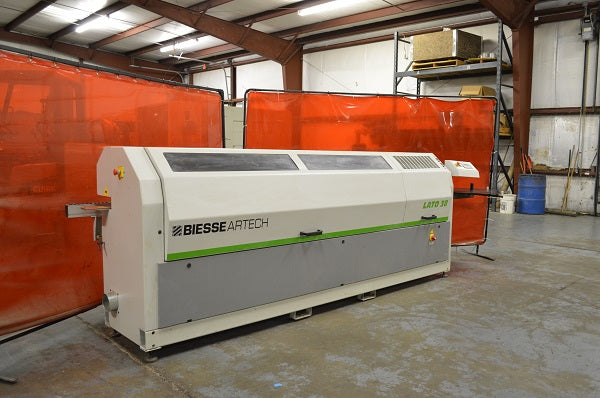

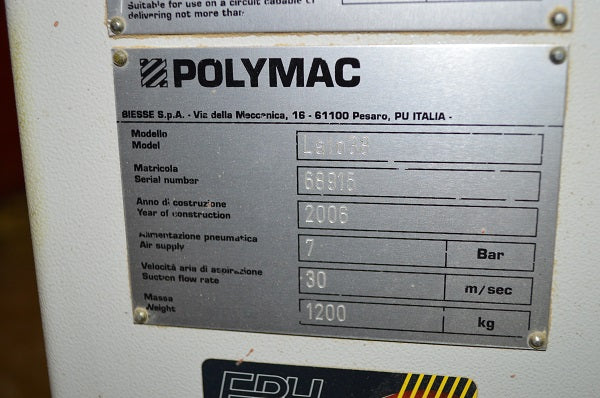

SOLD Used Bieese Edgebander - Model: Lato
This used edgebander manufactured by Biesse features
Technical Specifications:
- 38 8 mm capacity edgebanding thickness
- min. panel width: 85 mm or 50 mm w/250 mm panel length
- min. panel length: 140 mm
- max. panel thickness: 45 mm

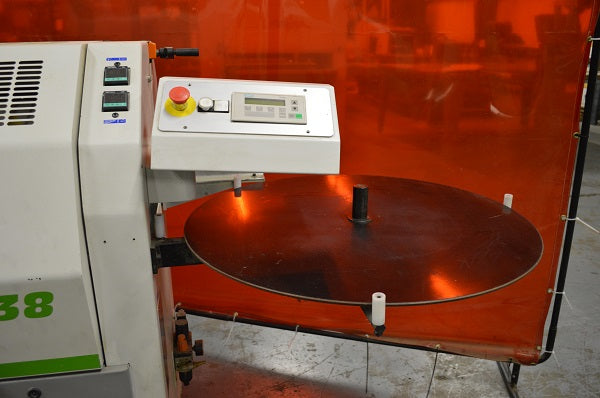

- auto strip and coil feed magazine with 3 mm PVC guillotine

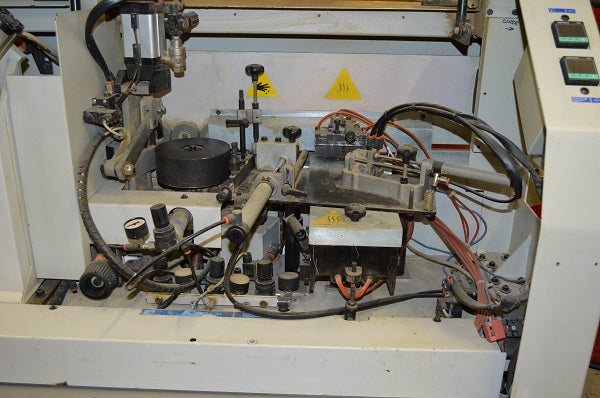

- Teflon coated hot melt glue pot
- dual digital thermostats
- 1 in. diameter glue applicator roller
- pressure section w/ (1) large diameter non-stick coated drive roller
- (2) pneumatic pressure controlled idle rollers
- horizontal adjustment w/ digital indicator

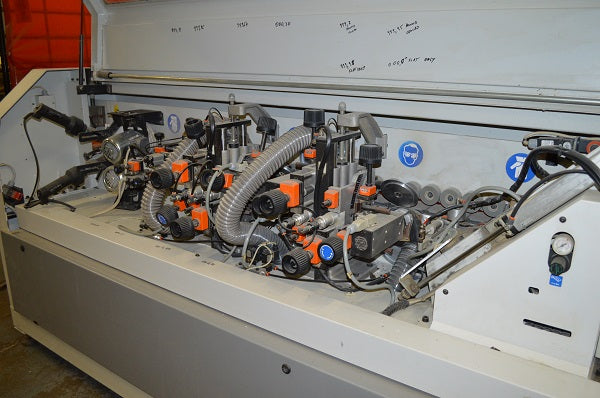

- Workstations: front and rear end trims (.5 HP motors)
- motors travel on 45 degree slides and tilt 0-12 on a horizontal plane
- Top and bottom rough trim (.73 HP motors)
- motors tilt 0 -30 degrees
- Top and bottom fine/bevel/profile trims (.73 HP motors)
- motors tilt 0-30 degrees
- cutters for 10 degree bevel and 3 mm PVC radius round
- digital readouts for setup (t and b w/ quick change motors for tool change)
- Top and bottom scrapers for 3 mm thick PVC banding
- pneumatic pressure control for scraping knives
- digital readout for horizontal adjustments
- top and bottom hot air blowers
- top and bottom buffing (.5 HP motors) units tilt 0-30 degrees

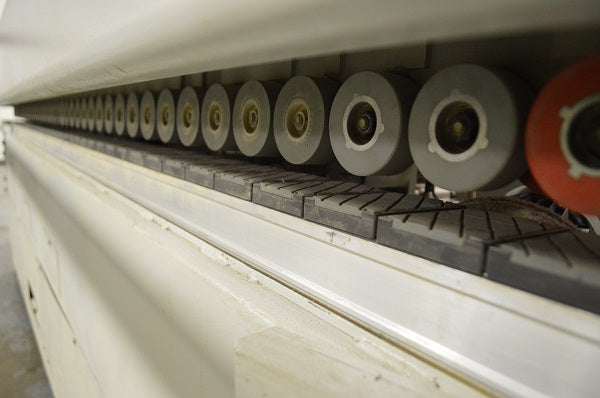

- Feed chain "anti-slip" 80 mm wide rubber pads
- Feed Speed: 33 FPM w/ 2 HP drive
