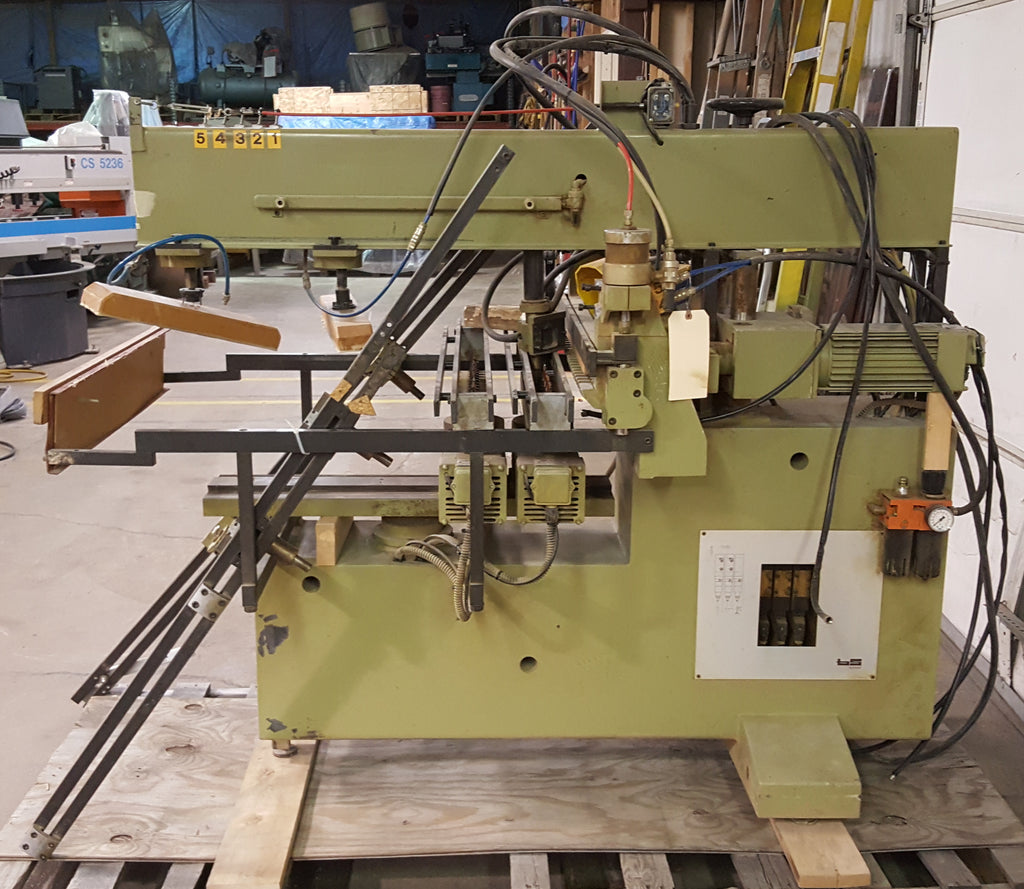

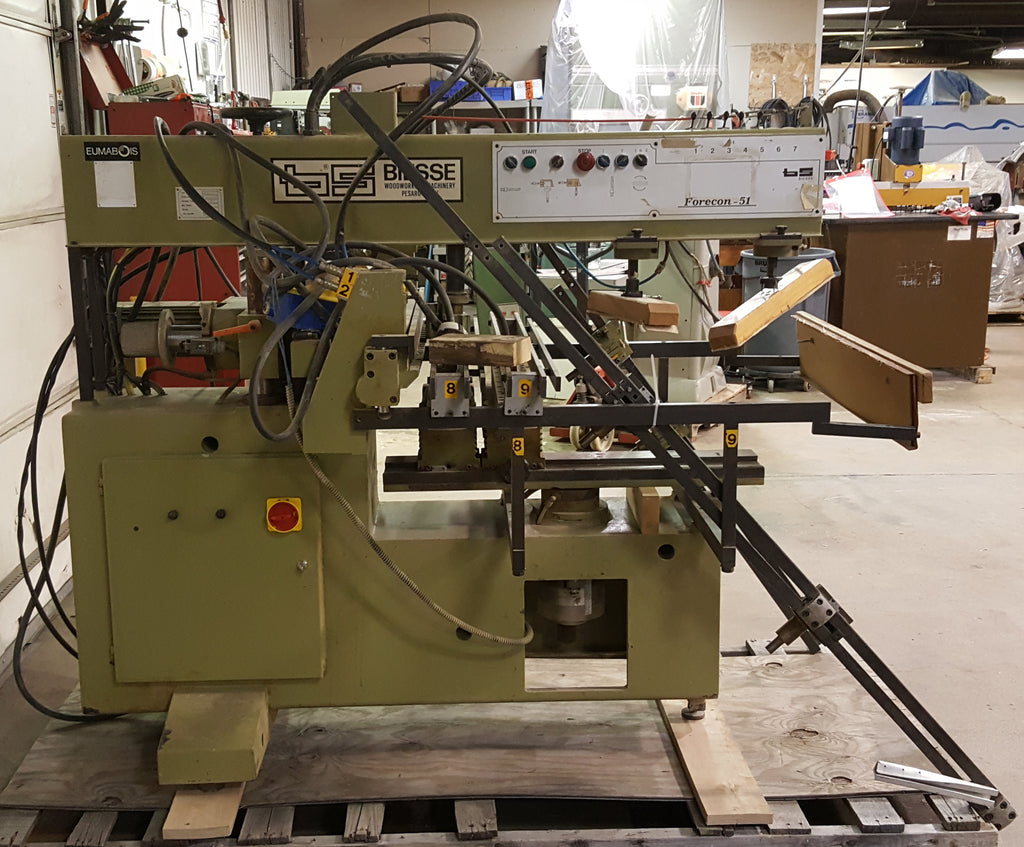

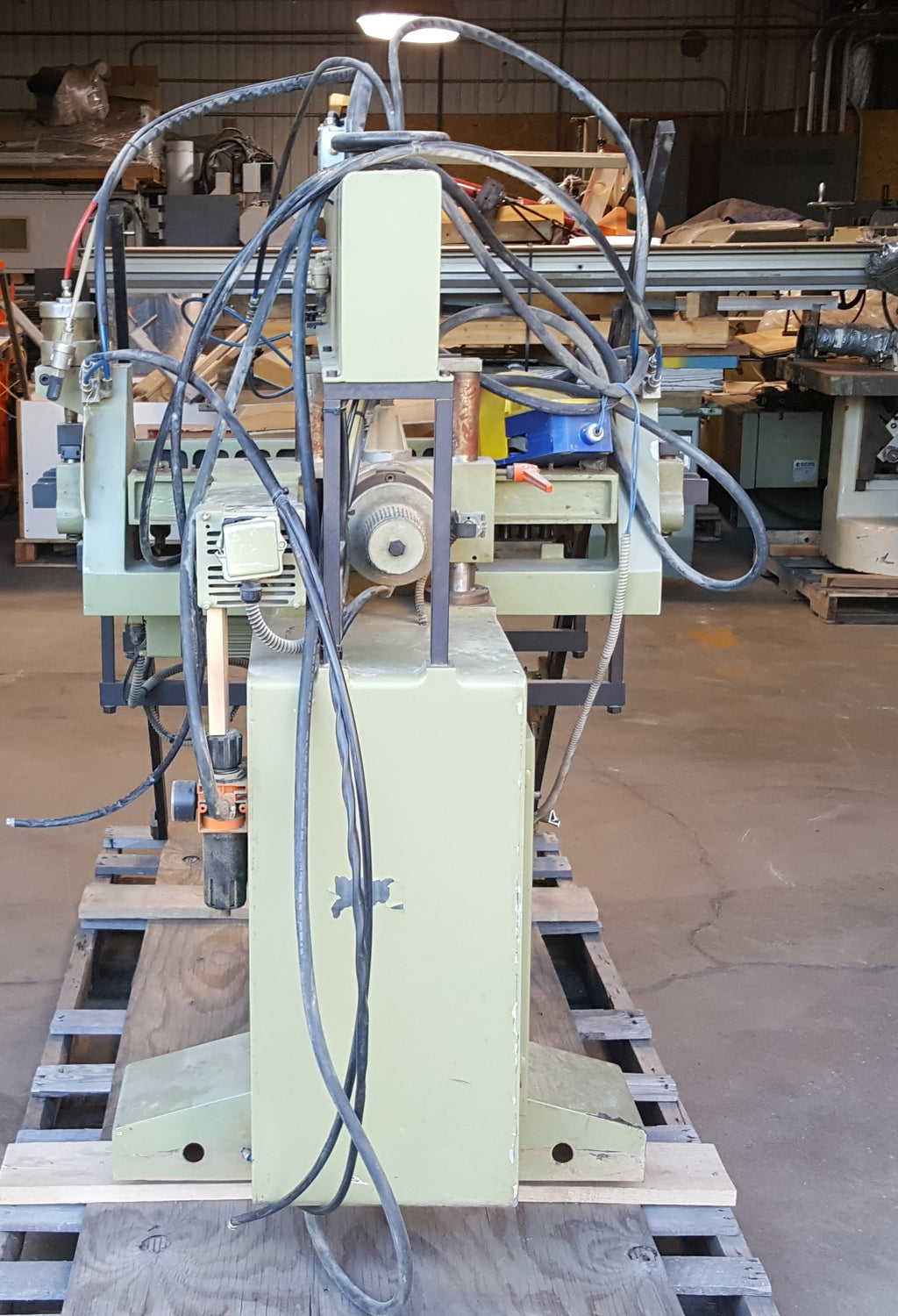

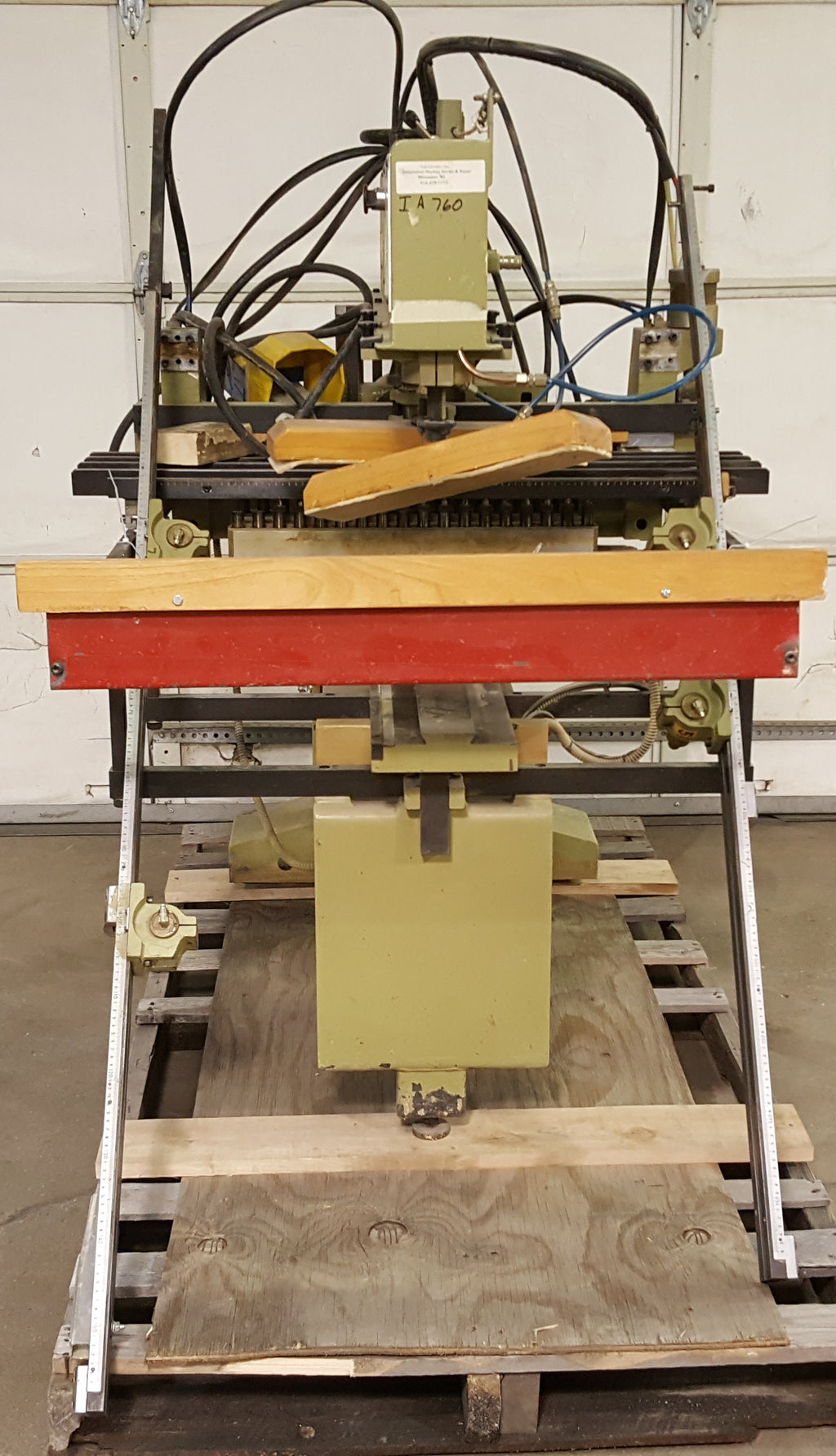

Used Biesse Horizontal Boring Machine - Madel Forecon 51
Year: 1985
This used horizontal boring machine manufactured by Biesse features 5 adjustable backstops.
Technical Specifications:
- 2HP
- 220V
- 1 horizontal 21 spindles unit
- 1 vertical unit with 2 swivelling 15 spindles boring chucks
- center distance between the spindles 32mm
- Horizontal unit motor : 3Hp
- 2 vertical units motors : each 2Hp
- Spindles : 2800rpm
- Air pressure : 6-7 atm
- Air consumption per cycle : 17 l
- Allover dimensions : 1500 x 3140 x 1500mm
- 5 adjustable backstops
- Weight : approx. 590 kgs
