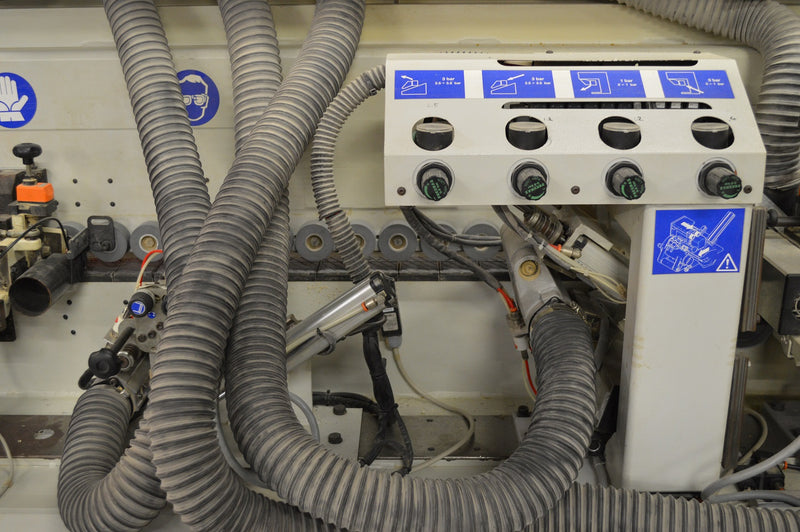

SOLD Used Biesse Edgebander - Model AKRON 245
Cleaned and Checked
This used edgebander manufactured by Biesse with a.4-8mm capacity edgebanding thickness.
- Min. Panel Width: 85 mm
- Min. Panel Length: 140 mm
- Panel Thickness: 10-50 mm
- adjustable top pressure beam positioning
- automatic strip and coil feed magazine with 3 mm PVC guillotine
- Teflon coated hot-melt glue system
- pressure section with (1) large "non-stick" coated drive roller and (2) chrome plated idle rollers w/ pneumatic positioning
- front and rear end trims (.33 HP- 12 000 RPM motors)
- motors travel on (2) straight slides and pneumatic tilt 0-25 degrees on a horizontal plane
- top and bottom flush trims w/ "Quick Change" motors (1 HP - 12 000 RPM)
- 2-motor (.3 HP-12 000 RPM motors) corner rounding unit for trimming leading and trailing upper and lower edge/corners
- top and bottom scrappers for 3 mm thick PVC banding
- top and bottom hot air blowers with temperature adjustment
- top and bottom buffing (.5 HP-2 800 RPM motors) unit tilts 0-30 degrees
- Feed Speed: 39 FPM
- 3 HP Feed Drive
- For operation on 220V 3PH.
