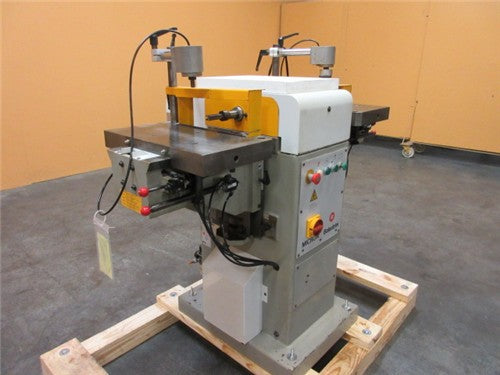

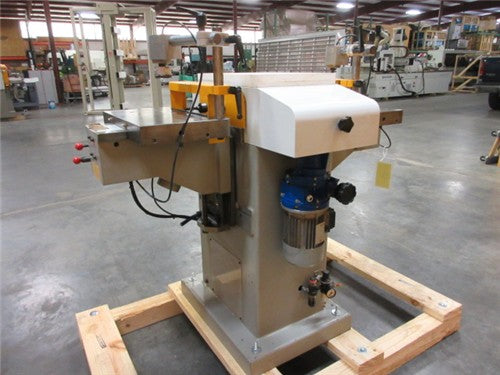

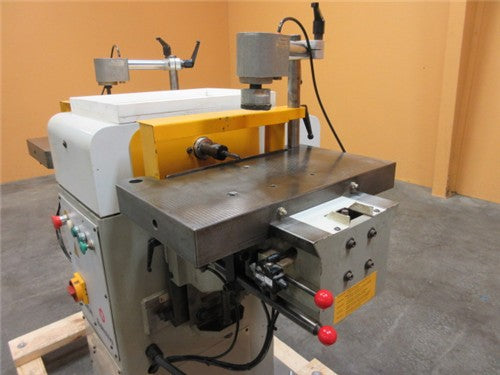

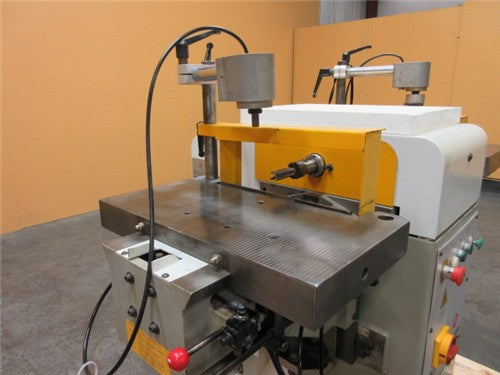

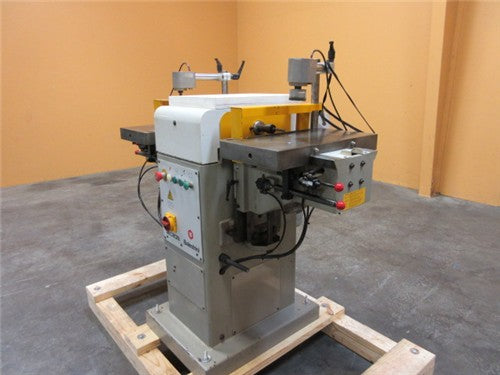

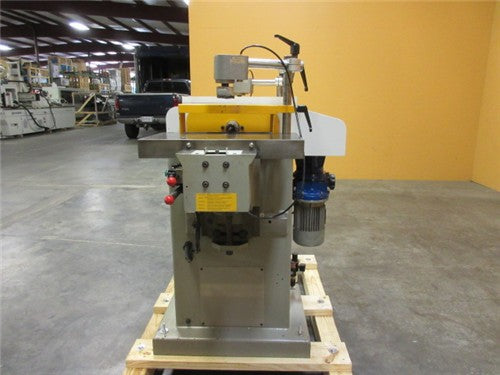

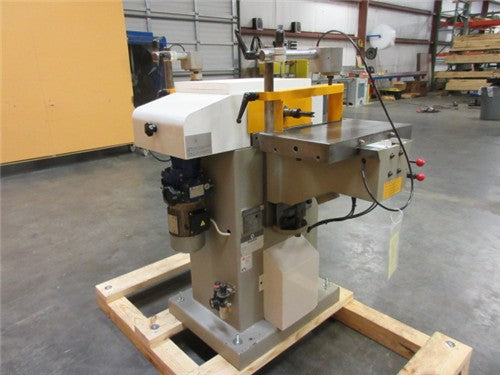

SOLD - Used Balestrinin Micron Mortiser




Twin table design with (1) spindle per side
Spindle has variable speed on oscillation stroke
Tables have air over oil variable speed feed rate
(1) pneumatic hold down clamp per table
3 HP spindle motor producing a spindle speed of 9 000 RPM
1 HP oscillation motor
Oscillating speeds of 120 to 240 strokes per minute
Max. length of stroke - 120 mm
Max. depth of mortise - 80 mm
Max. bit diameter - 30 mm
Tables tilt left or right 20°
Hourly production is 500 to 800 slots
