SOLD Used CNC Router - AXYZ Model 4008



SOLD Used AXYZ Model 4008 CNC Router
Year: 2005

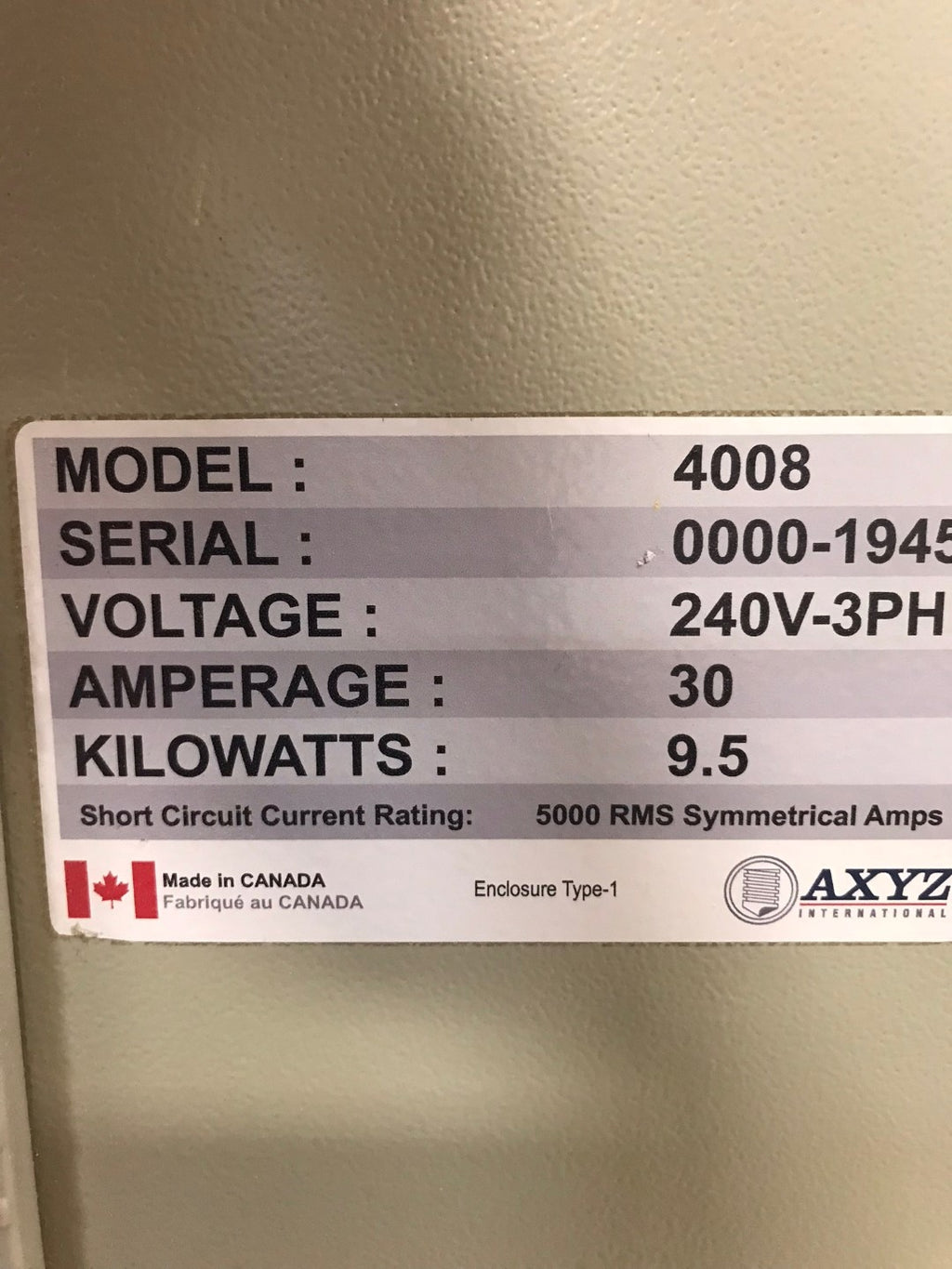

Serial Number: 0000-1945

This used cnc router manufactured by AXYZ includes tool holders collets and all related equipment.

Note: This unit is currently in service and will available for sale in late November 2018

Technical Specifications:

  • processing capacities of 100" in length x 58.5" in width x 7.5" "Z" axis stroke
  • equipped with an automatic tool changer (ATC) system

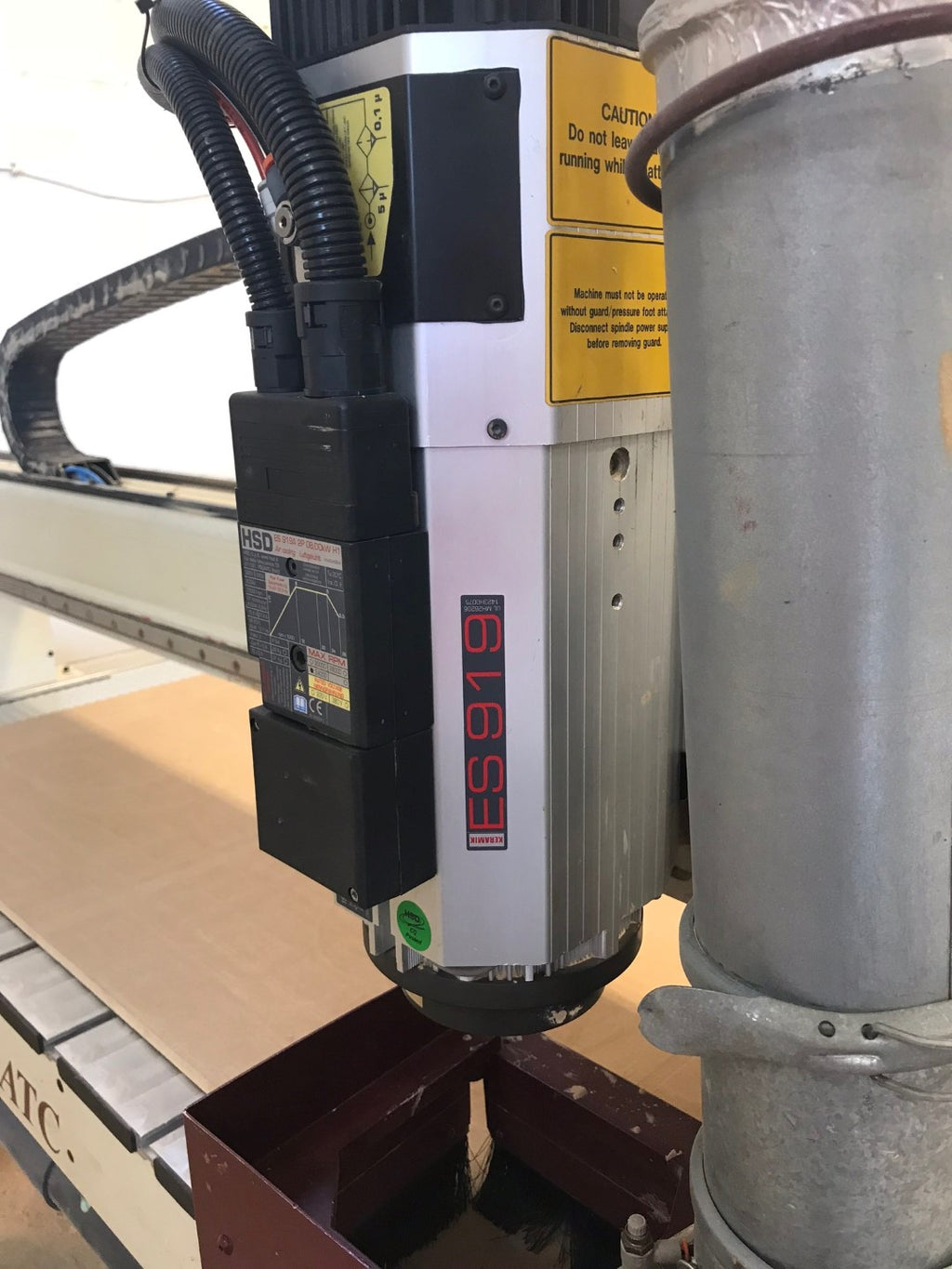

  • HSD 10.8 H.P. 6 000 to 24 000 R.P.M
  • variable speed quick-release spindle with digital AC inverter
  • 88.5" left cantilevered gantry
  • eight (8) position gantry-mounted enclosed tool carrousel
  • eight (8) ISO 30 toolholders and collets
  • 8" gantry clearance/Z-axis stroke
  • a F-25 automatic Tool-tip sensor
  • adjustable brush foot for chip containment and extraction
  • S-mouse rapid material surface/tool-tip sensor
  • zoned vacuum hold-down system including 57.75" x 96" vacuum grid manifold
  • valves and piping for a Becker 10 H.P. dry vane vacuum pump
  • vacuum pressures to 25 in Hg
  • tool path for Windows interface software
  • c/w 2D and 3D engraving module and with electrics wired for AC 3/60/240 volt operation
  • tool holders collets and all related equipment

    For additional information and shipping quotes...

    Contact Stan at First Choice Industrial
    Phone 678.642.9722
