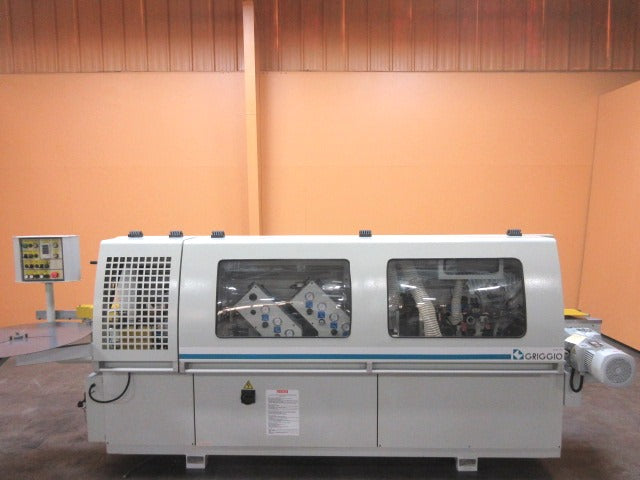

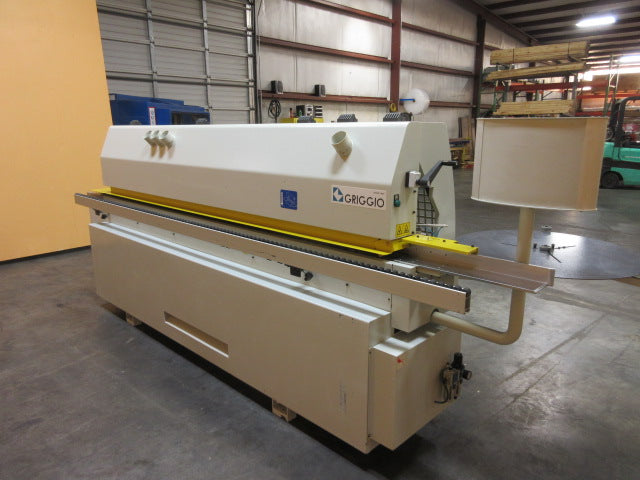

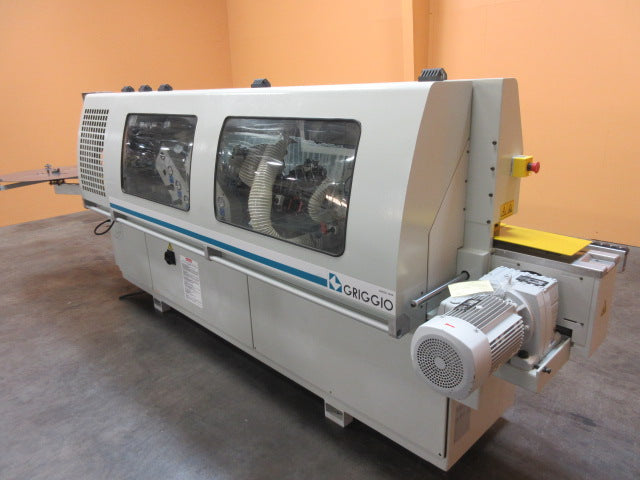

SSOLD Used Griggio Edgebander - Model:GB 4/8
Year: 2012

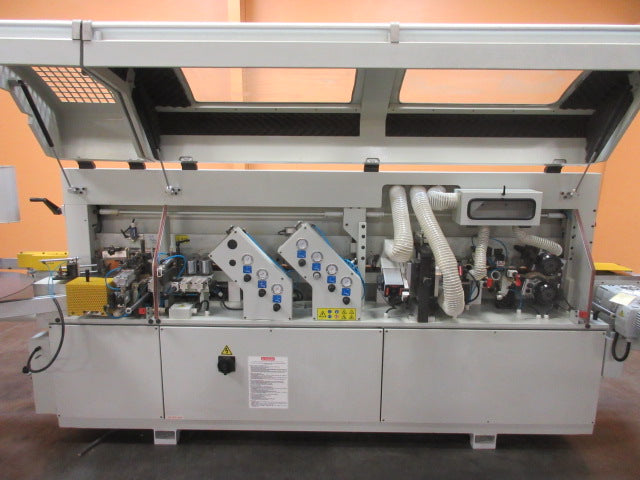

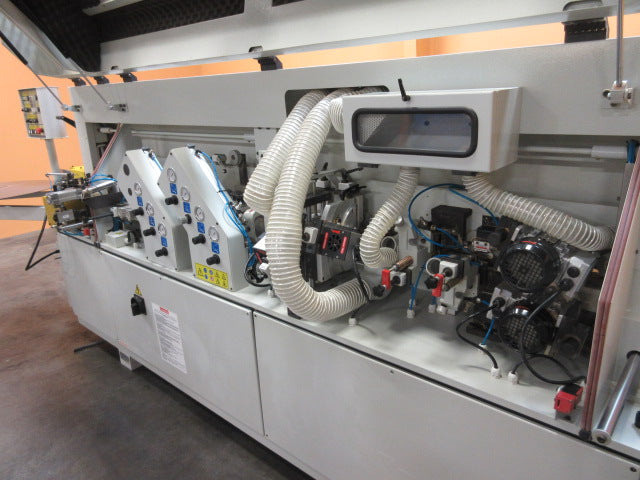

This used edgebander manufactured by Griggio features (4) heavy duty working stations.
Technical Specifications:

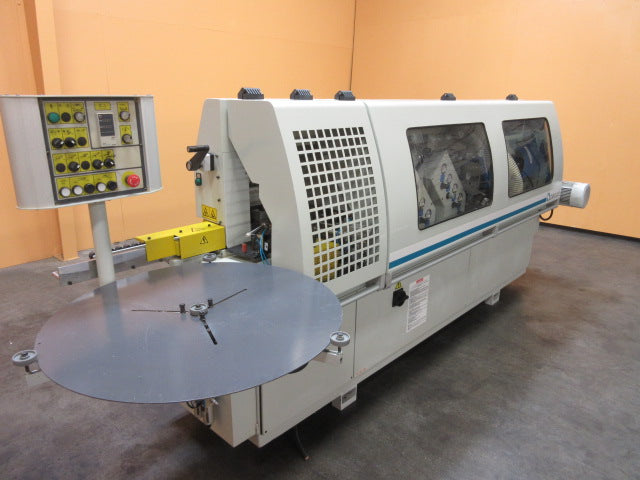

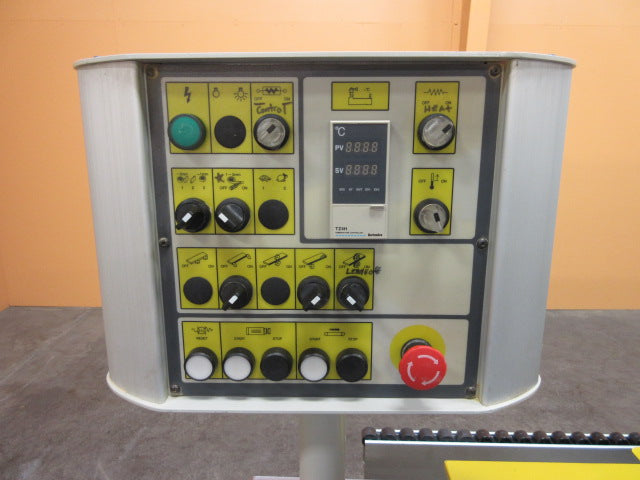

- Standard Equipment: Control panel is straightforward and easy to use
- Manual adjustment of the upper pressure beam with digital readout
- Heated infeed fence
- Left Hand feed machine
- Manual height adjustment of working units with digital readout

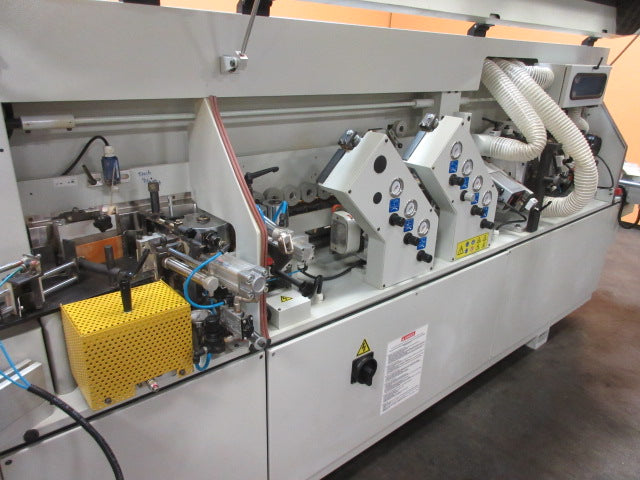

- (4) Heavy duty working stations
- Non-stick glue tank with quick heating
- Auto-Temp control of temperature from 200 to 130 degrees Celsius
- Quick Heat up
- System and Auto Temp drop if machine not in use for certain amount of time

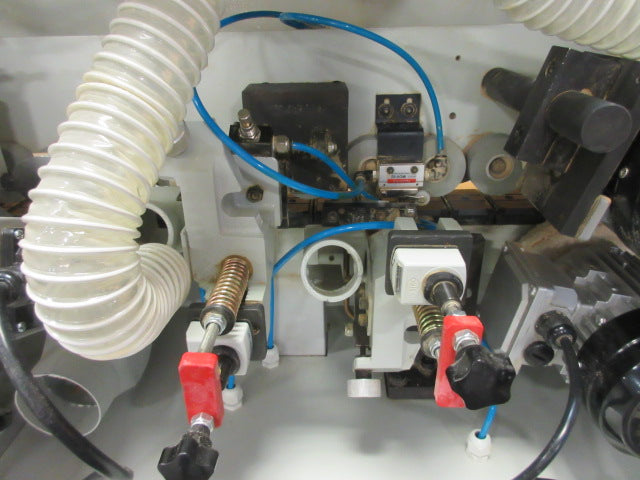

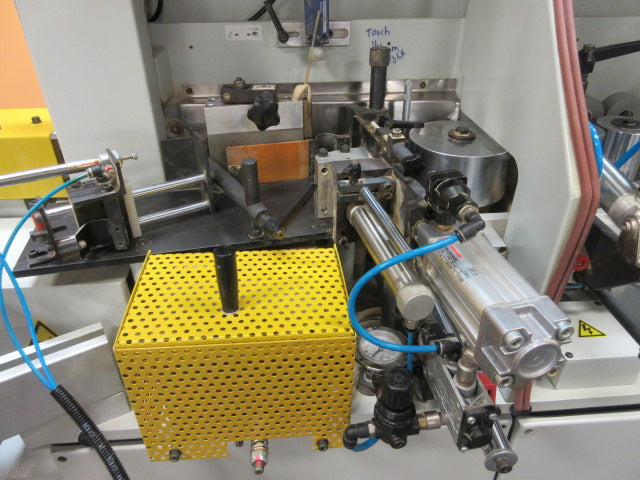

- Shear unit is pneumatic and cuts edgebanding material from .04 to 3mm thick with automatic pull back of edgebanding after cut 3mm tape can be maximum height of 24mm

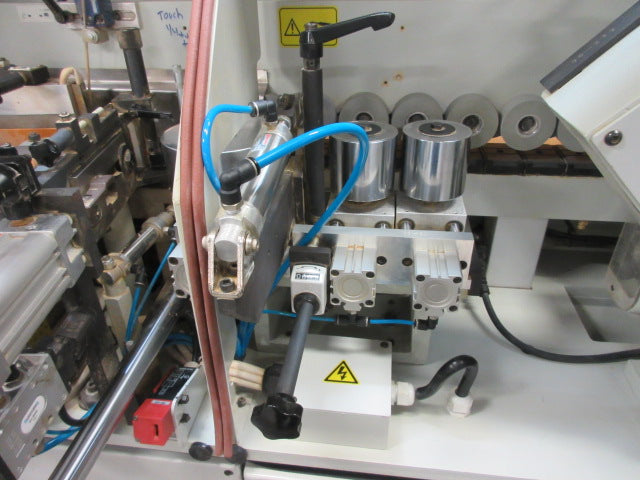

- Side pressure station has three rollers 1 driven and 2 idle with digital adjustment to the edge strip width.

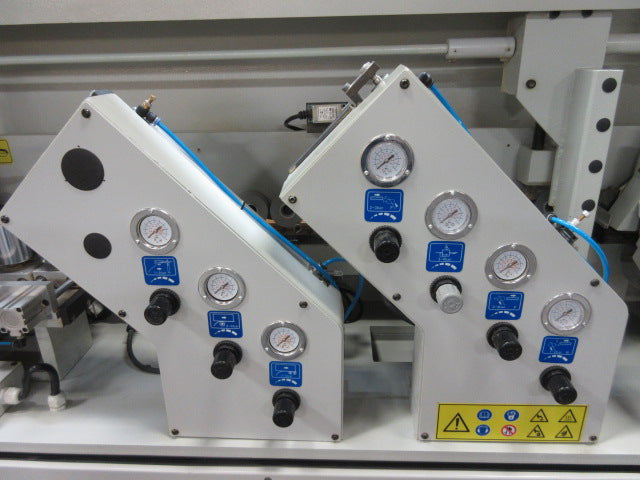

- Separate adjustments for pneumatic roller pressure sections.

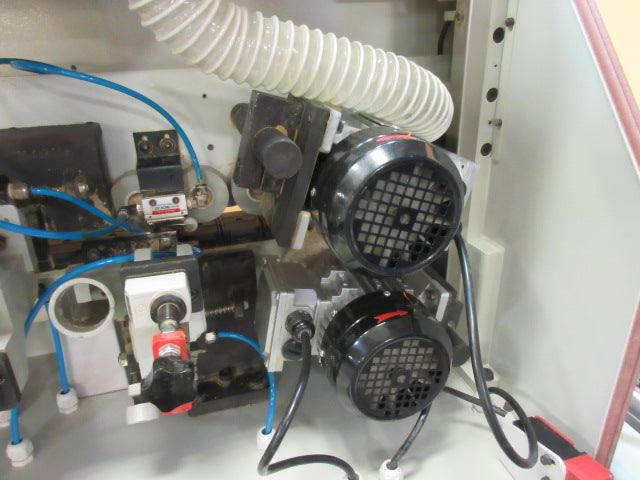

- End Trim Unit has 2 tilting motors (0 to 15 degrees) of 0.5 HP each includes saw blades

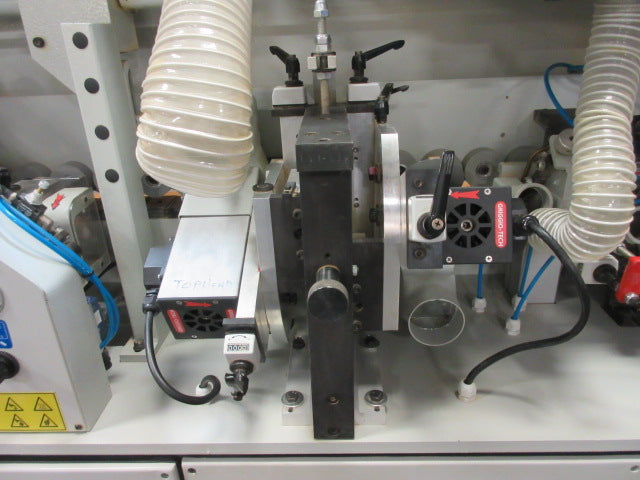

- Top and Bottom Trim Unit has 2 motors 0.75 HP each with fine adjustment and digital readout includes combination radius and flush trim knives with cutterhead
- Scraping Unit with digital readout
- Buffing Unit with (2) 0.25 HP motors and two 6” diameter cloth wheels
- Separate box to collect PVC scrapings
-
Support extension with rollers for wide panels
- Min width of the panel: 3-1/2"
- Min length of the panel: 2-3/8"
- Distance between panels: 26"
- Min/max thickness of the panel: 3/8" to 2-3/8"
- Strip edge thickness: 0.4 to 8 mm
- Automatic loading coil thickness: 0.4 to 3 mm
- Single Feed Speed: 39 ft/min.
- Glue tank capacity: 4 Liter
- Air pressure: 90 PSI
- Noise level: 70 db
- Net weight: 2 930 lbs.
- Dimensions: 13' x 37" (66" wide when support in use)
- Electrical: 25 Amps @ 230 V 3-Phase
- Dust Collection: Minimum 1 200 CFM @ 5000 FPM velocity
- Dust Ports: (4) 3-1/4" diameter Air: 14 CFM @ 90 PSI
