SOLD Used Biesse Edgebander - Model Spark 4.8


Price:
$29,950

Description

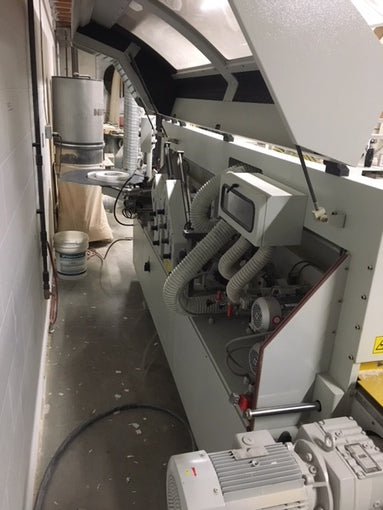

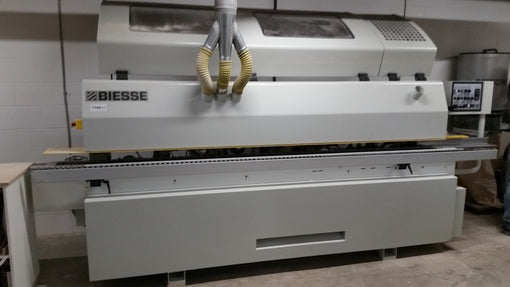

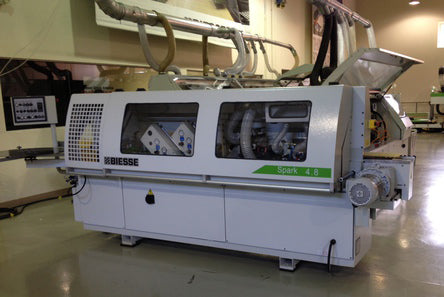

SOLD Used Biesse Edgebander - Model Spark 4.8

This used edgebander manufactured by Biesse features a 2.3" / 60 mm maximum panel thickness.

Technical Specifications:

  • 220-440-600
  • 3PH
  • Easy to use control panel
  • Rolls supporting device dia. 31.5" / 800 mm
  • Top pressure beam with manual adjustment through numerical read-out equipped with rubber wheels
  • Lateral support with conveyor roller for wide panels
  • Heated infeed fence
  • 2.5 Liter Glue tank in Teflon with automatic glue temperature lowering when machine has been idle for a set period of time from 200° to 130°C
  • 2 Pneumatic guillotine units:
    Automatic loader of the edges in strips
    • 1st Shear to cut edges from 0.4 to 1 mm with automatic kickback of the edge
    • 2nd Shear to cut ABS and PVC edges up to 3 mm thick
  • Adjustable edge pressure unit complete with 3 rollers
  • adjustable through digital read-out:
  • 1st motorized roller with separate adjustable pressure system
  • 2nd and 3rd idle roller with separate adjustable pressure system
  • Edge Trimming Unit - 2 motors HF 1 hp (0.75 kW) and micrometric adjustment with numerical read-out
  • Cutters with 3 mm radius with 4 knives
  • Edge Scraping Unit with numerical read-out
  • Brushing Unit - 2 motors 0.25 hp (0.18 kW) with cloth discs dia. 5.9" - 150 mm
  • 1 suction hood dia. 2" / 50 mm
  • 1 suction hood dia. 3.9" / 100 mm
  • Separate box to collect ABS chips
  • Installed Power: 8.2 KW
  • Weight: 2970 lb / 1350 Kg
  • Multi-Tap Transformer
  • Electrics: 220V 480V 575V 3 Phase 60Hz.
  • Dimensions: 144" x 67" x 75" / 3650 x 1700 x 1900
  • CE standards •Min width of the panel 2.3" / 80 mm
  • Min length of the panel 4.7" / 160 mm
  • Max thickness of the panel 2.3" / 60 mm
  • Min thickness of the panel 0.39" / 10 mm
  • Edge dimensions in rolls ABS 0.02" - 0.12" / 0.4 - 3 mm
  • Edge dimensions in strips 0.02 - 0.32" / 0.4 - 8 mm
  • 2 Feed speeds 39-53 ft/min / 12-16 m/min
  • Air pressure 6 bar Photos are for reference only

For additional information and shipping quotes...

Contact Stan at First Choice Industrial
Phone 678.642.9722

Email sales@firstchoiceind.net
